Overview

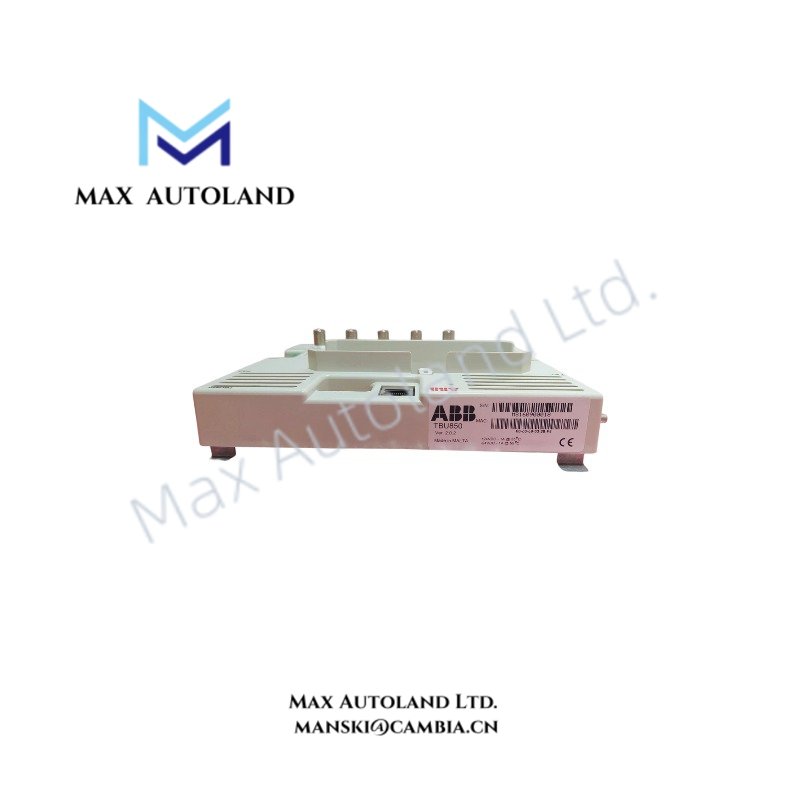

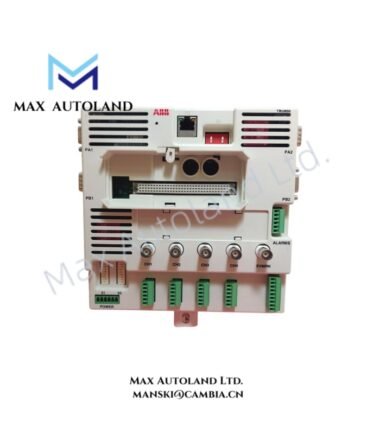

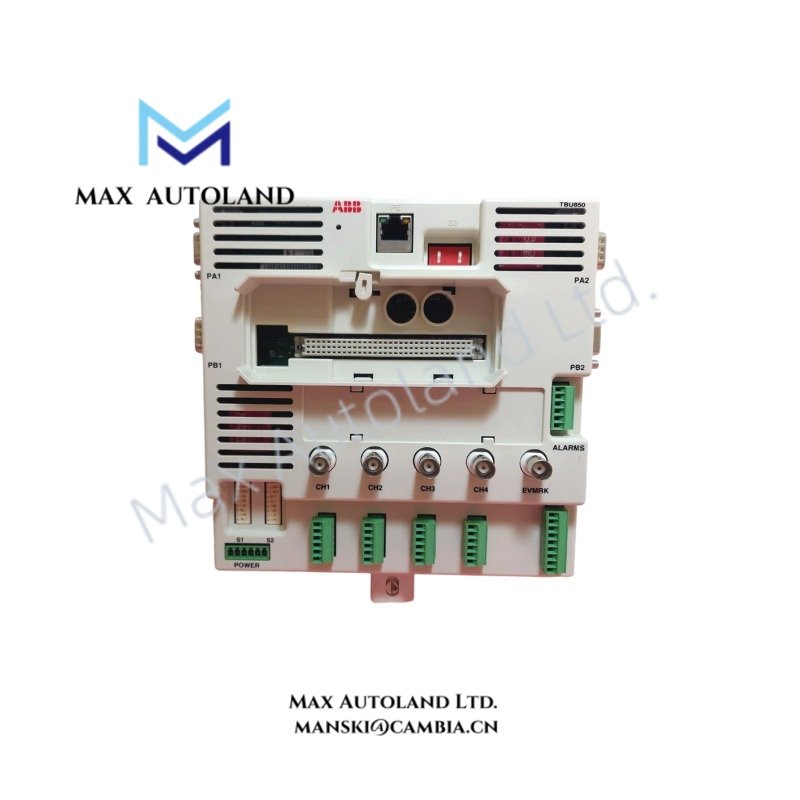

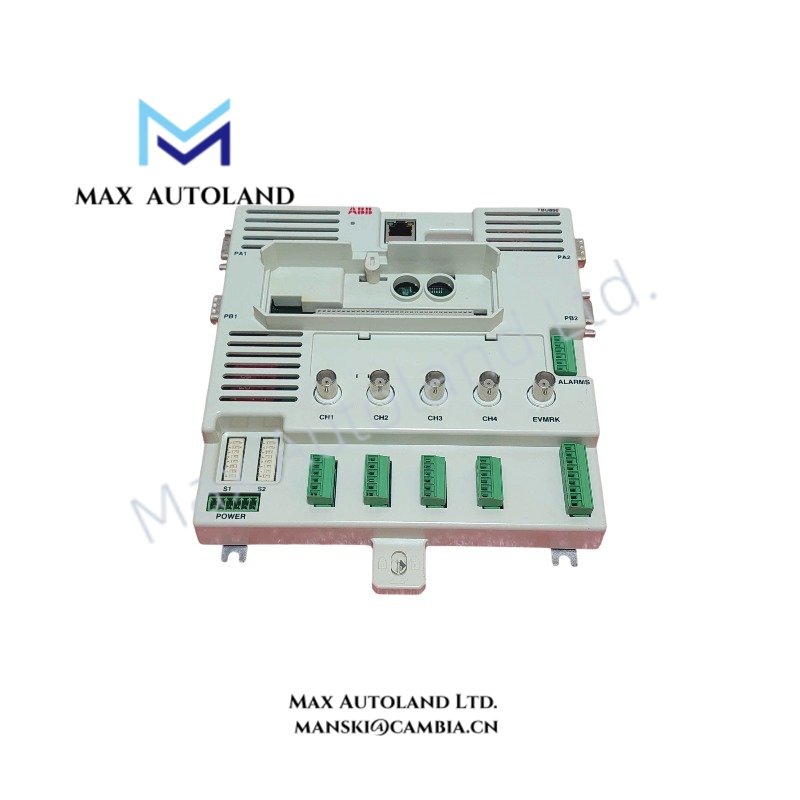

The ABB TBU850, also cataloged as the TBU850 Termination Base Unit, provides direct physical and electrical termination functions for field wiring, power routing, and internal communication connections within the ABB Machinery Condition Monitoring (MCM800) system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ABB TBU850 |
| Brand | ABB |
| Origin | ABB industrial automation product family |
| Product Type | Termination Base Unit |
| System Compatibility | ABB Machinery Condition Monitoring (MCM800) |
| Weight | 1.134 kg |
| Dimensions | 292.1 mm x 254.0 mm x 76.2 mm |
| Battery Type | Lithium button cell, approximately 0.9 g |
| Primary Function | Field termination, signal routing, and interface connection for MCM800 modules |
| Compatible Processing Unit | ABB MPM810 and related MCM800 components |
| WEEE Category | Small Equipment |
ABB MCM800 Termination and Interface Characteristics
The ABB TBU850 provides the physical termination structure required for MCM800 machinery monitoring installations. Therefore, it supports organized connection between field measurement devices and processing modules through defined terminal interfaces.
The unit operates as a passive hardware interface within the monitoring architecture. It does not perform signal processing; instead, it provides electrical routing, module mounting support, and connection access for system wiring.
Additionally, ABB industrial control platforms use structured backplane and module interface designs to maintain consistent I/O density scaling across supported hardware configurations. The TBU850 follows this modular installation approach by providing a dedicated base interface for MCM800 monitoring assemblies.
Frequently Asked Questions
Q: Does the ABB TBU850 perform measurement signal processing?
A: No. The TBU850 functions as a termination and interface unit. Measurement processing is executed by connected MCM800 processing modules such as the MPM810.
Q: Can the TBU850 operate as a standalone monitoring device?
A: No. The unit requires integration with compatible ABB MCM800 system components to provide field connection and module interface functions.
Q: What installation practice applies to TBU850 field wiring?
A: Field wiring should follow standard industrial practices, including proper cable segregation, shield grounding methods, and secure terminal connections.
Field Installation Guidelines
- Install the TBU850 on the designated MCM800 mounting structure according to ABB system installation requirements.
- Verify mechanical alignment before securing the termination base unit to prevent connector stress.
- Route signal cables separately from high-current power cables to reduce electrical interference.
- Connect cable shields according to the site grounding standard and maintain consistent shielding continuity.
- Inspect terminal connections for correct conductor placement before system power application.
- Confirm compatibility between the TBU850, installed processing modules, and connected field devices before commissioning.
