Overview

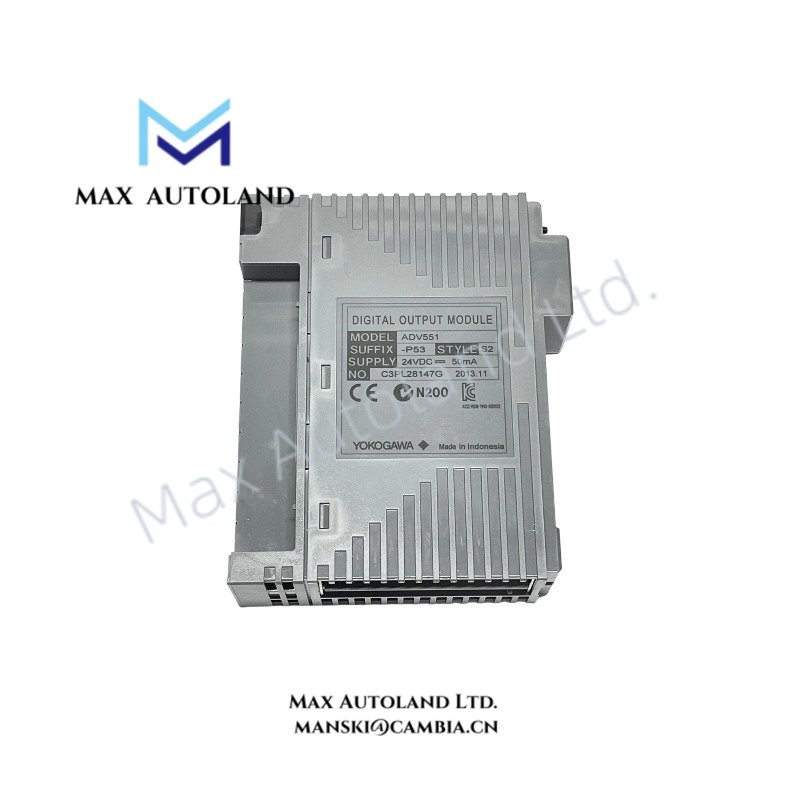

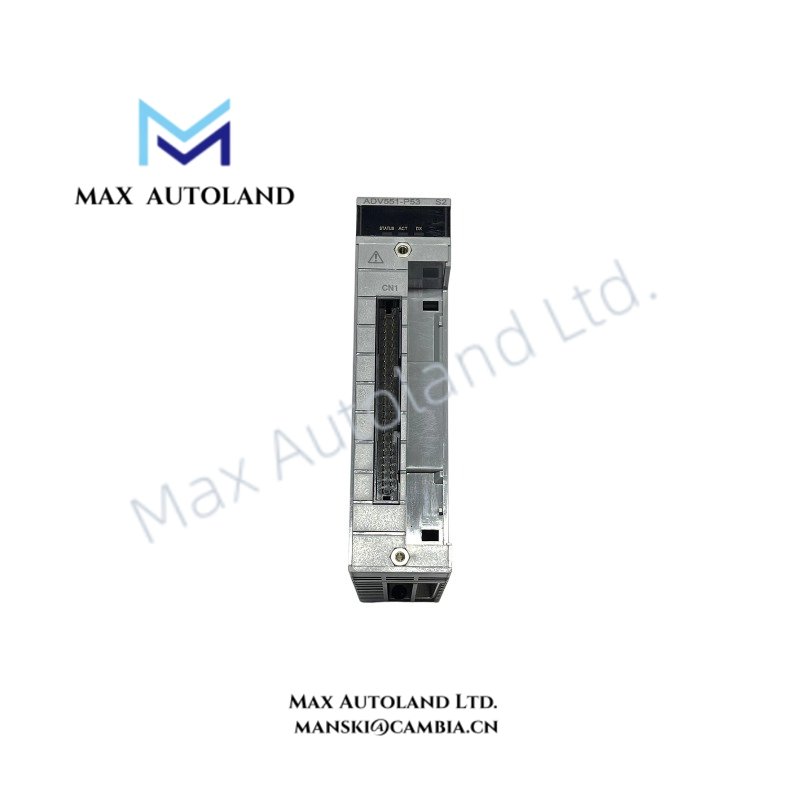

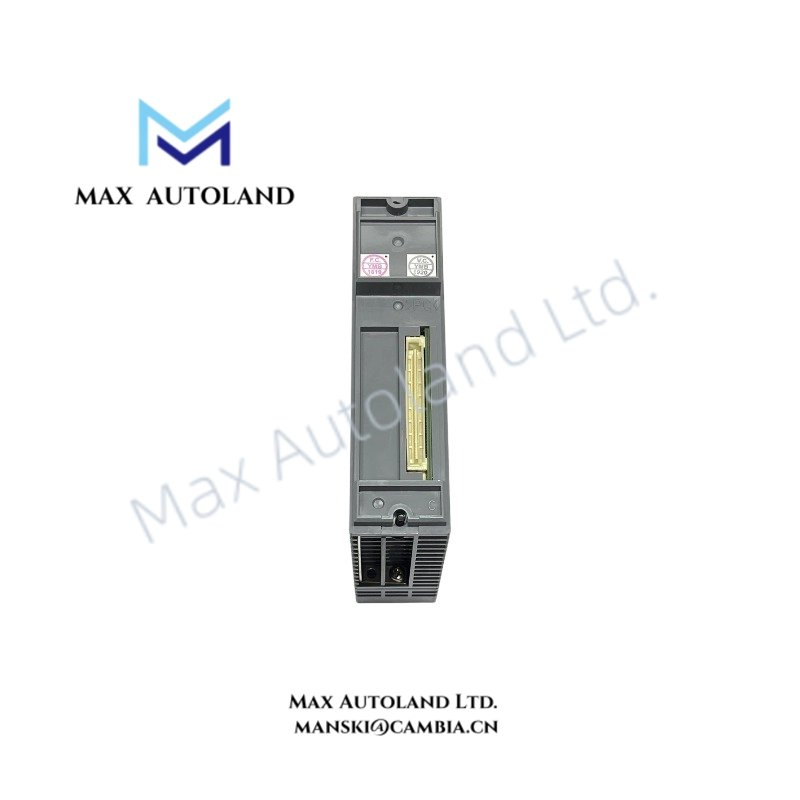

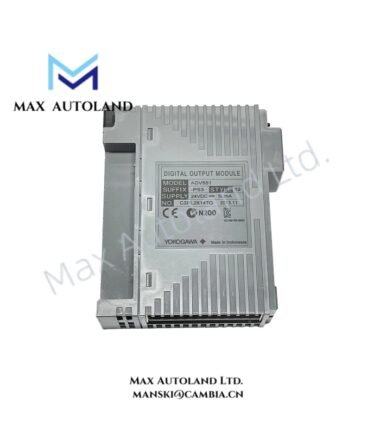

Configured for 32-channel digital signal execution in Yokogawa control systems, the Yokogawa ADV551-P53 (ADV551 Digital Output Module) provides direct electrical output control for 24 VDC current sink applications with pulse width and time-proportioning output functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV551-P53 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Digital Output Module |
| Module Function | 32-channel isolated digital output |
| Output Channels | 32 channels |
| Rated Applied Voltage | 24 VDC |
| Load Voltage | 24 VDC, 50 mA |
| External Power Supply Voltage Range | 20.4 to 26.4 VDC |
| Output Format | Current sink |
| Maximum Load Current | 100 mA/channel at 26.4 VDC |
| Output ON Voltage | Maximum 2 VDC |
| Output OFF Leakage Current | Maximum 0.1 mA |
| Withstanding Voltage | Between output signal and commons: 500 VAC |
| Output Response Time | 3 ms or less for status output |
| Pulse Width Output Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms with ON/OFF delay limitation |
| Status Output Function | ON/OFF status output |
| Pulse Function | One-shot pulse width output |
| Time-Proportioning Output | Time-proportioning ON/OFF output |
| External Connection | Pressure clamp terminal, AKB331 dedicated cable, MIL connector cable |
| Weight | 0.2 kg |
| Power Consumption | Maximum 700 mA at 5 VDC and 60 mA from external power supply |
Yokogawa DCS Digital Output Signal Management
The ADV551-P53 is designed for Yokogawa digital output processing where channel isolation and controlled switching functions are required. The module supports status output, pulse width output, and time-proportioning ON/OFF operation through configurable point modes.
The module provides current sink output architecture with 32 independent output channels. Therefore, it can execute discrete field commands while maintaining defined electrical separation between output signals and common terminals.
The Yokogawa digital module architecture supports process control applications requiring accurate ON/OFF timing behavior. Additionally, the pulse width function allows one-shot output generation from 8 ms to 7200 s, while time-proportioning control supports variable duty cycle operation.
For Yokogawa DCS installations, digital I/O channel-to-channel isolation reduces interference influence between field circuits. Furthermore, proper wiring practices support stable signal transmission in distributed control environments.
Frequently Asked Questions
Q: What output type does the Yokogawa ADV551-P53 provide?
A: The ADV551-P53 provides a 32-channel current sink digital output configuration with 24 VDC rated operation.
Q: Does the ADV551-P53 support pulse and proportional output functions?
A: Yes. The module supports one-shot pulse width output and time-proportioning ON/OFF output functions.
Q: What external connection methods are available for the ADV551-P53?
A: The module supports pressure clamp terminals, AKB331 dedicated cables, and MIL connector cables depending on the selected connection option.
Field Installation Guidelines
Install the ADV551-P53 in the designated Yokogawa I/O mounting location and verify module seating before applying field power.
Use wiring methods compatible with 24 VDC discrete output circuits. Keep output signal wiring separated from high-voltage power cables to reduce electrical noise coupling.
Confirm external power supply polarity before connection. Verify that field loads remain within the specified 100 mA/channel maximum load current.
When using pressure clamp terminals or dedicated cables, tighten connections according to terminal manufacturer requirements. Inspect cable routing to prevent mechanical stress on connectors.
Before commissioning, verify output channel assignment, point mode configuration, and field device response through the Yokogawa control system engineering environment.
