ABB SDCS-PIN-48 3ADT220090R0043 Power Interface Modules

Overview

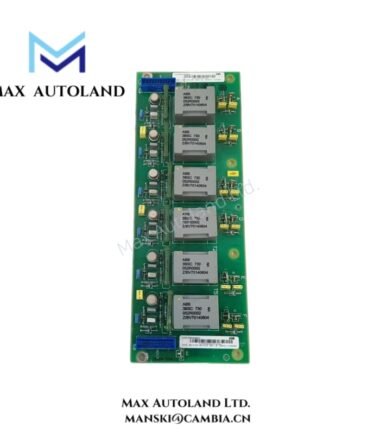

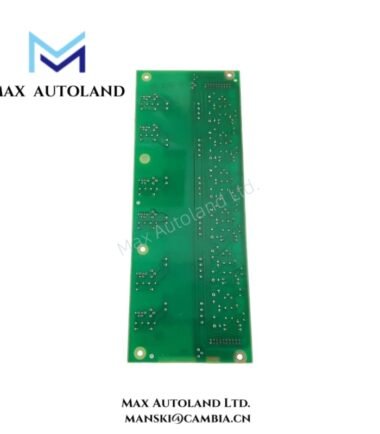

The ABB SDCS-PIN-48 3ADT220090R0043, also cataloged as the SDCS-PIN-48 power interface module, operates as a dedicated hardware component for DC drive power interfacing and internal signal distribution within ABB DCS drive control architectures. It provides regulated interconnection between control electronics and drive power sections through defined terminal-level signal routing.

Moreover, the SDCS-PIN-48 establishes structured electrical coupling between controller logic and power conversion stages. It maintains defined voltage referencing and signal alignment for drive system coordination while ensuring consistent backplane-to-terminal transfer behavior. In addition, the module supports standardized integration into SDCS-based drive cabinets without modification of existing control topology.

Hardware Specifications

ABB Drive Interface Signal Coordination

The SDCS-PIN-48 participates in ABB drive architecture signal structuring by maintaining deterministic routing between control logic and power stage interfaces. ABB drive systems rely on backplane bus communication velocity Licences to synchronize internal control loops with power conversion timing.

Additionally, the module supports firmware flash compatibility alignment across SDCS control generations. It ensures that interface timing remains consistent when mixed control and power modules operate under unified cabinet configurations. Furthermore, I/O density scaling inside the drive system depends on stable interface segmentation provided through this class of modules.

Frequently Asked Questions (FAQ)

Q: Does the SDCS-PIN-48 support hot-swap replacement in an energized drive system?
A: No. The module requires power isolation before removal to avoid disruption of internal drive bus and signal reference paths.

Q: Does the module define fixed communication latency?
A: No fixed latency is defined at module level. Timing depends on SDCS controller cycle execution and internal bus arbitration behavior.

Q: Is firmware stored or executed on the SDCS-PIN-48?
A: No. The module operates as a passive interface element without embedded firmware execution functions.

Field Installation Guidelines

Install the SDCS-PIN-48 inside a compatible ABB SDCS drive cabinet with verified mechanical alignment to the designated connector interface. Ensure full insertion into the backplane mating structure to maintain stable electrical contact across signal and reference terminals.

In addition, maintain continuous protective grounding between cabinet chassis and module mounting structure to reduce potential reference drift across control and power sections. Keep all signal wiring separated from high-current switching conductors to minimize electromagnetic coupling into interface paths.

Furthermore, verify correct slot positioning according to SDCS cabinet layout documentation. Incorrect placement can interrupt internal signal routing between control logic and power interface layers and may prevent proper system initialization.
