Overview
Configured for direct HMI execution in Panel 800 runtime environments, the ABB PP871 3BSE069270R2 (PP871 HMI Panel) provides direct physical/electrical execution for operator visualization, local control input, and industrial communication interface handling across Panel 800 based automation systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | ABB PP871 |
| Origin | Sweden (ABB design responsibility) |
| OperatingTemp | 0 degC to 50 degC |
| StorageTemp | -20 degC to 60 degC |
| PowerConsumption | Max 12 W (typical approx 4.8 W) |
| InputVoltage | 24 VDC (18 to 32 VDC) |
| Display | 4.3 in TFT LCD, 480 x 272 resolution |
| ColorDepth | 16-bit (approx 64000 colors) |
| Processor | ARM9 400 MHz |
| Memory | 128 MB DDR2 RAM, 128 MB NAND Flash |

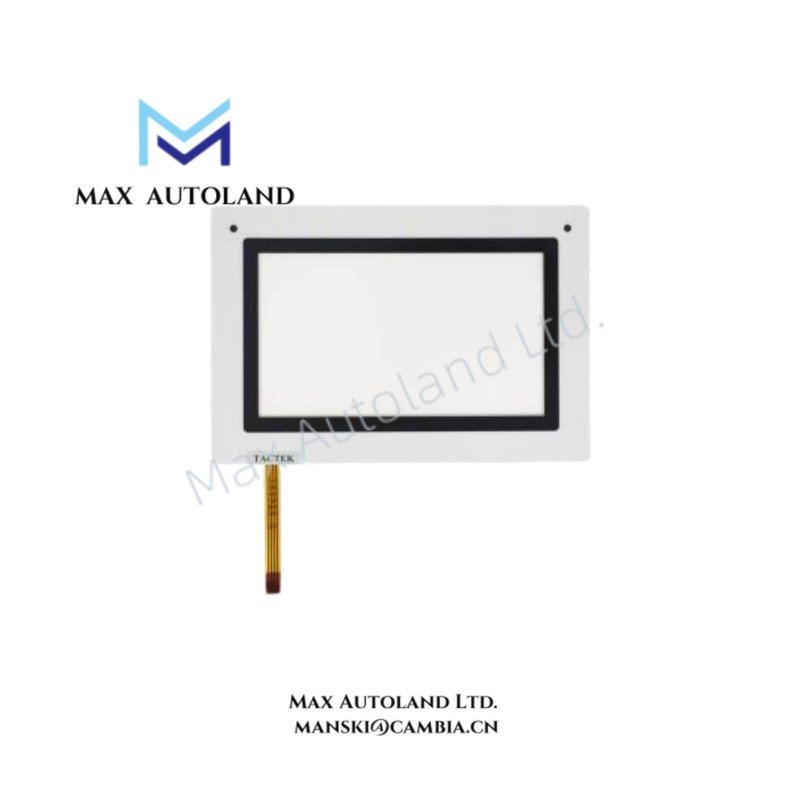

| Touch | Analog resistive touchscreen |
| Ethernet | 1 x 10/100 Base-T RJ45 |
| Serial Interfaces | RS-232, RS-422/RS-485 |
| USB | 1 x USB 2.0 Host |
Industrial Control Communication Characteristics (ABB Platform Integration)
The ABB PP871 operates within ABB Panel 800 communication architecture using deterministic industrial Ethernet and serial routing layers for HMI-to-controller exchange. In ABB control system integration, firmware execution aligns with cyclic scan updates between HMI runtime objects and PLC variable maps, supporting structured data exchange over Ethernet TCP/IP channels.
The internal communication stack supports mixed protocol environments where legacy serial links (RS-485 multidrop) coexist with Ethernet-based control networks. Frame-level buffering is managed through embedded runtime scheduling, minimizing display refresh latency under multi-variable polling conditions. Firmware compatibility is tied to Panel 800 runtime versions, with structured download sequences over USB or network upload channels.
Frequently Asked Questions
Q: Does PP871 support hot-swappable replacement during operation?
A: No. The unit requires controlled power-down before removal. Electrical connectors are not designed for live insertion.
Q: What is the Ethernet communication behavior under PLC cyclic load?
A: Ethernet communication operates in cyclic polling mode with buffered variable updates. Performance depends on controller scan rate and network congestion.
Q: Can firmware be upgraded via USB interface?
A: Yes. Firmware and project deployment can be executed through USB 2.0 host port using Panel 800 compatible update packages.
Field Installation Guidelines
The PP871 must be mounted in a panel cutout with IP65-rated front sealing maintained through correct gasket compression. Rear wiring shall be segregated between power (24 VDC) and communication lines to reduce electromagnetic coupling.
RS-485 networks require proper termination resistors at both bus ends. Shielded twisted pair cable with single-point grounding is recommended to avoid ground loop current in industrial environments.
Ethernet cabling shall comply with CAT5e or higher standard, with separation from high-voltage switching lines to maintain signal integrity. Power input should include upstream fuse protection aligned with 3.15 A time-lag specification.
