Overview

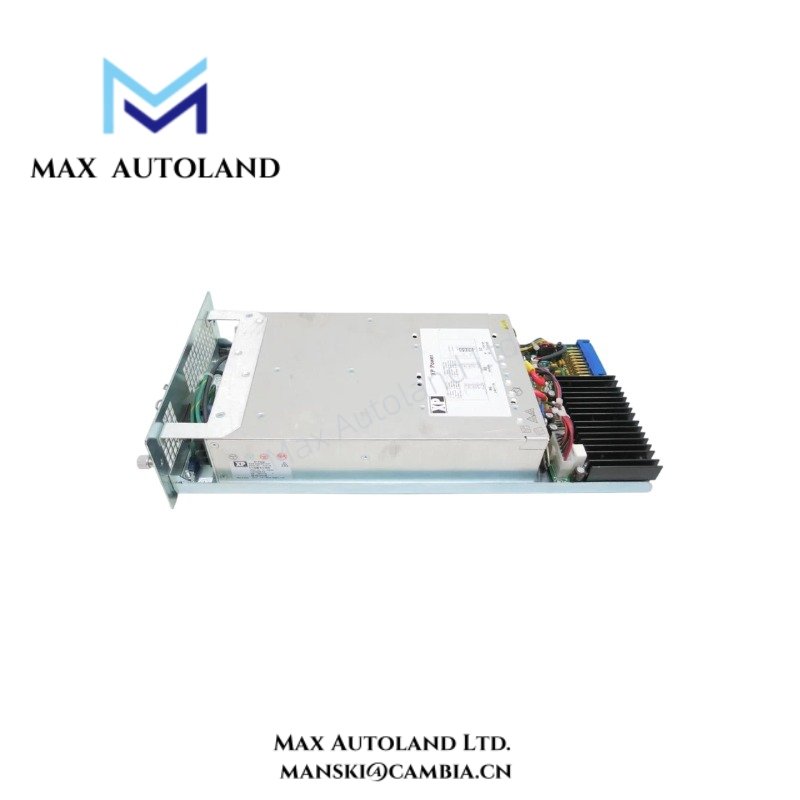

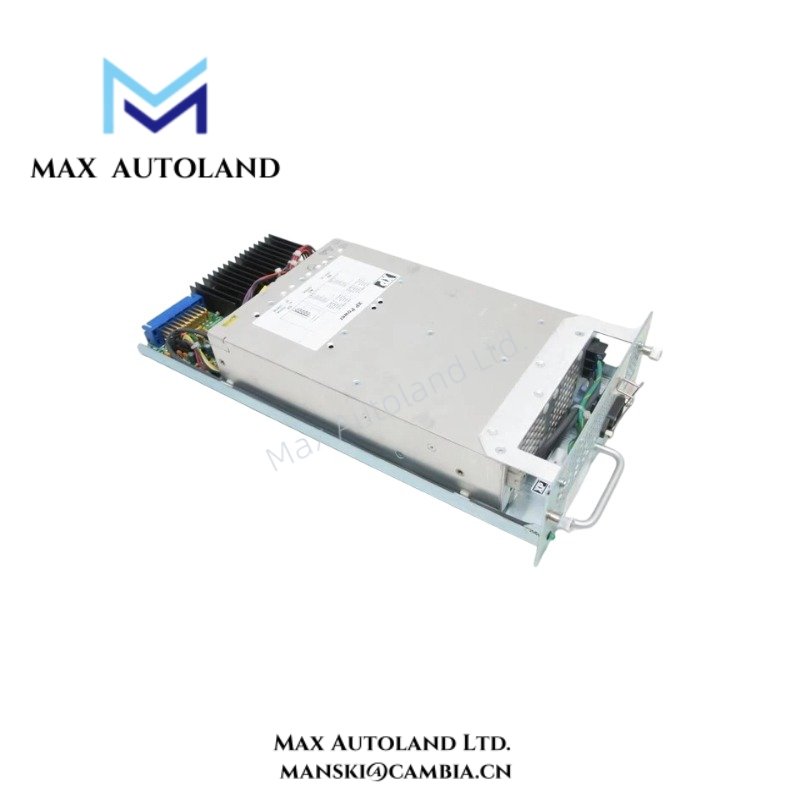

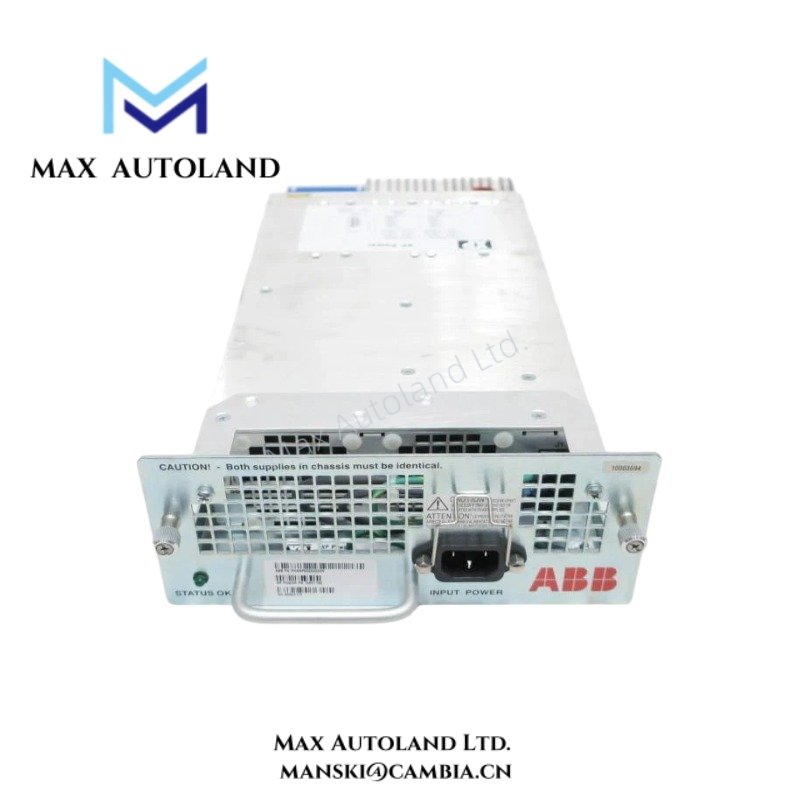

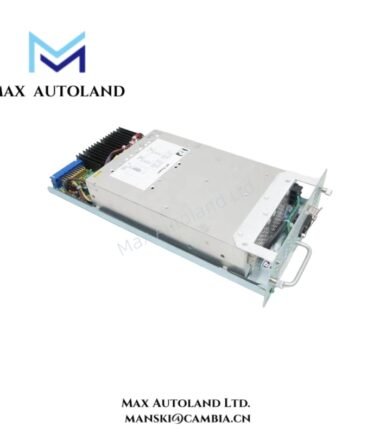

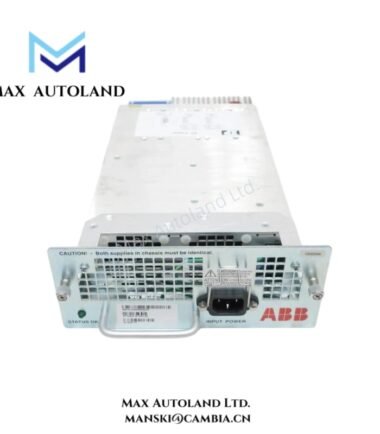

Configured for supplying regulated rack power in ABB Harmony control architecture, the ABB PHARPS32000000 (PHARPS32000000 Rack Power System) provides direct electrical execution. The module distributes operating power to installed Harmony rack components through the system backplane while maintaining coordinated interaction with controller-managed power supervision functions.
Suffix Breakdown & Model Matrix
The supplied documentation identifies PHARPS32000000 as a fixed catalog number. No official suffix matrix or variant breakdown is defined in the referenced material.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PHARPS32000000 |
| Brand | ABB |
| Product Type | Rack Power Systems |
| Platform | ABB Harmony System |
| Function | Rack power distribution and supply |
| Installation | Rack-mounted |
| Backplane Interface | Harmony system backplane |
| Firmware Management | Host system controlled |
| Weight | Not specified in available documentation |
| Dimensions | Not specified in available documentation |
| Operating Temp | Not specified in available documentation |
| Power Consumption | Not specified in available documentation |
| Communication Method | Internal backplane communication |
| Configuration | System-level configuration through host controller |
Firmware Flash Compatibility
The PHARPS32000000 operates within the Harmony backplane architecture and exchanges operational status through deterministic internal bus mechanisms. Furthermore, the controller manages system coordination and supervises power-related status information across connected modules.
Firmware handling remains centralized at the controller and system software level. Therefore, the power system follows configuration parameters and compatibility requirements defined by the installed Harmony or 800xA software environment rather than executing independent firmware functions.
In addition, controller scan timing governs internal synchronization. As a result, connected modules receive consistent power supervision and coordinated status propagation across the rack infrastructure.
Frequently Asked Questions
Q: Does the PHARPS32000000 support hot-swap replacement?
A: Available ABB documentation does not explicitly define hot-swap capability. Therefore, maintenance personnel should follow approved system shutdown and isolation procedures before replacement activities.
Q: Does the PHARPS32000000 contain standalone firmware storage?
A: No documentation describes independent firmware storage within the unit. Instead, the host controller and associated system software manage firmware execution and configuration functions.
Q: How does the unit interact with the system backplane?
A: The module connects directly to the Harmony rack backplane and participates in controller-coordinated system operation through internal rack infrastructure.
Field Installation Guidelines
Verify the designated rack position before installation and confirm compatibility with the configured Harmony rack assembly.
Align the module carefully with the backplane connector during insertion. Additionally, avoid excessive mechanical force that could damage connector contacts or guide hardware.
Apply standard ESD protection measures throughout handling and installation procedures. Moreover, follow plant lockout and power-isolation practices unless ABB documentation specifically permits energized maintenance.
Route power and signal conductors separately whenever possible. Consequently, electromagnetic coupling between adjacent wiring paths remains minimized.
Terminate cable shields according to cabinet grounding requirements and maintain continuity with established grounding practices.
After installation, verify module recognition through system diagnostics. Finally, confirm correct rack operation and record module identification data for future maintenance traceability.
