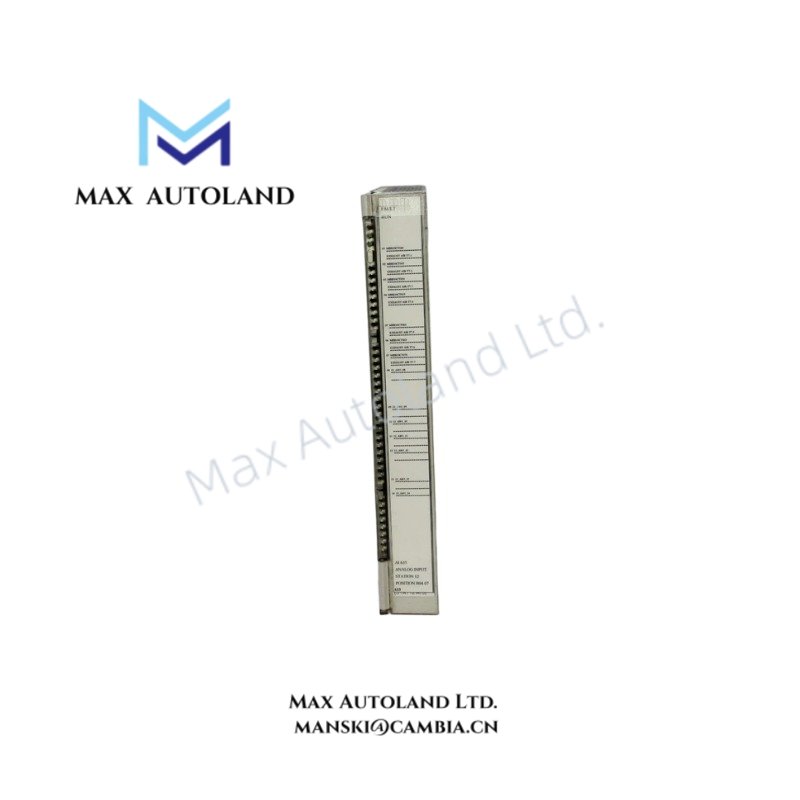

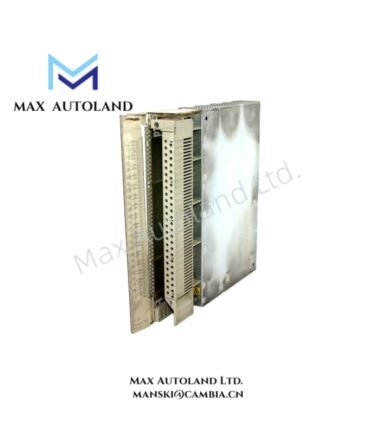

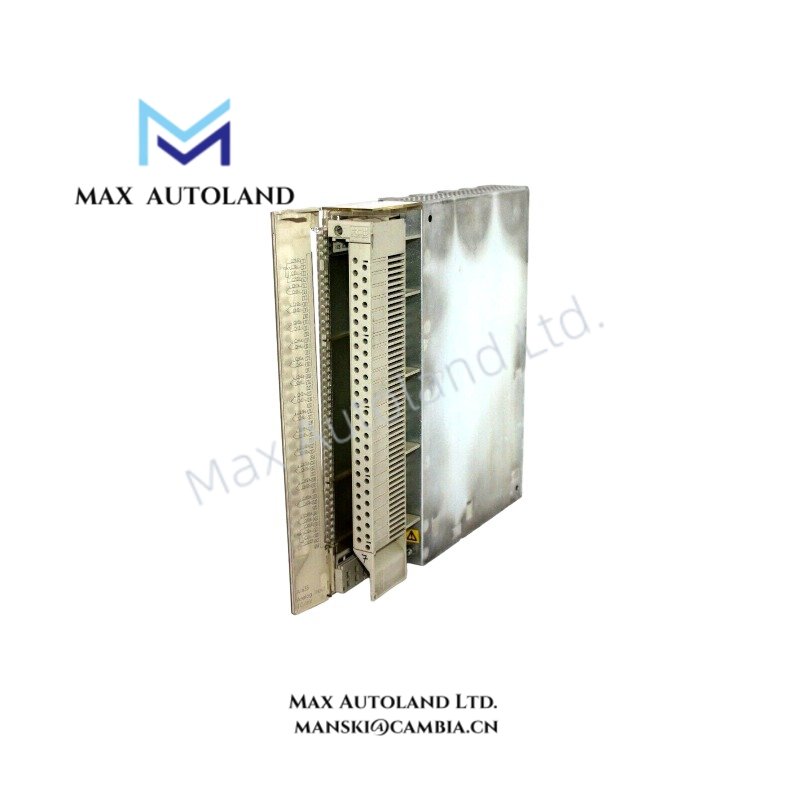

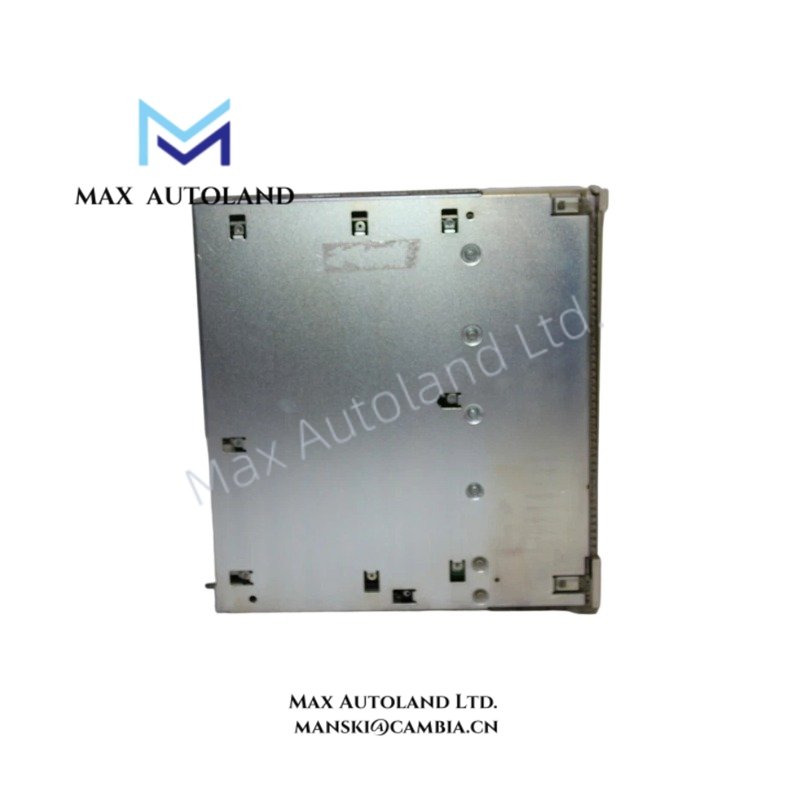

ABB Advant OCS AI635 Analog Input Module

Overview

Configured for multi-channel analog current acquisition in PLC/DCS signal conditioning systems, the ABB AI635 (3BHT300032R1 Analog Input Module) provides direct physical/electrical execution. The module performs 16-channel current input sampling with 12-bit resolution for 4-20 mA loop signals, converting field analog currents into digital values for backplane transmission within ABB automation hardware architectures.

Suffix Breakdown & Model Matrix

• AI635: Analog Input Module series identifier for current signal acquisition
• 3BHT300032R1: Spare / ordering designation for hardware traceability
  No further structured suffix segmentation is defined in provided documentation.

Hardware Specifications

Backplane Communication and Firmware Handling Characteristics

The ABB AI635 integrates into ABB PLC/DCS backplane architectures where deterministic cyclic data exchange governs input sampling latency. Channel scan data is digitized at 12-bit resolution and transferred via internal system bus interfaces, with firmware compatibility bound to controller rack generation. Backplane throughput and module synchronization are dependent on rack communication scheduling and I/O scan cycle configuration. Firmware flashing must match controller family revision to maintain module-to-CPU data alignment and avoid I/O mapping inconsistencies.

Frequently Asked Questions

Q: Does the AI635 support hot-swap insertion under live backplane power conditions?
A: The module is typically designed for rack-based installation; hot-swap capability depends on the host ABB rack system and backplane architecture. Electrical insertion under energized conditions is not universally supported.

Q: What is the effect of 12-bit resolution on signal scaling accuracy for 4-20 mA loops?
A: 12-bit conversion yields 4096 discrete counts across the input range, defining quantization granularity for current loop measurement within the module’s ADC stage.

Q: How is channel isolation handled across the 16 inputs?
A: Channel architecture is implemented according to ABB internal multiplexing and input conditioning design; isolation behavior depends on rack-level grounding and module revision.

Field Installation Guidelines

The AI635 module shall be installed in a de-energized ABB compatible I/O rack. Ensure correct alignment with backplane connectors prior to insertion. Shielded twisted-pair wiring is recommended for 4-20 mA loop inputs, with shield termination performed at a single-point earth ground to minimize loop noise coupling. Maintain separation between analog signal cabling and high-voltage conductors to reduce electromagnetic interference. Verify terminal tightness and ensure proper module seating before system power-up. Avoid bending stress on backplane connectors during installation or removal.
