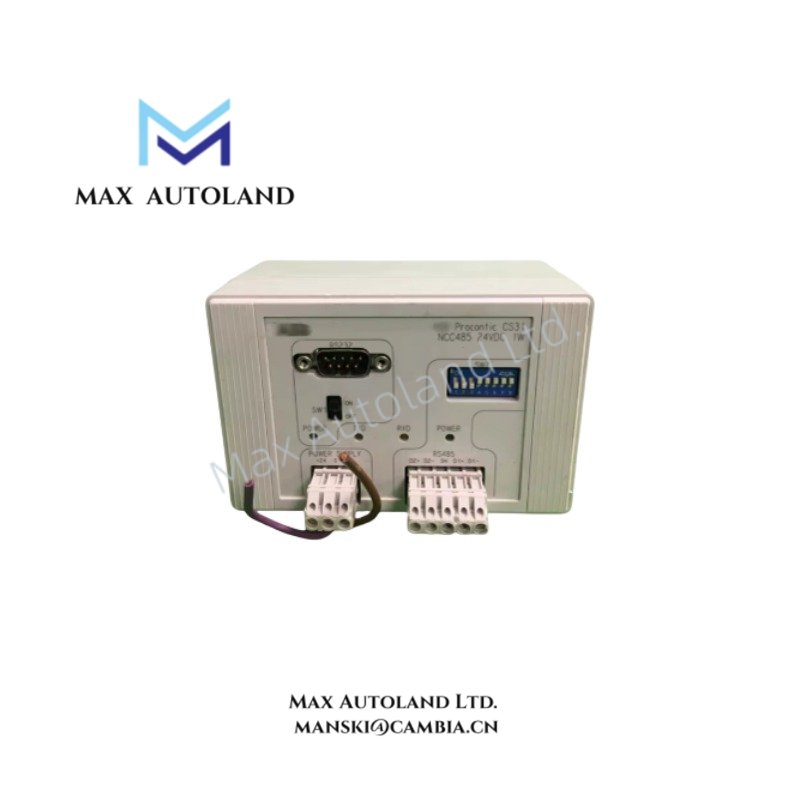

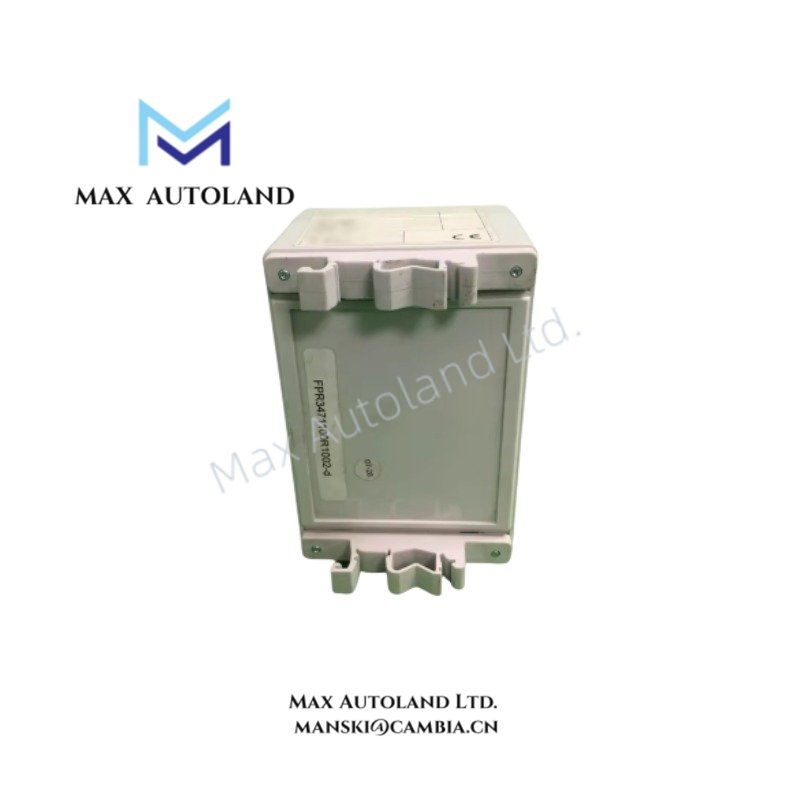

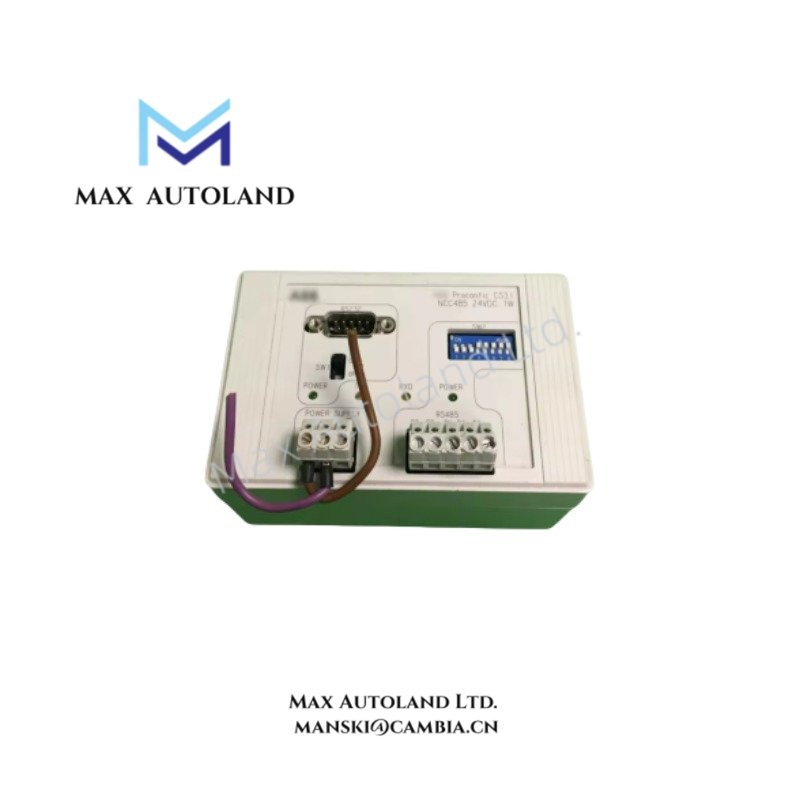

ABB FPR3471100R1002 CS31 NCC485 Communication Coupler Module

Overview

Configured for CS31 system bus signal exchange in AC31 automation networks,the ABB FPR3471100R1002(CS31 NCC485communication module) provides direct physical/electrical execution for RS-485 based backplane-to-fieldbus interfacing within ABB distributed control architectures.

The unit operates as a CS31 bus communication coupler designed to link central controller backplane communication channels with distributed I/O nodes over an RS-485 differential signaling layer. Electrical execution is handled through deterministic cyclic data exchange across the CS31 fieldbus, enabling synchronized process data mapping between controller and remote modules. The compact hardware form factor supports cabinet-level mounting with direct integration into ABB AC31 platform racks. Internal signal handling is optimized for low-latency bus arbitration and structured telegram exchange under fixed scan-cycle execution.

Hardware Specifications

PLC Backplane Communication and CS31 Bus Execution Profile

The module implements ABB AC31-class backplane bus communication sequencing with cyclic deterministic transfer behavior between CPU rack and distributed field nodes. Data exchange is executed via structured CS31 telegram frames over RS-485 physical signaling, with timing governed by controller scan-cycle synchronization. Signal integrity is maintained through differential pair transmission, reducing susceptibility to common-mode industrial noise and cross-channel coupling within cabinet environments. Firmware-level compatibility is tied to AC31 system communication stacks, with bus arbitration handled at controller-master level rather than device-level contention logic.

Frequently Asked Questions

Q: Does the FPR3471100R1002 support hot-swap insertion during system operation?
A: No hot-swap behavior is defined for this module. Installation or removal requires controller power isolation to prevent CS31 bus state corruption.

Q: What is the backplane communication load behavior under full node utilization?
A: Bus load is determined by CS31 cyclic polling structure. All data exchange is scan-cycle bound and does not support asynchronous bursting.

Q: Can firmware updates be performed independently on the NCC485 module?
A: No standalone firmware layer is documented for field upgrade. Compatibility is managed at AC31 controller system level.

Field Installation Guidelines

Power isolation of the AC31 rack must be performed before module insertion or removal. RS-485 CS31 bus cabling must use twisted pair conductors with controlled impedance routing. Shield termination should be executed at a single cabinet ground point to avoid ground loop circulation. Maintain separation between communication lines and high-voltage switching conductors to reduce electromagnetic coupling. Ensure connector seating alignment before mechanical fastening to avoid backplane pin stress or partial engagement.
