Overview

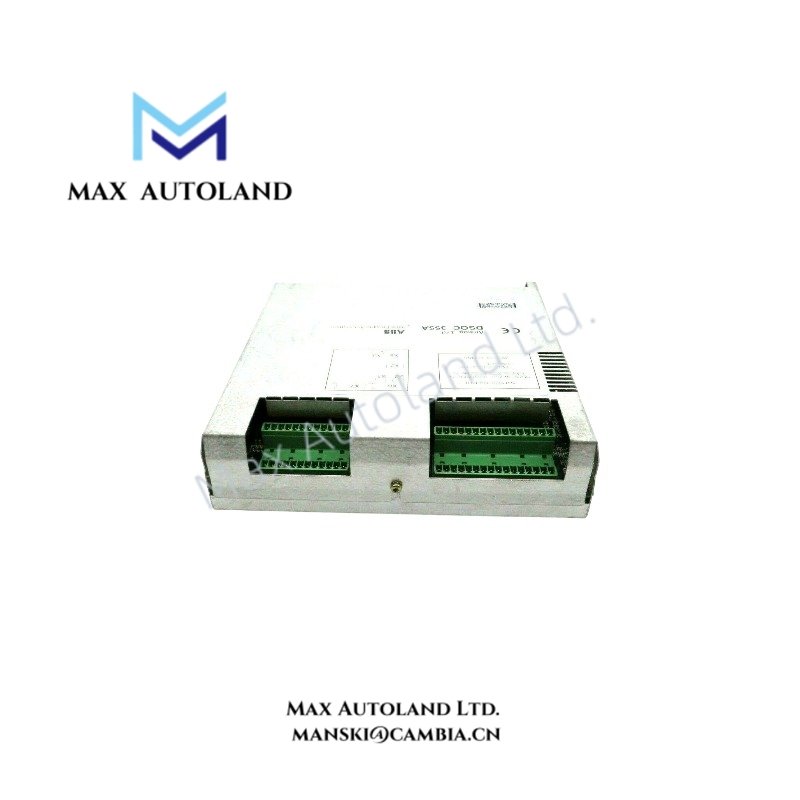

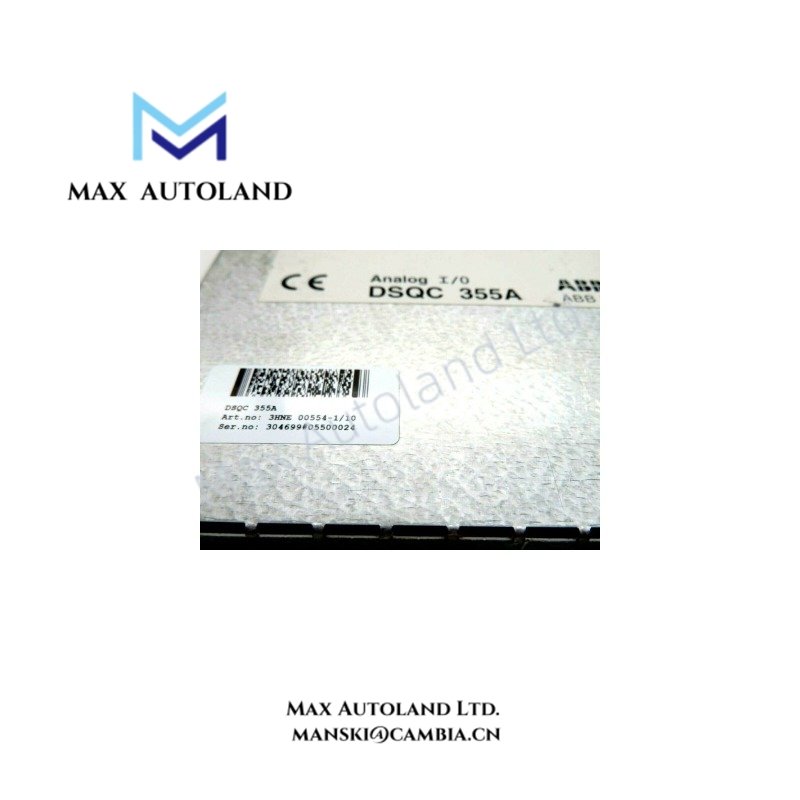

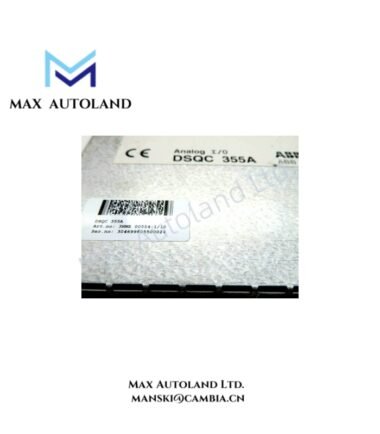

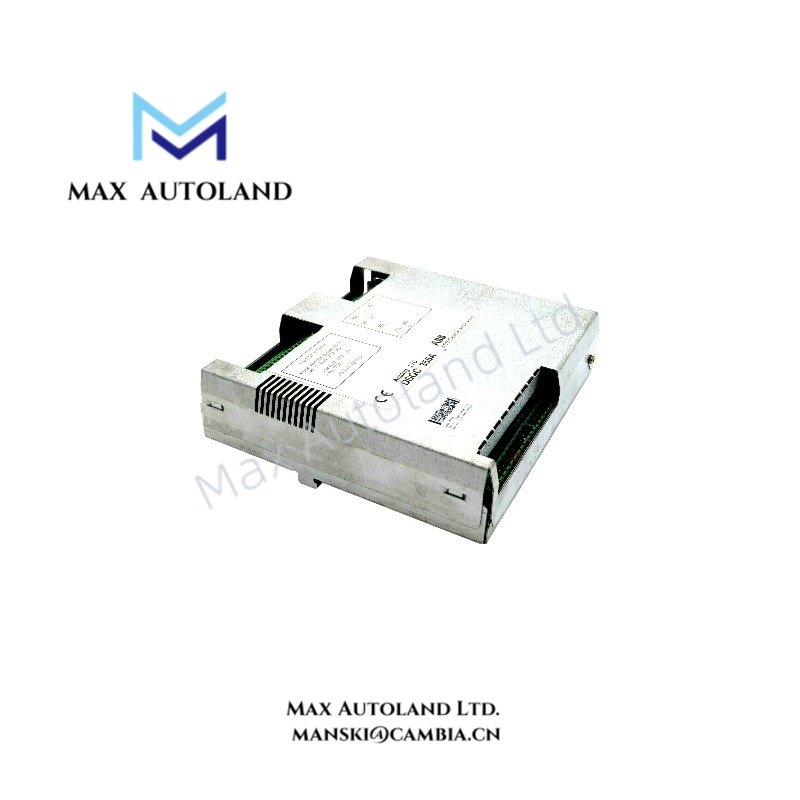

ABB DSQC355A Analog Input/Output Module
The ABB DSQC355A, also cataloged as the DSQC355A Analog Input/Output Module, operates as a dedicated hardware component for analog signal processing within ABB S4, S4C, and S4C+ robot controller platforms. The module converts continuous voltage or current signals between field devices and the robot control system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC355A |
| Brand | ABB |
| Origin | Sweden / Switzerland |
| Weight | Approx. 0.1 kg |
| Dimensions | Approx. 2.2 cm x 12.4 cm x 12.6 cm |
| Module Type | Analog Input/Output Module |
| Controller Compatibility | ABB S4 / S4C / S4C+ Robot Controllers |
| Signal Type | Analog voltage/current signals |
| Typical Signal Range | 0-10 V and 4-20 mA |
| Installation Method | Plug-in I/O board installation |
| Application Function | Analog sensor monitoring and actuator control |
ABB Industrial Control Interface and I/O Integration
The ABB DSQC355A provides analog signal conversion between field devices and ABB robot controller processors. It receives continuous signals from external sensors and converts them into digital values for controller processing. In addition, the module converts controller output commands into analog signals for connected industrial equipment.
Furthermore, the DSQC355A supports I/O density scaling within ABB S4 generation controller architectures. The module communicates through the controller backplane interface and maintains signal exchange between the robot CPU and peripheral devices. Proper firmware compatibility between the controller system and installed I/O hardware is required for correct operation.
The module design includes circuit protection features that reduce the influence of electrical noise, voltage fluctuation, and ground loop interference. Therefore, installation requires correct shielding and grounding practices to maintain analog measurement accuracy.
Frequently Asked Questions
Q: What type of signals does the ABB DSQC355A process?
A: The ABB DSQC355A processes continuous analog input and output signals, including standard industrial voltage and current signal ranges such as 0-10 V and 4-20 mA.
Q: Can the DSQC355A operate independently from an ABB robot controller?
A: No. The DSQC355A functions as an integrated I/O board and requires installation within compatible ABB S4, S4C, or S4C+ robot controller hardware.
Q: Does the DSQC355A support direct connection to digital sensors?
A: No. The module is designed for analog signal handling. Digital sensors require compatible digital I/O modules within the controller system.
Field Installation Guidelines
- Install the ABB DSQC355A in the designated controller I/O rack or backplane slot according to the ABB controller hardware configuration.
- Verify controller power isolation before inserting or removing the module from the rack.
- Connect analog field wiring using appropriate shielded cables to reduce electromagnetic interference.
- Ground cable shields according to the robot controller installation manual and site electrical standards.
- Separate analog signal cables from high-current motor power cables to reduce induced electrical noise.
- Confirm connector seating and mechanical locking before restoring controller power.
- Verify analog signal scaling parameters in the robot controller software after installation.
