Overview

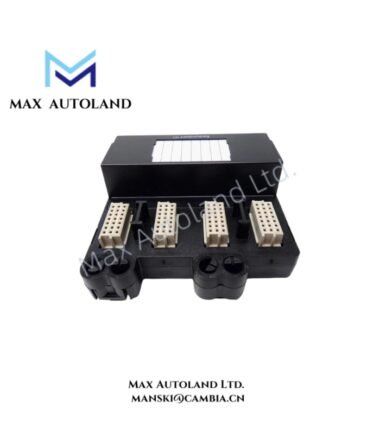

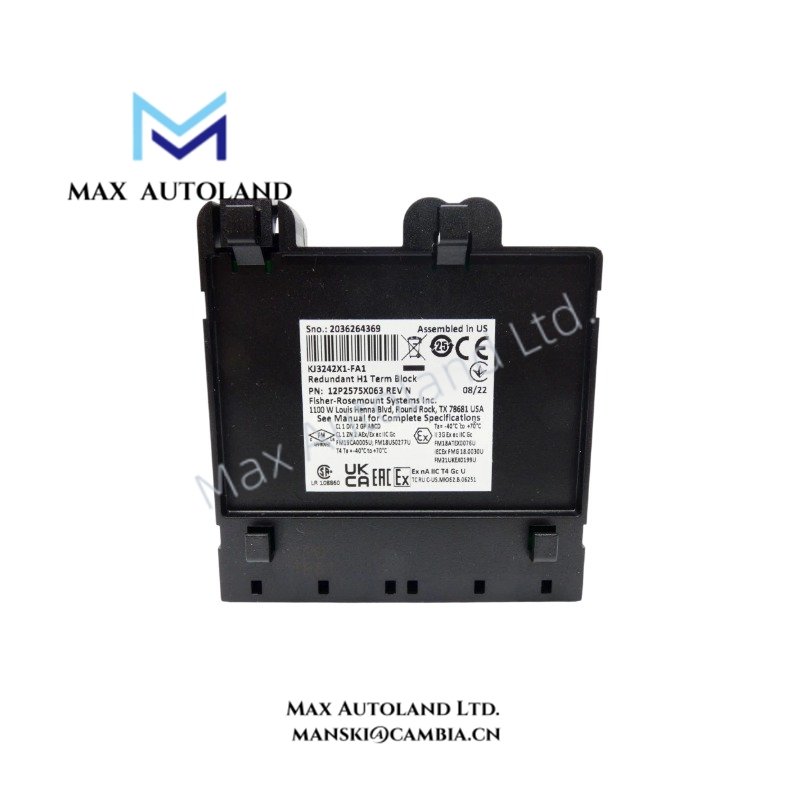

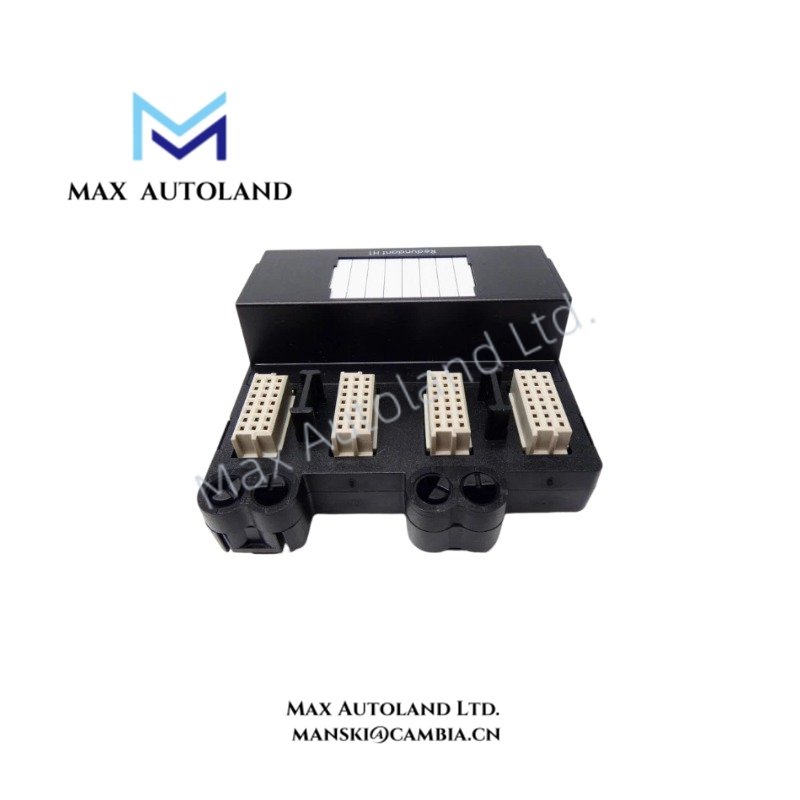

Configured for redundant FOUNDATION Fieldbus H1 signal termination in the DeltaV system network, the Emerson KJ3242X1-FA1 (KJ3242X1-FA1 Redundant H1 Terminal Block) provides direct physical and electrical connection management for fieldbus communication channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3242X1-FA1 |
| Brand | Emerson |
| Product Type | Redundant H1 Terminal Block |
| System Platform | Emerson DeltaV FOUNDATION Fieldbus H1 Network |
| Origin | USA |
| Weight | 0.2 kg |
| Dimensions | 4.2 x 12.5 x 10.4 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Input power rating: 35 VDC at 500 mA |
| Airborne Contaminants | ISA-S71.04-1985 Airborne Contaminants Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Tariff Code | 8537101190 |
| Shipment Location | Xiamen, China |
FOUNDATION Fieldbus H1 Network Interface Characteristics
The KJ3242X1-FA1 operates as a redundant H1 terminal connection component within Emerson DeltaV FOUNDATION Fieldbus architectures. It manages the physical termination path for H1 communication wiring and supports redundant fieldbus segment configurations.
Additionally, the terminal block maintains signal connection integrity through controlled field wiring interfaces. The design supports process control applications that require FOUNDATION Fieldbus connectivity, including digital field device communication and distributed instrumentation networks.
The module supports Emerson DCS installation practices where fieldbus segments require organized termination, cable routing, and channel separation. Furthermore, the component accommodates industrial environmental conditions through defined shock, vibration, humidity, and airborne contaminant specifications.
Frequently Asked Questions
Q: What communication protocol does the KJ3242X1-FA1 support?
A: The KJ3242X1-FA1 supports FOUNDATION Fieldbus H1 network termination and connection functions within Emerson DeltaV system configurations.
Q: Does the KJ3242X1-FA1 provide independent power conversion functions?
A: No. The unit functions as a redundant H1 terminal block and does not operate as a standalone power supply module.
Q: What environmental conditions are specified for this terminal block?
A: The module operates from -40 deg C to +70 deg C and supports 5 to 95% relative humidity without condensation. It also meets ISA-S71.04-1985 Class G3 airborne contaminant requirements.
Field Installation Guidelines
- Install the KJ3242X1-FA1 inside the designated DeltaV system cabinet or approved field termination assembly.
- Verify terminal assignments before connecting FOUNDATION Fieldbus H1 wiring.
- Separate fieldbus signal cables from high-voltage power conductors to reduce electromagnetic interference.
- Connect cable shields according to the system grounding design and maintain proper shield continuity.
- Confirm redundant H1 wiring paths before commissioning the fieldbus segment.
- Inspect terminal connections for correct torque and secure mechanical retention.
- Verify environmental conditions remain within the specified temperature, humidity, shock, and vibration limits before operation.
