Overview

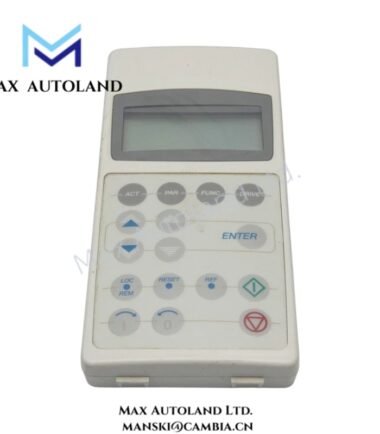

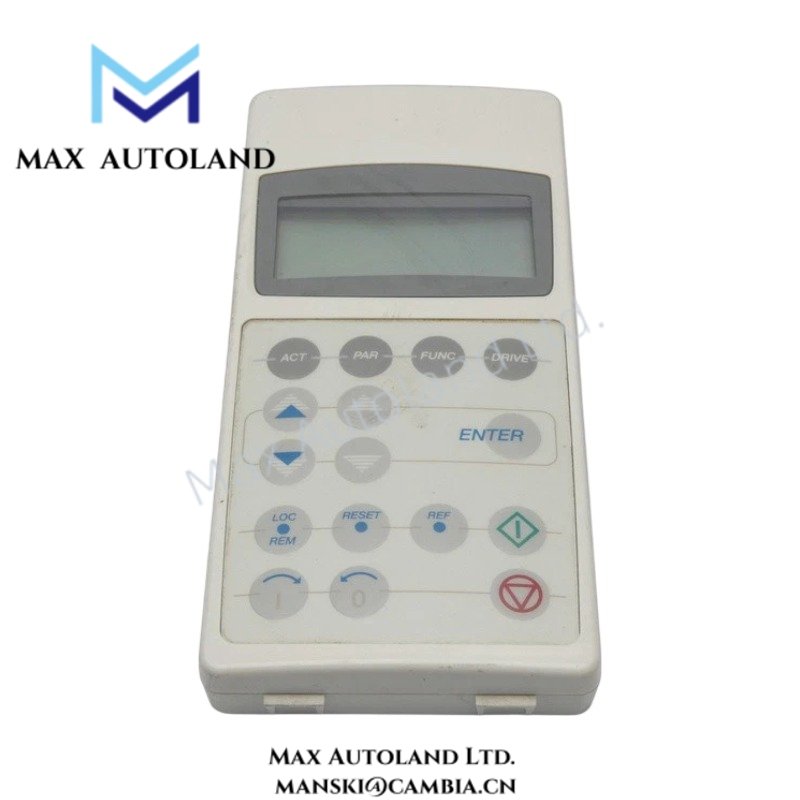

The ABB CDP312R (CDP312R operator panel / HMI keypad) is designed specifically for the ABB ACS800 drive platform and compatible ABB drive systems. It is used for drive parameterization, monitoring, and local control. The panel provides a direct physical and electrical human–machine interface (HMI) for interacting with the drive system. Through integration with the ABB drive communication channel, it functions as a local interface unit for parameter entry, status monitoring, and fault code retrieval. It also serves as a front-panel control device for commissioning and runtime interaction with the inverter firmware register system.
Hardware Specifications
| Item | Specification |
|---|---|
| Model / Brand | ABB CDP312R |
| Operating Temperature | -20°C to +60°C (typical industrial range) |
| Power Consumption | Low-power HMI module powered via drive |
| Display | LCD, 4 × 20 character format |
| Interface | Keypad-based navigation interface |
| Communication | ABB drive communication interface (ACS800 compatible) |
| Control Functions | Start/Stop, parameter editing, diagnostics access |
Backplane Bus Communication and Firmware Synchronization Behavior
In the ABB industrial drive architecture, the CDP312R interfaces via a deterministic internal drive communication channel connected to the control board backplane. Parameter read/write cycles are synchronized with the drive firmware execution tasks, ensuring consistent mapping between HMI input events and ACS800 control logic registers.
Firmware compatibility depends on the drive application version. A mismatch may limit parameter visibility or restrict access to portions of the menu tree. Communication latency is determined by the internal drive scan cycle rather than external network jitter.
Frequently Asked Questions (FAQ)
Q: Can the CDP312R be hot-swapped while the drive is running?
A: The control panel is not designed for hot-swapping under powered communication conditions. Disconnecting or inserting the panel during parameter exchange may interrupt the control interface mapping.
Q: Does the CDP312R store drive parameters independently?
A: No. Parameters are stored in the drive control board memory. The panel acts only as an interface terminal.
Q: Is firmware compatibility required between the control panel and the drive?
A: Yes. Menu structure and parameter visibility depend on compatibility between the ABB drive firmware versions.
Field Installation Guidelines
The CDP312R should be installed using approved mounting brackets on a cabinet door or designated operator panel cutout. Communication cabling must be routed separately from power cables to minimize electromagnetic coupling into the drive control circuitry. Shield termination should only be grounded at the drive end to avoid ground loop currents. Ensure the connector is fully seated to maintain stable communication with the ACS800 control interface during operation.
