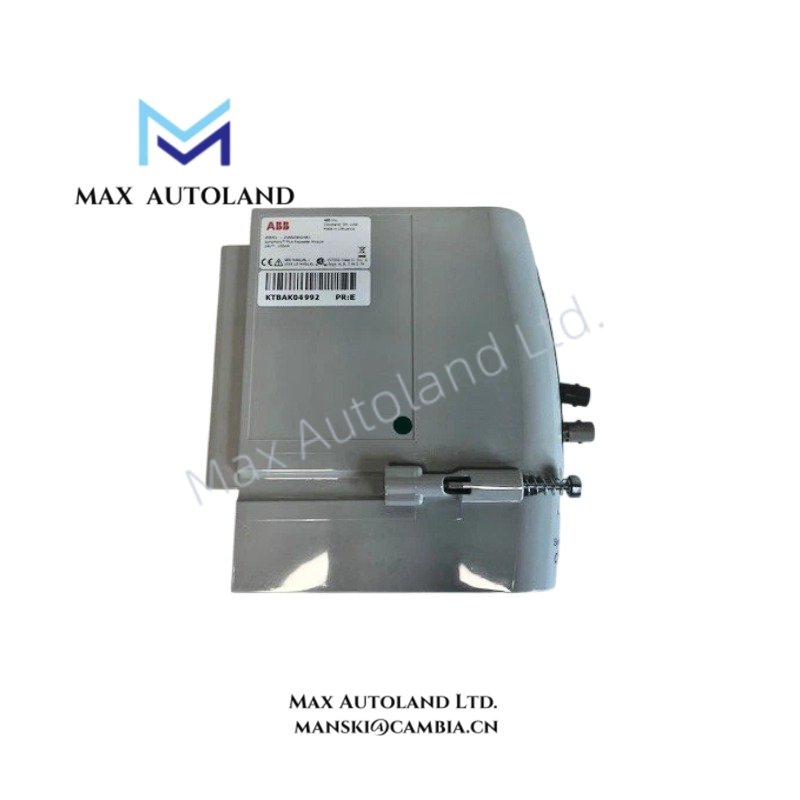

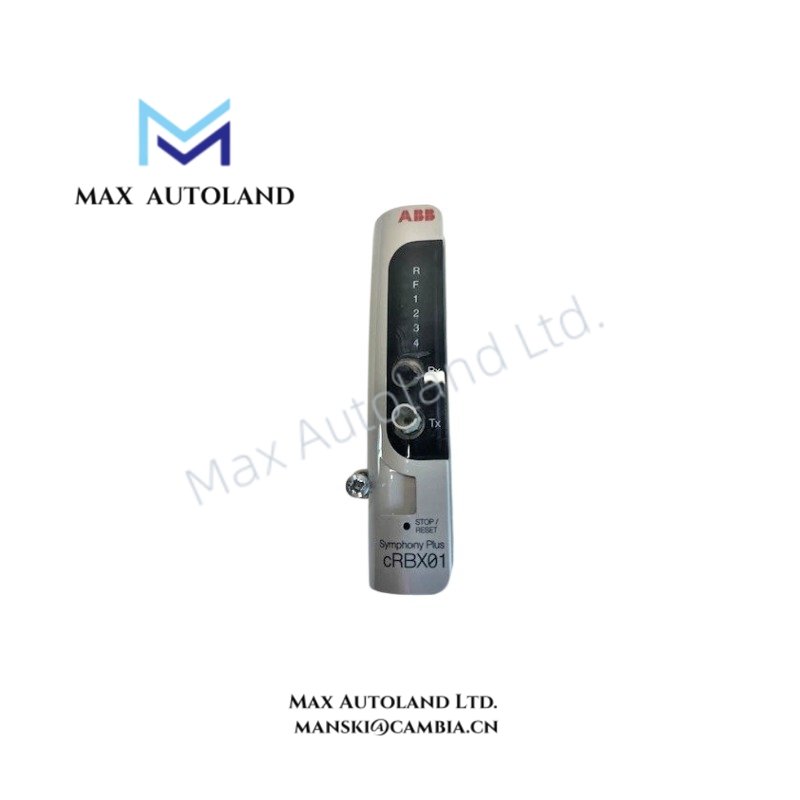

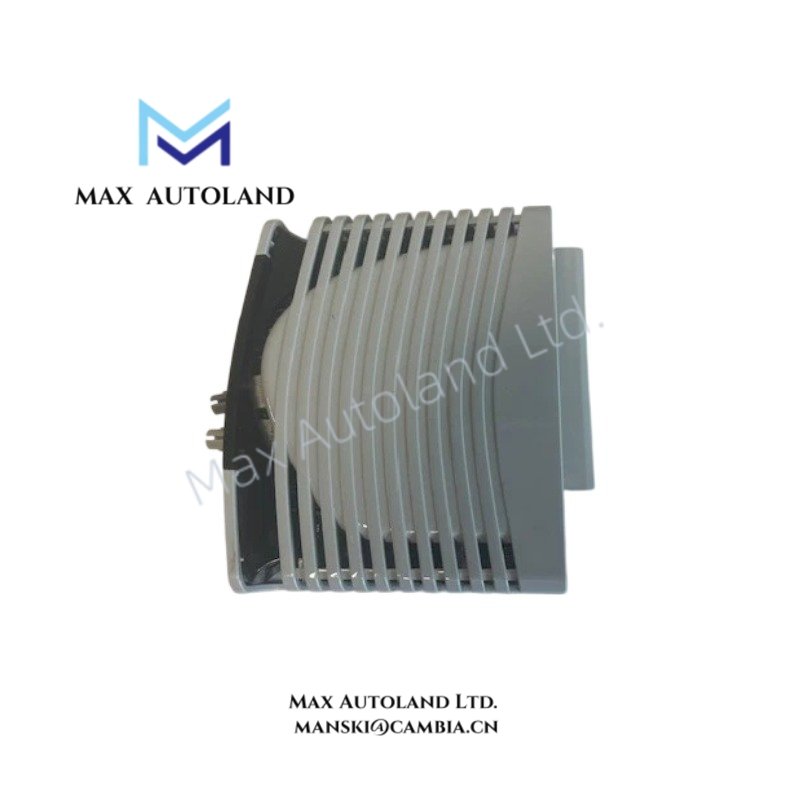

ABB CRBX01 Compact Remote Bus Extender Module

Overview

Configured for remote bus extension and backplane signal transport in ABB Symphony Plus Distributed Control System (DCS) networks, the ABB CRBX01 (CRBX01 Compact Remote Bus Extender Module) provides direct physical/electrical execution for Controlway or module bus extension across distributed rack topologies.

Suffix Breakdown & Model Matrix

CRBX01 is a single fixed hardware identifier with no publicly defined functional suffix segmentation. No additional factory-defined option matrix or coded hardware variant structure is available in standard documentation scope.

Hardware Specifications

Backplane Bus Communication and Deterministic Transport Characteristics

The CRBX01 module operates within ABB distributed backplane architectures where Controlway timing slots and deterministic frame sequencing govern inter-module communication. The bus extender maintains signal integrity across extended physical separation by preserving synchronous arbitration timing and reducing propagation skew across remote I/O segments. In Symphony Plus configurations, backplane communication velocity constraints are governed by system-level scheduling rather than standalone module throughput, ensuring deterministic exchange consistency across distributed racks. Firmware-level compatibility is aligned with ABB control system revision control, with indirect coupling to system bus arbitration logic rather than direct field protocol translation such as Profinet or EtherNet/IP.

Frequently Asked Questions

Q: Can the CRBX01 be hot-swapped under live backplane operation?
A: Hot-swap capability is system-dependent. In most Symphony Plus configurations, removal of a bus extender disrupts Controlway continuity and requires controlled shutdown or rack isolation prior to replacement.

Q: Does the module introduce measurable bus latency in distributed configurations?
A: The device operates as a passive/transparent extender within timing constraints defined by the controller backplane arbitration cycle. Latency impact is not independently configurable and is embedded in system scan timing.

Q: Is firmware flash performed on CRBX01 directly?
A: The module does not typically expose field firmware flash interfaces. Functional updates are handled at controller or system-level configuration layers.

Field Installation Guidelines

• Install module only within ABB-approved rack or compatible mounting assembly.
• Maintain separation between signal cabling and high-power conductors to avoid induced noise on bus lines.
• Ensure correct seating alignment on backplane connector to prevent intermittent bus discontinuity.
• Use shielded wiring practices where remote bus segments extend between cabinet enclosures.
• Verify system grounding continuity across all interconnected racks prior to energization.
