Overview

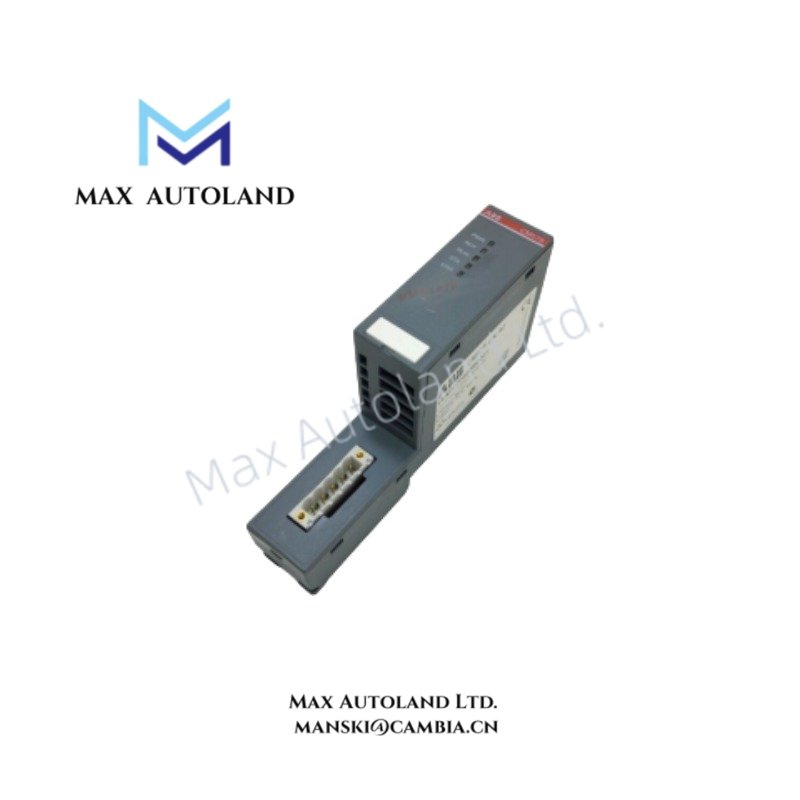

Configured for deterministic CANopen master communication in AC500 PLC network architectures, the ABB CM578-CNX (CM578) CANopen Communication Module provides direct physical and protocol-level execution of fieldbus data exchange between AC500 CPU systems and distributed CANopen slave nodes.
Suffix Breakdown & Model Matrix
- CM578: ABB AC500 communication module family identifier for CANopen master functionality
- CNX: CANopen network execution variant designation
No further officially published sub-variants or decoding structure is provided in the source data.
HardwareSpecifications
| Parameter | Specification |
|---|---|
| ModelBrand | ABB CM578-CNX |
| Origin | Not specified |
| Weight | Not specified |
| Dimensions | 28 mm x 135 mm x 75 mm |
| OperatingTemp | 0 degC to +60 degC (horizontal), 0 degC to +40 degC (vertical) |
| PowerConsumption | Powered via AC500 backplane, approx 160 mA @ 5 VDC |
| Protocol | CANopen Master |
| Interface | CAN, 9-pin Sub-D |
| Baud Rate | 10 kbit/s to 1 Mbit/s |
| Slave Capacity | Up to 126 nodes |
Industrial Control and Backplane Communication Characteristics
The ABB AC500 backplane architecture provides deterministic internal data exchange between CPU and communication modules via a high-speed coupler bus. The CM578-CNX integrates into this execution layer as a fieldbus gateway, mapping CANopen process objects directly into PLC memory structures. Firmware compatibility is managed through ABB Automation Builder hardware description files, enabling consistent module recognition across firmware revisions and CPU generations within the AC500 platform. IO density scaling is handled through modular rack expansion, allowing multiple communication interfaces to coexist without altering CPU cycle timing determinism.
FrequentlyAskedQuestions
Q: Does the CM578-CNX support hot-swap removal under load conditions?
A: The module is not specified for hot-swap operation. Removal should be performed under system power-down to prevent CAN bus interruption and backplane communication faults.
Q: What is the backplane current impact of the module?
A: The module draws approximately 160 mA from the internal 5 VDC coupler bus, which must be accounted for in total rack power budgeting.
Q: Can firmware be updated independently of the AC500 CPU?
A: Firmware handling is coupled to ABB Automation Builder project configuration; updates are validated at system level rather than isolated module flashing.
FieldInstallationGuidelines
- Install module only on compatible AC500 CPU terminal base left-side slot
- Ensure CAN bus shielding is grounded at a single point to avoid ground loop currents
- Maintain twisted-pair routing for CAN_H and CAN_L with controlled impedance
- Limit stub lengths on CANopen network according to ISO 11898 physical layer rules
- Verify correct node ID assignment prior to network commissioning to prevent address conflicts
- De-energize system before insertion or removal of module to maintain backplane integrity
