Overview

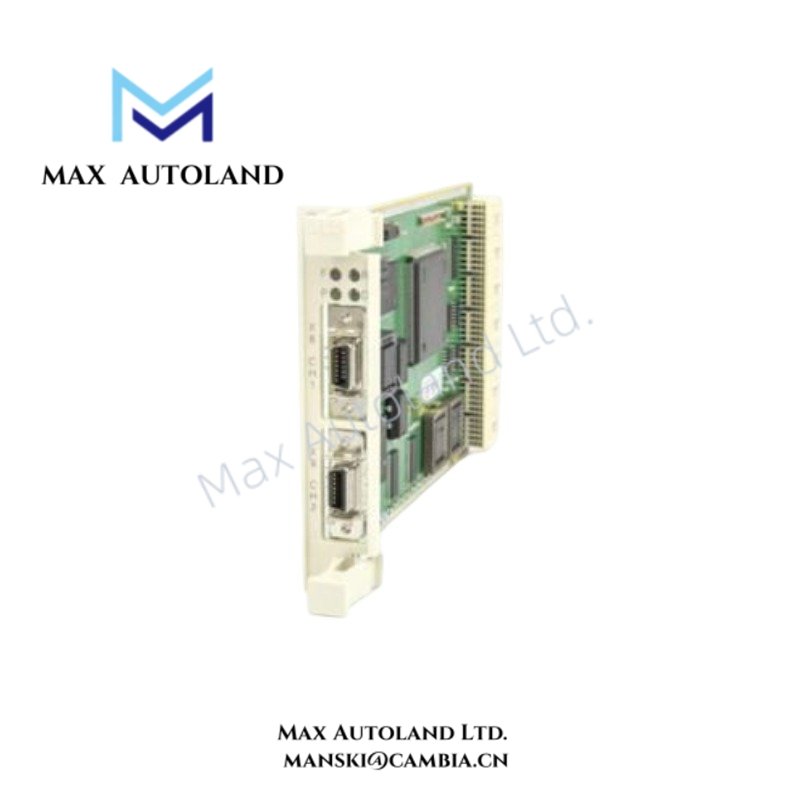

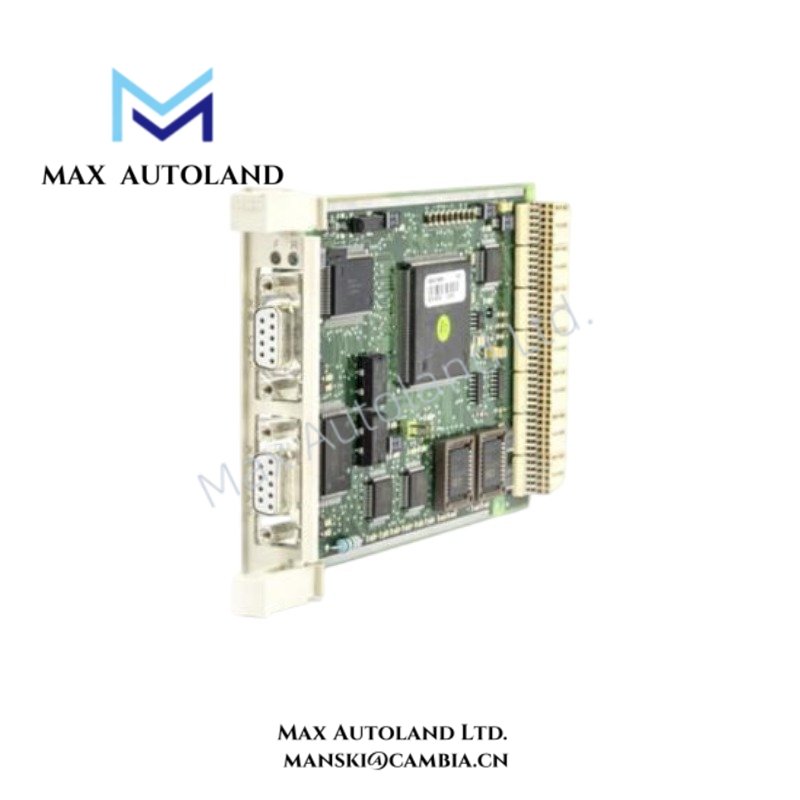

Configured for AF100 network communication in ABB automation systems, the ABB CI522AK041 (CI522A AF100 Communication Interface Module) provides direct physical and electrical data exchange between compatible controllers, I/O nodes, and the Advant Fieldbus 100 network. The module supports process data communication through the specified AF100 interface architecture and can participate in redundant communication arrangements where supported by the system configuration.
Suffix Breakdown & Model Matrix
The provided information identifies CI522A as the base module designation and associates it with order codes such as CI522AK041. No manufacturer-defined suffix breakdown has been provided; therefore, no additional suffix interpretation is included.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CI522A / CI522AK041 |
| Brand | ABB |
| Product Type | AF100 Communication Interface Module |
| Supported Network Protocol | Advant Fieldbus 100 (AF100) |
| Compatibility | ABB AC 800M series controllers and S800 I/O systems, as provided |
| Communication Speed | Up to 1.5 Mbps, as provided |
| Redundancy Support | Supported through redundant communication paths where configured |
| Power Supply | 24 VDC |
| Network Topology | Star or daisy chain, as provided |
| Maximum Cable Length | Up to 100 m per segment specification, as provided |
| Mounting | Modular rack or rail mounting for industrial control cabinets |
| Operating Temp | -40 to +70 deg C, as provided |
ABB Industrial Network and Firmware Integration
The CI522A operates as a dedicated communication interface within the ABB automation hardware architecture. It transfers network data through its AF100 communication interface and connects the associated hardware to the fieldbus segment.
Before installation or replacement, the controller configuration and installed system software should be checked against the applicable ABB hardware revision. Firmware and configuration compatibility can affect module recognition and communication startup. In addition, network addressing and redundant communication parameters should match the installed system configuration.
Frequently Asked Questions
Q: Does the CI522A support redundant communication?
A: The provided information specifies support for redundant communication paths. The actual redundant configuration depends on the connected ABB system architecture and installed network configuration.
Q: Can the CI522A be installed directly without checking the controller configuration?
A: The controller hardware configuration, communication parameters, and applicable firmware compatibility should be verified before commissioning the module.
Q: What network does the CI522A interface support?
A: The CI522A is specified for communication through the Advant Fieldbus 100 (AF100) network.
Field Installation Guidelines
Install the CI522A in the specified ABB control system mounting location with system power isolated unless the applicable system documentation explicitly permits energized replacement.
Connect communication cables according to the AF100 network configuration. Maintain the required cable routing and separation from high-power conductors to reduce electrical interference. Terminate cable shielding according to the system grounding design and avoid creating unintended ground loops.
Before startup, verify the module seating, connector engagement, network configuration, and communication parameters. Where redundant communication paths are installed, check both paths individually and confirm the configured system recognizes the intended communication arrangement.
