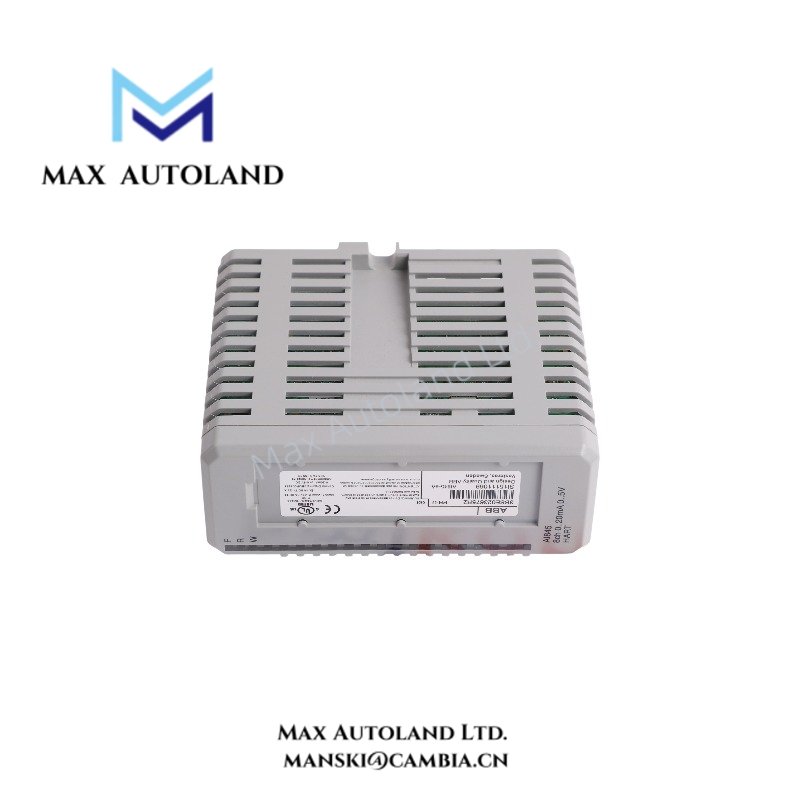

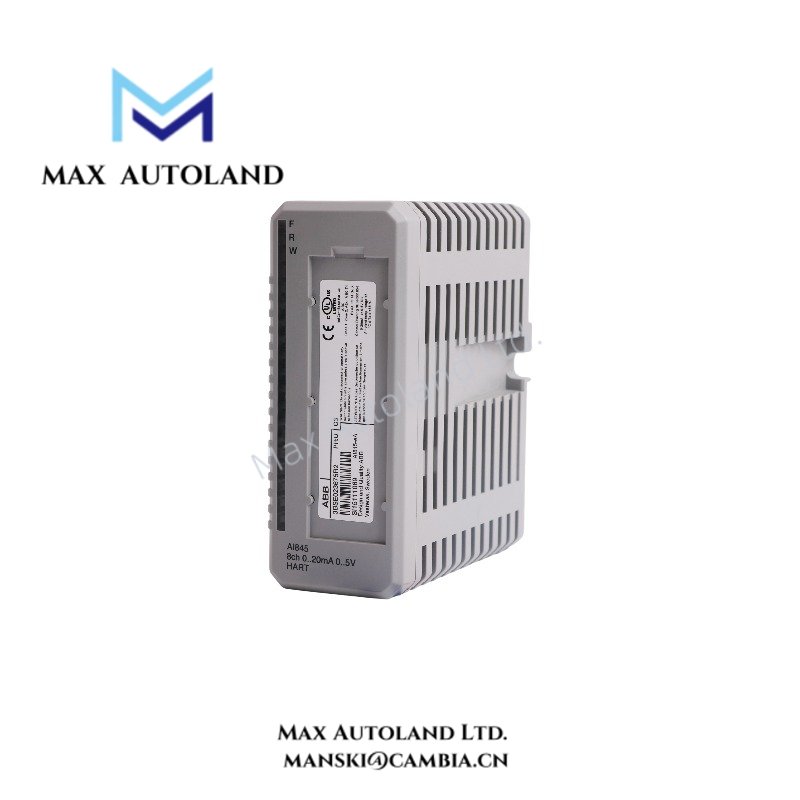

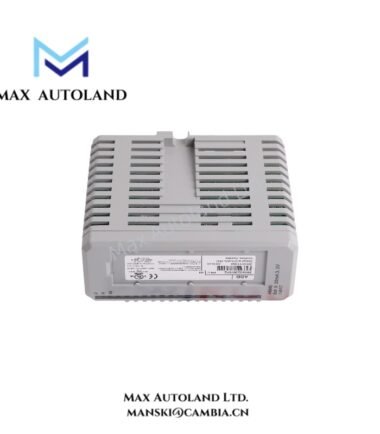

ABB AI845-eA 3BSE023675R2 Analog Input Module

Hardware Specifications

Industrial Control Bus and I/O Integration

The ABB AI845-eA integrates with ABB S800 I/O architectures for analog signal measurement and data transfer to AC 800M controllers. The module performs signal conversion between field analog devices and the control system I/O network.

Furthermore, ABB S800 I/O modules use standardized backplane communication methods to transfer process data between I/O modules and controller interfaces. The AI845-eA supports I/O density scaling within modular automation configurations, allowing engineering teams to expand channel capacity according to system requirements.

The module design follows ABB industrial control hardware architecture, where configuration parameters, channel assignments, and diagnostic information are managed through compatible System 800xA engineering tools.

Frequently Asked Questions

Q: What type of signals does the ABB AI845-eA process?
A: The AI845-eA is an Analog Input Module designed to acquire industrial analog signals and transfer processed values to ABB S800 I/O control systems.

Q: Can the AI845-eA operate as a standalone controller module?
A: No. The AI845-eA functions as an I/O acquisition device and requires integration with a compatible ABB controller and I/O communication structure.

Q: Does the AI845-eA support hot swapping?
A: Hot swap capability depends on the complete S800 I/O system configuration, module type settings, and controller hardware arrangement. Installation procedures should follow ABB system documentation.

Field Installation Guidelines

• Install the AI845-eA on the specified ABB S800 I/O mounting assembly according to the system hardware configuration.
• Verify terminal connections before applying field power to prevent incorrect analog signal wiring.
• Separate analog signal cables from high-current power cables to reduce electrical interference.
• Connect cable shields according to plant grounding standards and ABB installation recommendations.
• Confirm module addressing, controller communication status, and channel configuration through the System 800xA engineering environment before commissioning.
