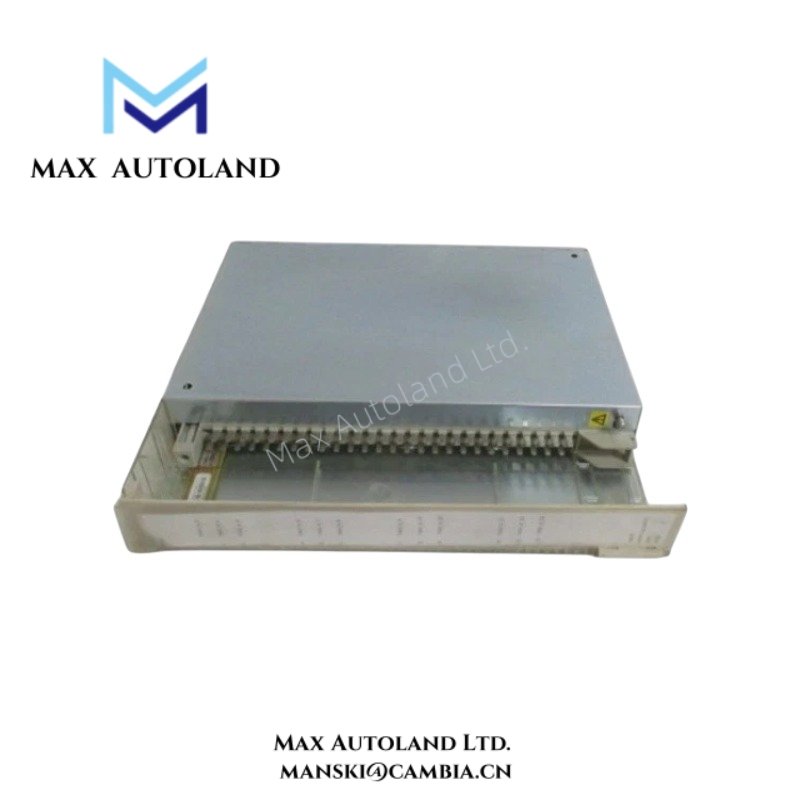

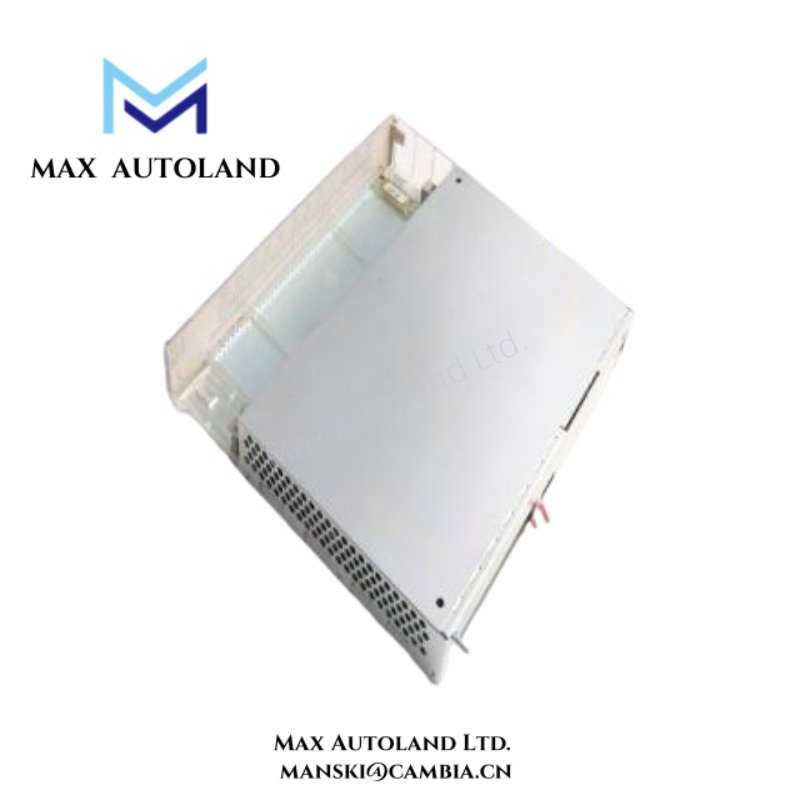

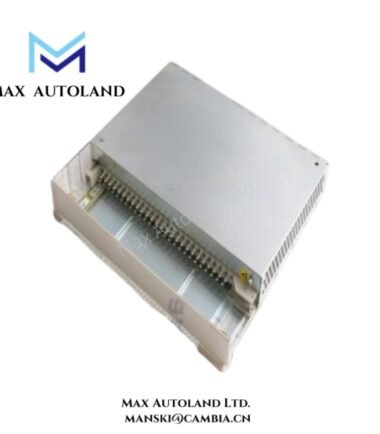

ABB AI630 3BHT300011R1 Analog Input Modules

Overview

The ABB AI630 3BHT300011R1, also cataloged as the AI630 Analog Input Module, operates as a dedicated hardware component for analog signal acquisition within ABB drive and control system architectures. The module converts incoming field signals into data suitable for processing through the system communication and backplane infrastructure.

Suffix Breakdown & Model Matrix

The available documentation identifies 3BHT300011R1 as the catalog number associated with the AI630 module. No official suffix decomposition or variant matrix is specified in the referenced documentation.

Hardware Specifications

I/O Density Scaling and Backplane Integration

The AI630 transfers acquired process data through the system backplane architecture for controller-level processing. Furthermore, the module supports scalable I/O configurations by allowing additional signal acquisition resources within compatible ABB platforms. As a result, system designers can expand measurement capacity while maintaining the existing control structure and communication topology. In addition, the module operates within the platform’s standardized hardware framework, which simplifies integration with other ABB I/O resources.

Frequently Asked Questions

Q: Can the AI630 operate without a host controller or system rack?
A: No. The module requires installation within a compatible ABB platform that provides power distribution, backplane communication, and configuration services.

Q: Does the AI630 support hot replacement?
A: Hot-swap capability depends on the specific ABB platform and maintenance procedures. Consult the applicable system documentation before removing or inserting the module.

Q: What should technicians verify after installation?
A: Verify module seating, backplane connector engagement, terminal wiring integrity, and successful communication with the host controller.

Field Installation Guidelines

• Install the AI630 only in slots approved by the system configuration.
• Before installation, inspect connectors and terminals for contamination or mechanical damage.
• Route analog signal wiring separately from motor power cables and high-current conductors.
• Additionally, apply proper cable shielding and grounding practices to minimize electrical noise.
• Tighten terminal connections according to the applicable hardware instructions.
• Verify channel assignments and controller configuration before energizing the system.
• Finally, record the module location and hardware revision for maintenance documentation.
