Overview

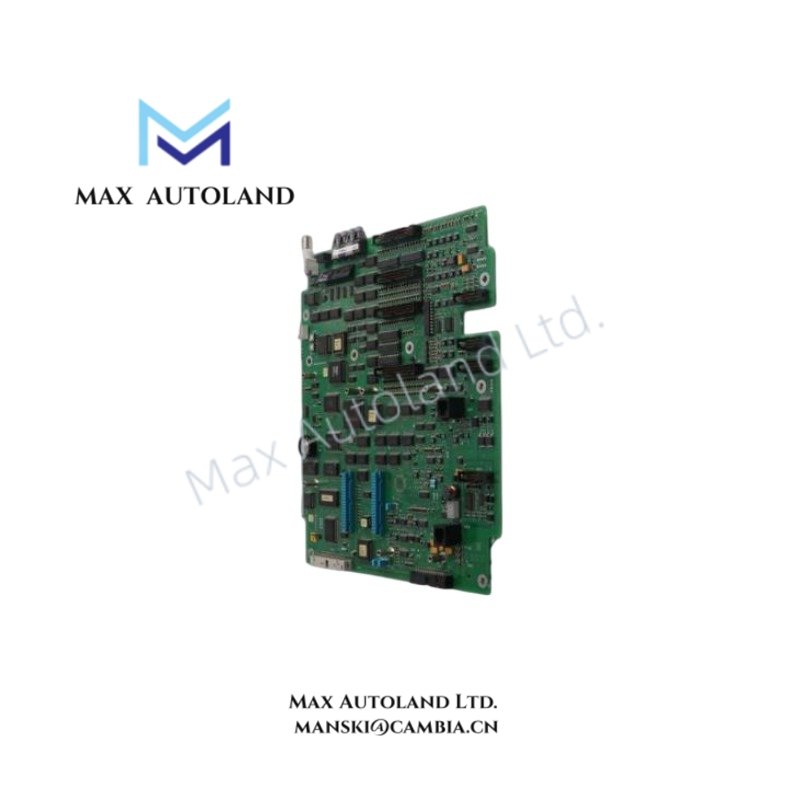

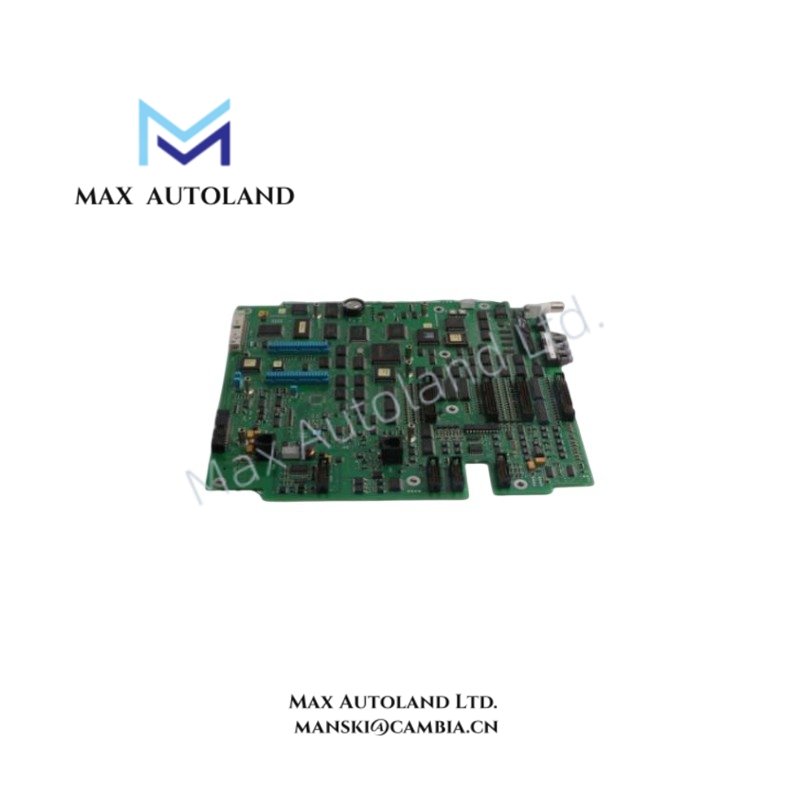

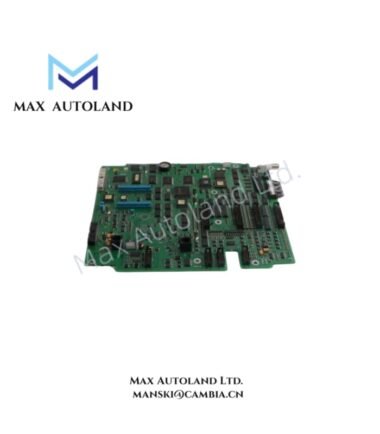

Configured for digital signal acquisition and relay actuation in the ABB Advant Controller 450 system, the ABB DSDX 454 5716075-AT (DSDX454 Digital I/O Module) provides direct physical interfacing between field devices and the control network backplane.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | DSDX 454 5716075-AT |
| Origin | Sweden |
| Weight | 2.85 kg |
| Dimensions | 23.5 x 21.8 x 8.8 cm |
| Operating Temp | 0 degC to +60 degC |
| Storage Temp | -40 degC to +85 degC |
| Humidity | 5–95 % RH, non-condensing |
| Power Supply | 48 VDC |
| Digital Inputs | 20 channels |
| Relay Outputs | 12 channels |
| Contact Rating | 24–240 VAC/VDC |
| Max Load | 2 A |
| Min Load | 2.5 VA or 100 mA @ 24 VDC |
Backplane Bus Communication and Firmware Compatibility
The module interfaces via the S400 remote I/O bus architecture, maintaining deterministic data exchange with the AC450 controller. Firmware revisions must match the controller’s compatibility matrix; mismatched firmware may prevent bus initialization. The unit supports hot replacement only when the system backplane power is isolated to avoid transient backfeed into the relay drivers.
Frequently Asked Questions
Q: Can the DSDX 454 operate on a 24 VDC supply?
A: No. The module requires a nominal 48 VDC input; operation below specification may cause incorrect relay actuation timing.
Q: Are the relay outputs electrically isolated per channel?
A: Isolation exists between the logic side and the relay contacts, but not between individual output channels.
Q: What is the maximum permissible cable length for digital inputs?
A: For stable operation, keep input wiring under 200 m using twisted-pair cables with proper shielding.
Field Installation Guidelines
Mount the unit directly onto the designated S400 rack using standard DIN rail or chassis slots. Ensure shield termination at the cabinet ground bus to reduce EMI coupling. Maintain minimum 10 mm spacing from high-power switching devices to prevent contact welding from inductive surges. Verify all field wiring before applying 48 VDC to avoid permanent damage to the solid-state input stages.
