Overview

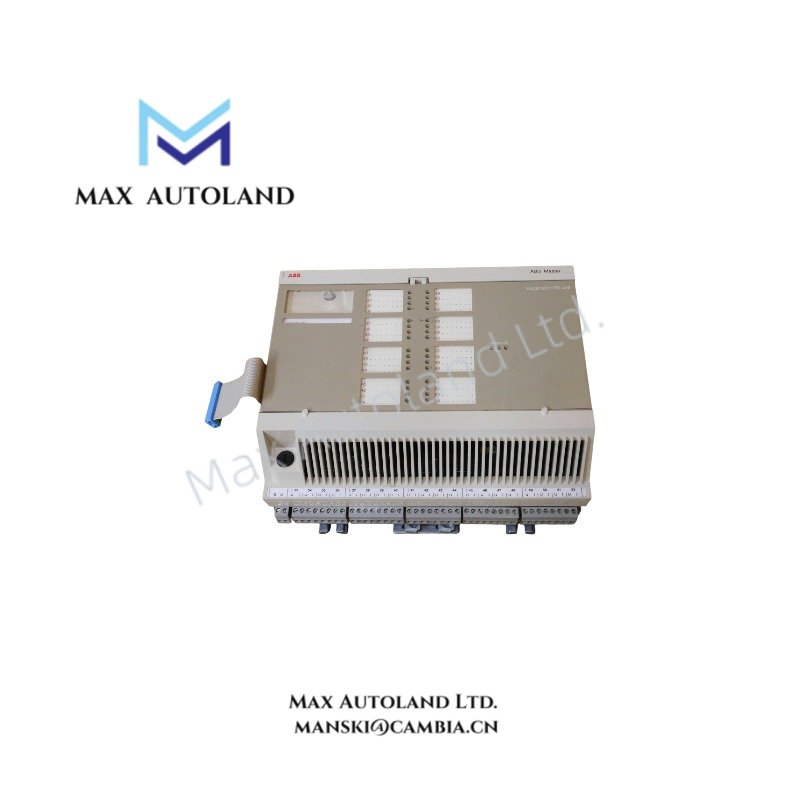

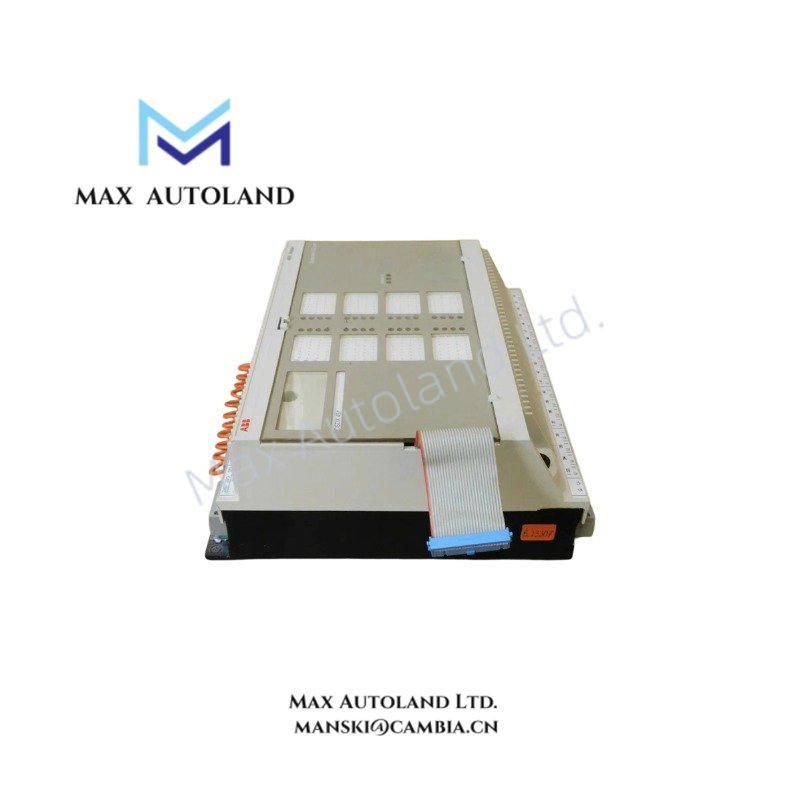

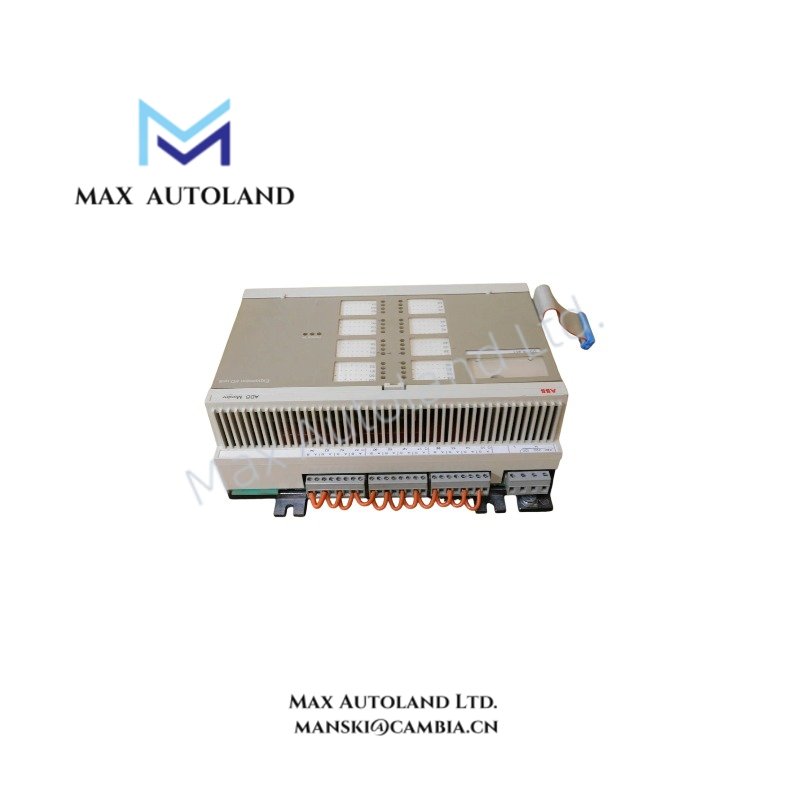

Configured for digital signal interfacing in ABB Advant OCS distributed control platforms, the ABB DSDX451, also cataloged as the DSDX 451 Basic Unit, provides direct physical execution of discrete input detection and output switching tasks within controller backplane networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSDX451 |
| Brand | ABB |
| Origin | Sweden |
| Weight | 3.2 kg |
| Dimensions | 22.9 x 10.2 x 25.4 cm |
| Operating Temp | 0 to 60 degC |
| Power Consumption | 24 VDC backplane supply, 500 mA max |
| Digital Inputs | 20 channels, 24 VDC |
| Digital Outputs | 12 channels, 24 VDC, 0.5 A per channel |
Backplane Bus Communication Velocity Licences
The DSDX451 utilizes the ABB Advant Controller backplane bus operating at deterministic scan rates. Firmware flash compatibility is limited to specific Advant OCS firmware releases; mismatched firmware will inhibit I/O mapping. Channel density scaling is fixed at 32 total points per module without expansion licensing requirements.
Frequently Asked Questions
Q: Does the DSDX451 support hot-swap insertion?
A: No. Power must be removed from the rack before installing or removing the module to prevent backplane transients.
Q: What is the backplane current load imposed by this unit?
A: The module draws a maximum of 500 mA from the 24 VDC backplane supply under full load conditions.
Q: Are outputs galvanically isolated from inputs?
A: Yes. Output channels are electrically isolated from input circuits, but all outputs share a common return reference.
Field Installation Guidelines
Mount the DSDX451 directly onto the designated Advant OCS rack slot. Ensure DIN rail retention clips are fully engaged. Route input and output wiring separately from high-voltage power conductors to minimize inductive coupling. Ground shield terminations at the rack ground bus only. Verify torque on terminal screws meets 0.5 Nm ±0.05 Nm specification before energizing the system.
