Overview

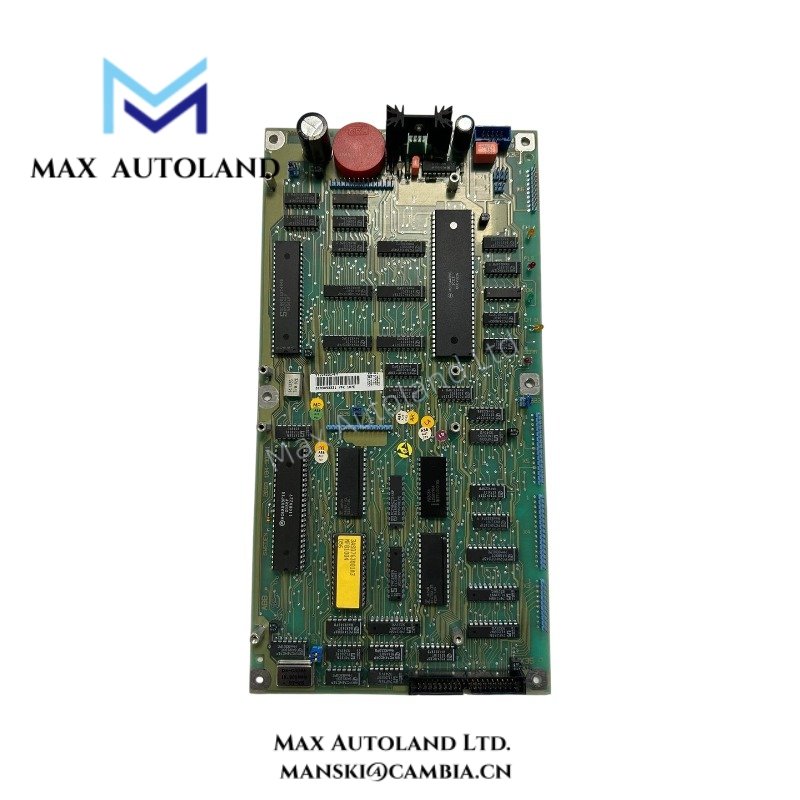

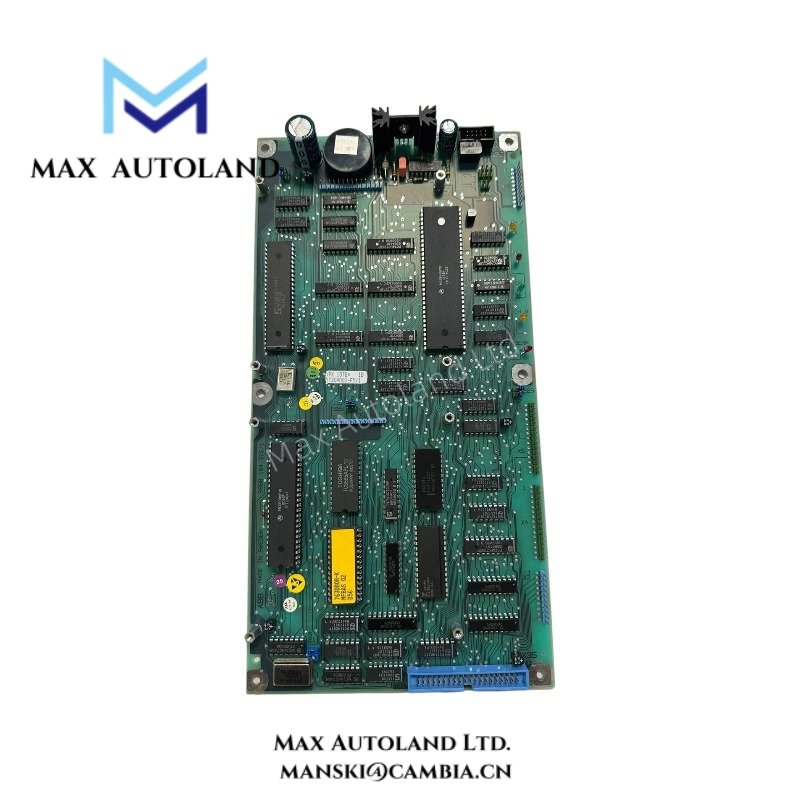

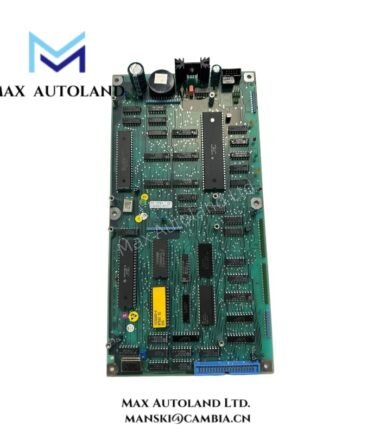

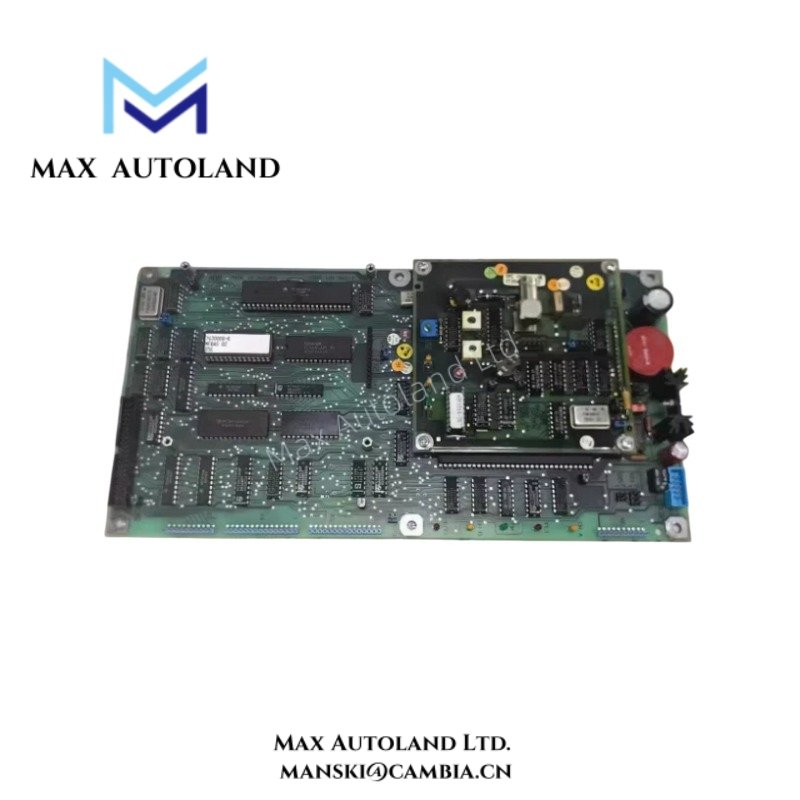

Configured for parallel bus data exchange in ABB Advant OCS and compatible control architectures, the ABB YPK110E YT204001-FH (YPK110E Parallel Bus Communication Slave Module) provides direct physical and electrical communication handling. The module operates as a slave interface on the system communication bus, enabling deterministic data transfer between connected automation components and the controller backplane.
Suffix Breakdown & Model Matrix
The available documentation identifies a single cataloged configuration:
| Parameter | Specification |
|---|---|
| Model Variant | YPK110E / YT204001-FH |
| Description | Parallel Bus Communication Slave Module |
No official suffix decomposition or option matrix is specified in the available documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | YPK110E |
| Product ID | YT204001-FH |
| Brand | ABB |
| Product Type | Parallel Bus Communication Slave Module |
| System Platform | Advant OCS / 800xA |
| Communication Interface | Parallel Bus Communication |
| Bus Role | Slave Module |
| Mounting | Backplane Installation |
| Origin | Sweden |
| Weight | 0.2 kg |
| Dimensions | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
Backplane Bus Communication Integration
The YPK110E exchanges communication data through the automation system backplane and parallel communication bus infrastructure. The module functions as a slave communication node, allowing connected subsystem data to be transferred into the controller environment through the system bus interface. Installation is performed within the control cabinet to maintain deterministic communication between distributed system components.
Frequently Asked Questions
Q: Does the YPK110E operate as a master or slave communication device?
A: The module is specified as a Parallel Bus Communication Slave Module and operates as a slave node within the communication architecture.
Q: What communication method does the module support?
A: The YPK110E supports parallel bus communication for data exchange between automation system components.
Q: Are operating temperature and power consumption values available?
A: Publicly available documentation does not specify operating temperature or power consumption values. Refer to ABB system engineering documentation for project-specific requirements.
Field Installation Guidelines
- De-energize the control cabinet before module installation or removal.
- Verify slot allocation according to the Advant OCS hardware configuration.
- Route communication cables separately from power wiring to minimize electromagnetic interference.
- Connect cable shields according to site grounding practices.
- Inspect backplane connectors before insertion to prevent communication faults.
- Confirm proper bus configuration and node recognition during commissioning.
- Perform communication diagnostics after startup to verify data transfer integrity.
