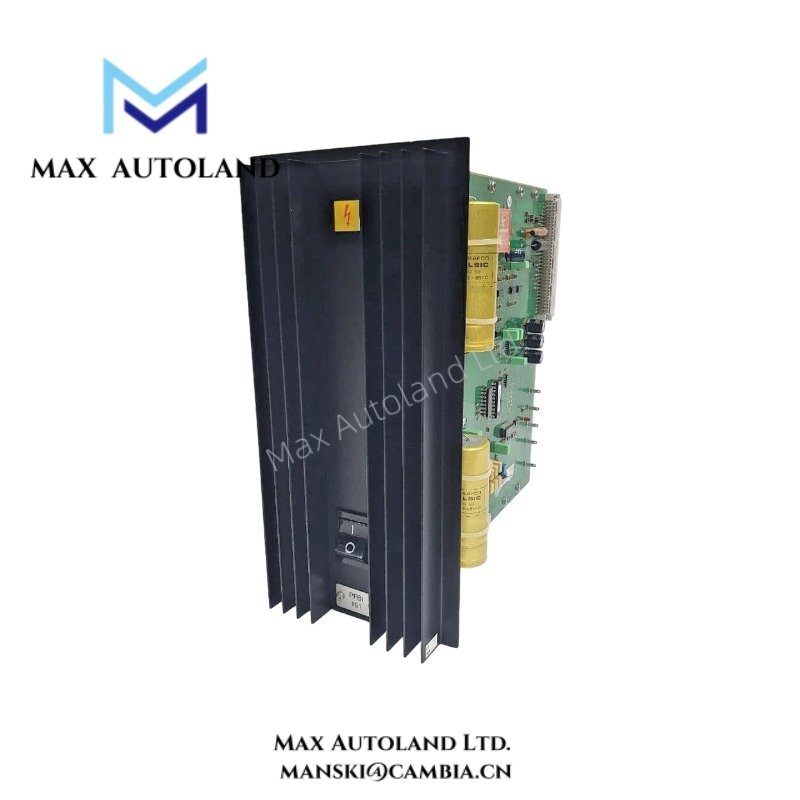

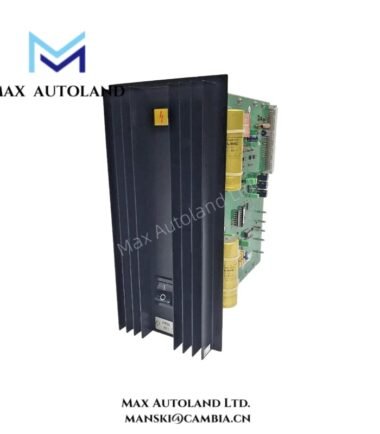

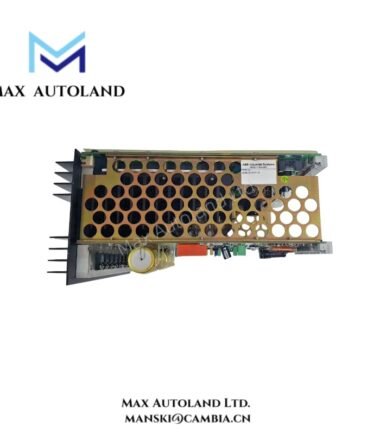

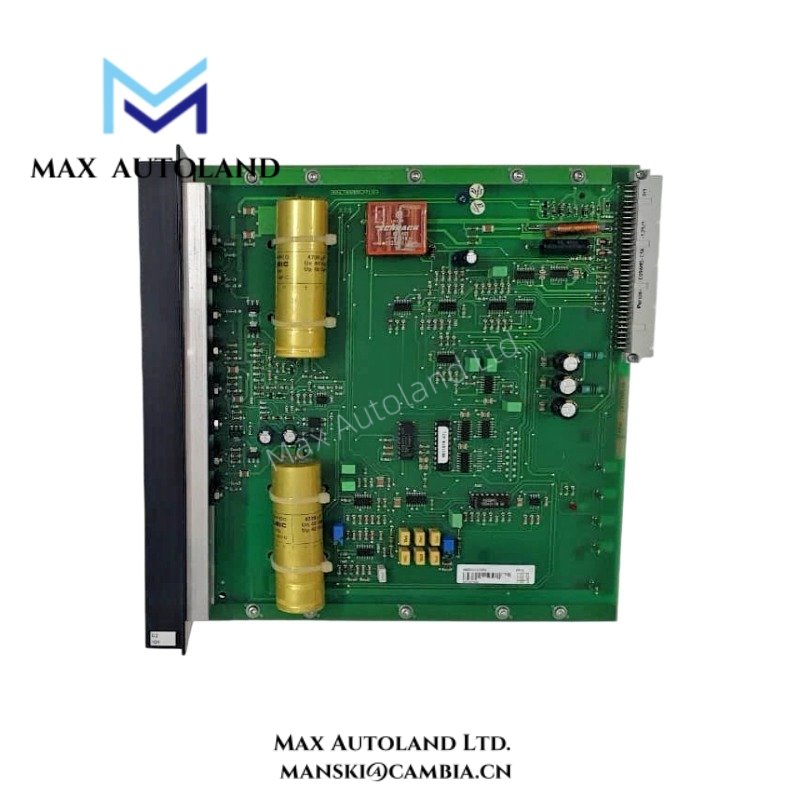

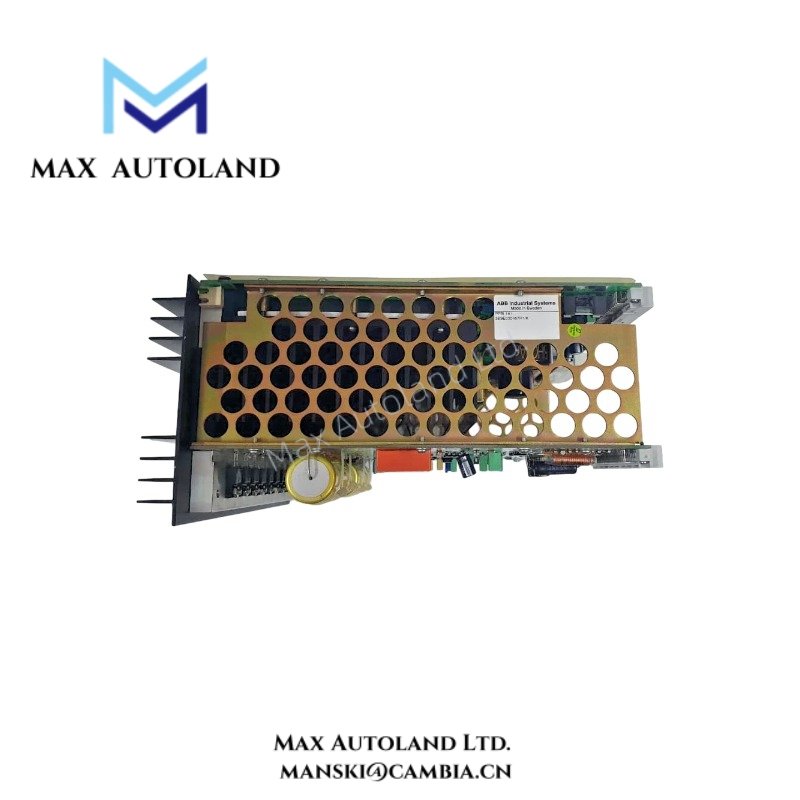

ABB Advant OCS/800xA PFBI161 3BSE000467R1/K Fieldbus Interface Modules

Overview

Configured for fieldbus data exchange and controller communication in ABB Advant OCS and System 800xA environments, the ABB PFBI161 3BSE000467R1/K (PFBI161 Fieldbus Interface Module) provides direct physical and logical execution. The module transfers process and diagnostic information between fieldbus segments and the control system backplane while maintaining deterministic communication paths defined by the host architecture.

Suffix Breakdown & Model Matrix

The supplied documentation identifies PFBI161 3BSE000467R1/K as a specific hardware variant. No official suffix decomposition is provided in the referenced material. Therefore, no additional model matrix is presented.

Hardware Specifications

Firmware Flash Compatibility

The PFBI161 integrates with ABB controller architectures through the system backplane. Configuration management and firmware handling remain controlled by the associated controller and engineering environment rather than by standalone module execution.

Backplane bus communication supports deterministic transfer of process information between communication modules and control processors. This architecture permits I/O density scaling through additional interface modules while maintaining a common configuration structure within the automation platform.

Frequently Asked Questions

Q: Does the PFBI161 operate as an independent controller?
A: No. The module functions as a communication interface and exchanges data through the host control system architecture.

Q: Can the module be replaced without changing application logic?
A: Hardware replacement should be performed using a compatible module revision and system configuration verified through the engineering workstation before commissioning.

Q: Does the module communicate directly with the controller backplane?
A: Yes. Process and diagnostic data are exchanged through the ABB system backplane according to platform communication scheduling.

Field Installation Guidelines

• De-energize the rack before inserting or removing the module unless platform documentation explicitly permits online replacement.
• Verify module seating and connector engagement before applying power.
• Route communication cables separately from high-current power conductors to reduce electromagnetic interference.
• Terminate cable shields according to ABB grounding practices and site electrical standards.
• Confirm node addressing and communication parameters before connecting the fieldbus segment.
• Inspect backplane connectors for contamination or mechanical damage prior to installation.
