Overview

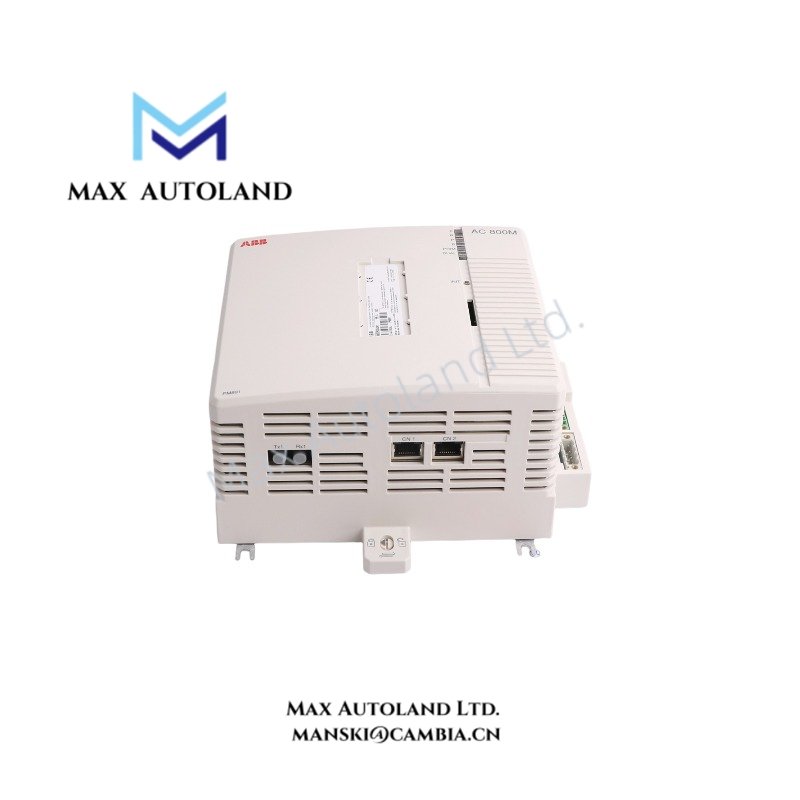

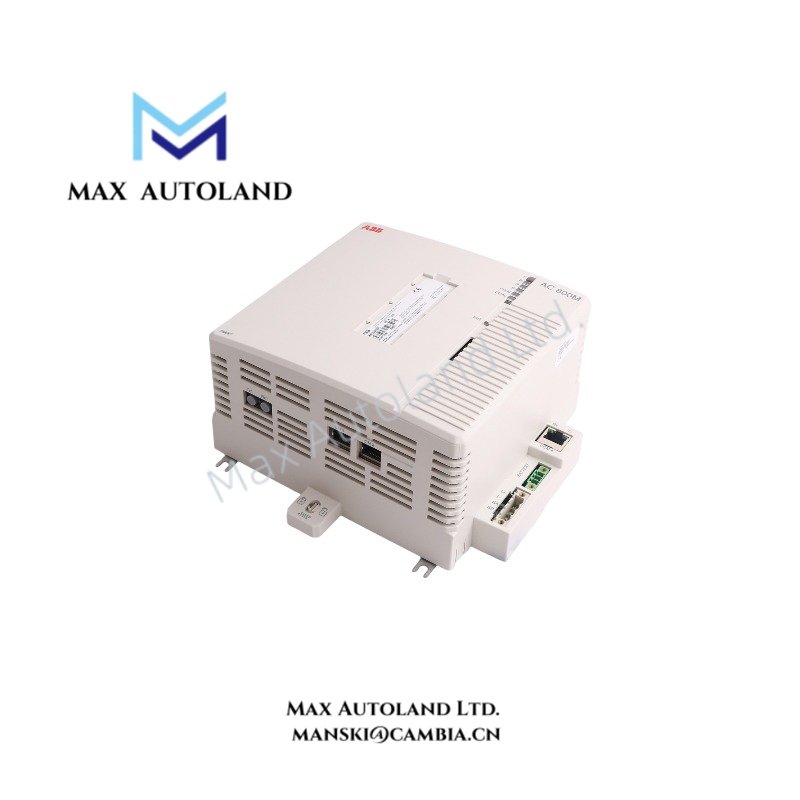

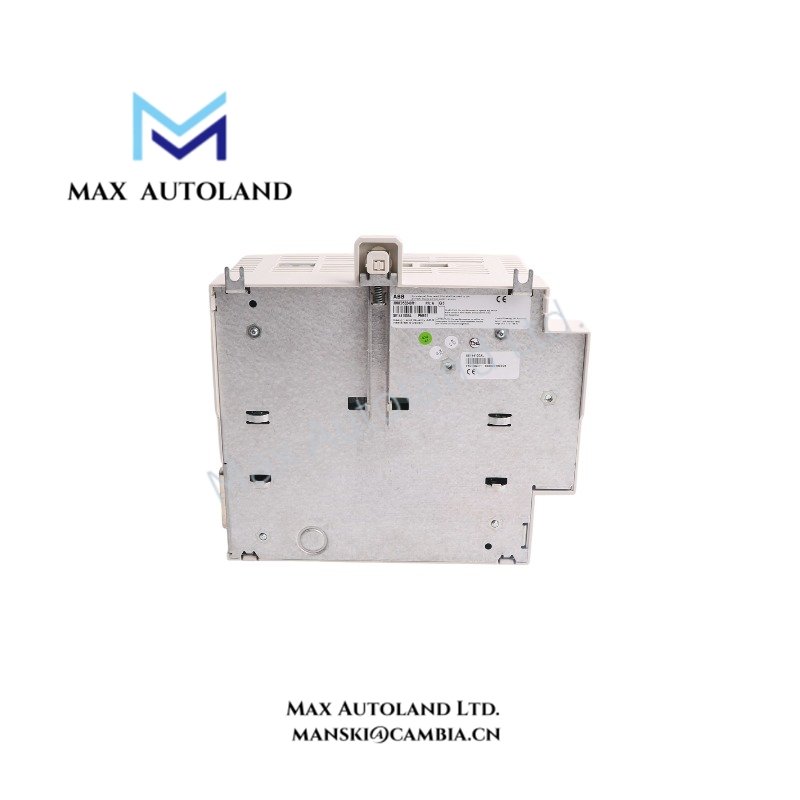

Configured for CPU execution and controller processing tasks in ABB AC 800M control system platforms, the ABB PM891K01 (PM891K01 Processor Unit) provides direct physical and electrical execution for application processing, communication management, and controller operations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM891K01 |
| Spare Model | 3BSE053241R1 |
| Brand | ABB |
| Product Type | Processor Unit |
| Origin | Sweden |
| Weight | 1.64 kg |
| Dimensions | 20 x 18.7 x 10 cm (shipping size) |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
| Included Components | PM891 CPU Module, TB850 CEX-Bus Terminator, TB853 RCU Control Link Terminator, Power Plug |
| Tariff Code | 8537101190 |
| System Platform | ABB AC 800M Controller Platform |
Industrial Control Processor Architecture
The PM891K01 operates as a processor hardware component within ABB AC 800M controller configurations. Moreover, the CPU module executes application logic, manages controller communication tasks, and processes system operations through the controller backplane.
The module supports ABB industrial control architectures that require firmware-controlled execution, communication handling, and modular controller expansion. Therefore, installation requires compatibility between the processor unit, controller hardware configuration, and associated communication modules.
In addition, ABB controller platforms use structured module communication through internal buses. The PM891K01 configuration includes TB850 CEX-Bus Terminator and TB853 RCU Control Link Terminator components to support defined bus termination requirements.
Frequently Asked Questions
Q: What components are included with the ABB PM891K01 processor unit?
A: The PM891K01 package includes the PM891 CPU module, TB850 CEX-Bus Terminator, TB853 RCU Control Link Terminator, and power plug.
Q: Does the PM891K01 support direct firmware replacement between different ABB controller generations?
A: Firmware compatibility depends on the installed ABB AC 800M controller configuration and approved system software version.
Q: What installation factors should be checked before mounting the PM891K01?
A: Engineers should verify controller rack compatibility, bus connections, grounding requirements, and module communication configuration before installation.
Field Installation Guidelines
Install the PM891K01 in the designated ABB AC 800M controller position according to the hardware configuration documentation.
Verify that the CEX-Bus and RCU Control Link connections match the configured controller architecture before powering the system. Maintain proper cable routing and separate communication wiring from high-voltage conductors to reduce electrical interference.
Ensure grounding and shielding practices follow industrial control cabinet standards. Before replacing or inserting the processor unit, confirm the controller state and follow approved shutdown or hot-swap procedures defined for the installed system.
