Overview

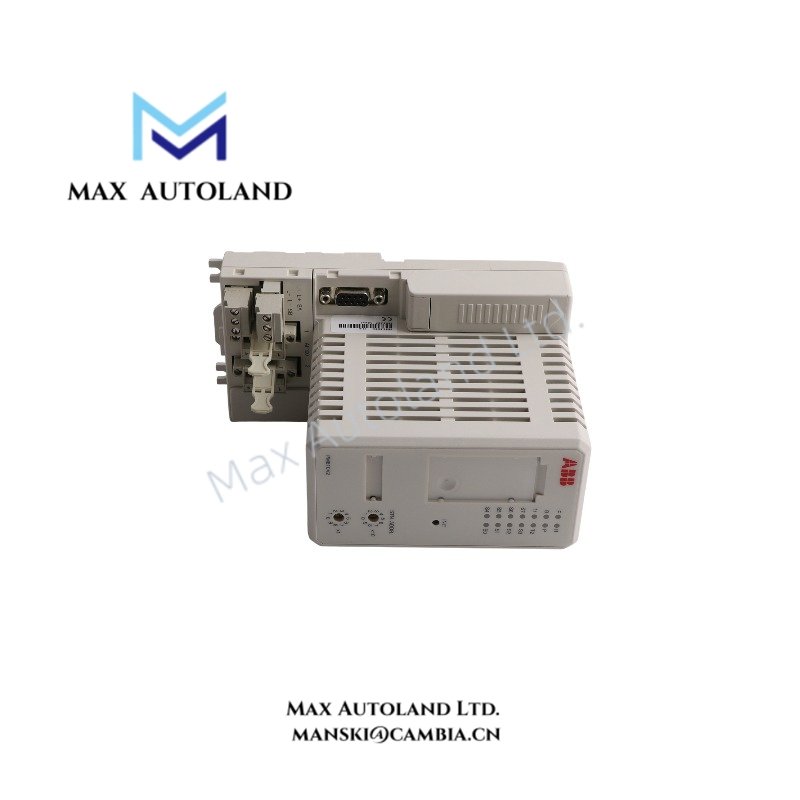

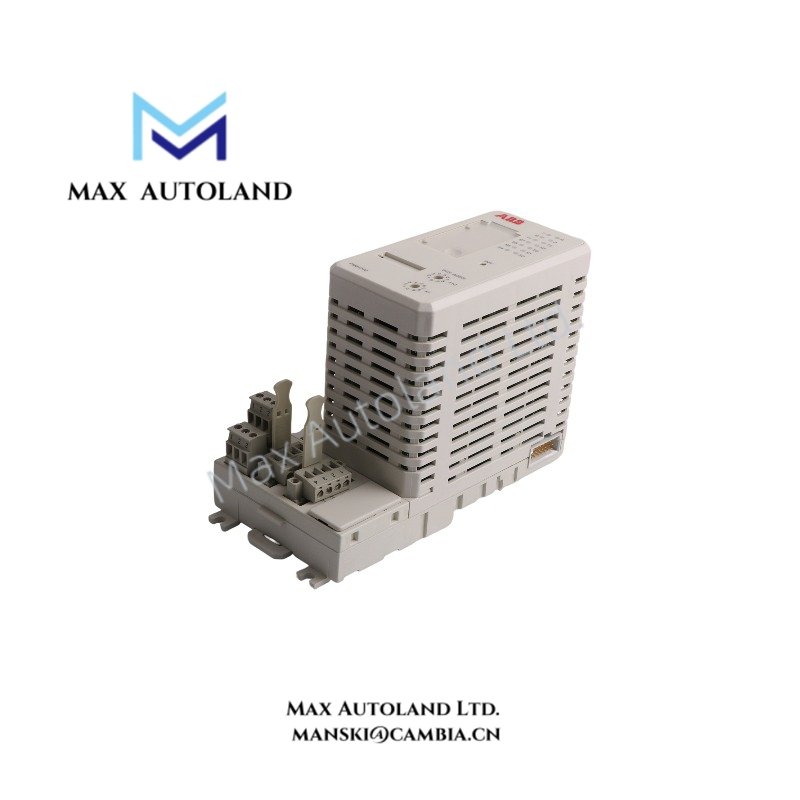

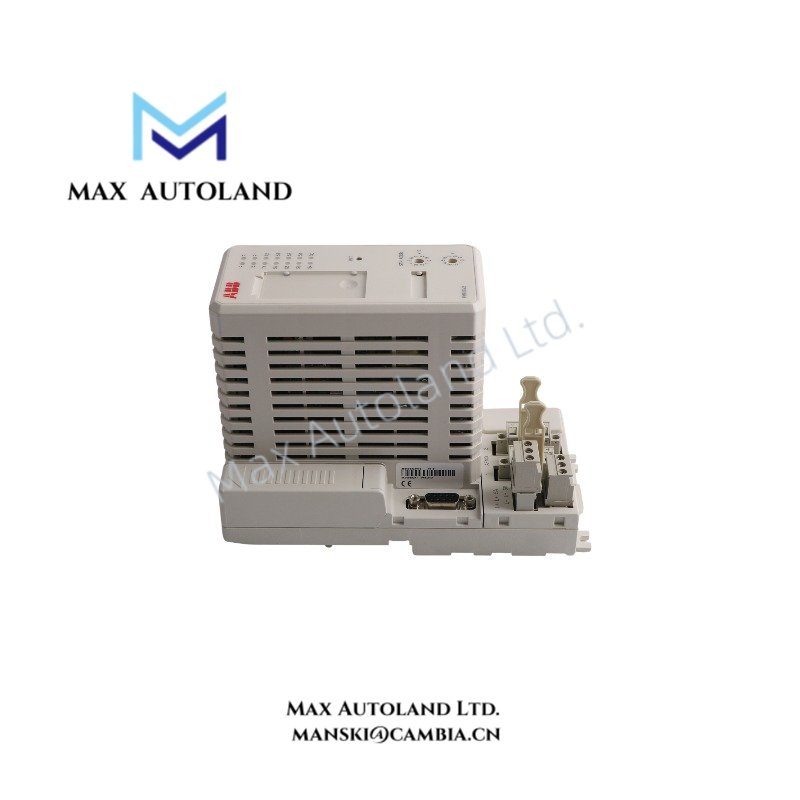

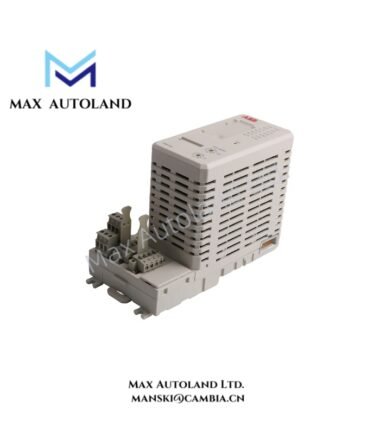

Configured for processor execution and S800 system control operations, the ABB 3BSE013220R1 PM810V2 (PM810V2 AC70 Processor Module) provides direct processing functions within ABB S800 I/O system architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM810V2 |
| Brand | ABB |
| Product Type | AC70 Processor Module |
| Spare Model | 3BSE013220R1 |
| System Platform | ABB S800 I/O System |
| Origin | Sweden |
| Weight | 0.52 kg |
| Dimensions | 17 x 8.5 x 12 cm (shipping size) |
| Operating Temp | Not specified in available data |
| Power Consumption | Not specified in available data |
| Tariff Code | 8537109060 |
| Manufacturer Status | Discontinued by manufacturer |
Industrial Control Processing and Bus Communication
The ABB PM810V2 functions as a processor module for ABB S800 control configurations. It executes application processing tasks and manages communication between the processor layer and connected system components. Moreover, the module design supports integration with ABB industrial control architectures through the S800 platform hardware structure.
For ABB PLC and DCS environments, processor modules typically require compatibility with backplane communication functions, firmware flash compatibility, and controlled I/O data exchange. Therefore, system engineering must verify firmware versions and hardware revision compatibility before module replacement or configuration changes.
The PM810V2 belongs to the ABB industrial controller component family and provides the processing interface required for AC70-based control operations. In addition, proper configuration of communication parameters ensures consistent data transfer between controller functions and connected I/O modules.
Frequently Asked Questions
Q: Is the PM810V2 compatible with all ABB S800 I/O configurations?
A: The PM810V2 requires compatibility verification with the specific S800 system configuration, firmware version, and connected hardware modules before installation.
Q: Does the PM810V2 support hot-swap replacement?
A: Available technical data does not confirm hot-swap capability. Replacement procedures should follow ABB system maintenance documentation and power isolation requirements.
Q: What factors should be checked before firmware or configuration updates?
A: Engineers should verify processor firmware compatibility, application configuration status, and communication settings before performing updates.
Field Installation Guidelines
- Install the PM810V2 module only in the designated ABB S800 system mounting position.
- Confirm that the controller rack is powered down according to site maintenance procedures before physical replacement.
- Check module connectors and backplane contacts for contamination, mechanical damage, or improper alignment.
- Route communication and power wiring separately from high-voltage switching circuits to reduce electrical interference.
- Use appropriate grounding methods for the control cabinet and verify shielding connections according to site electrical standards.
- After installation, verify processor recognition, system diagnostics, and communication status through the configured engineering tools.
