Overview

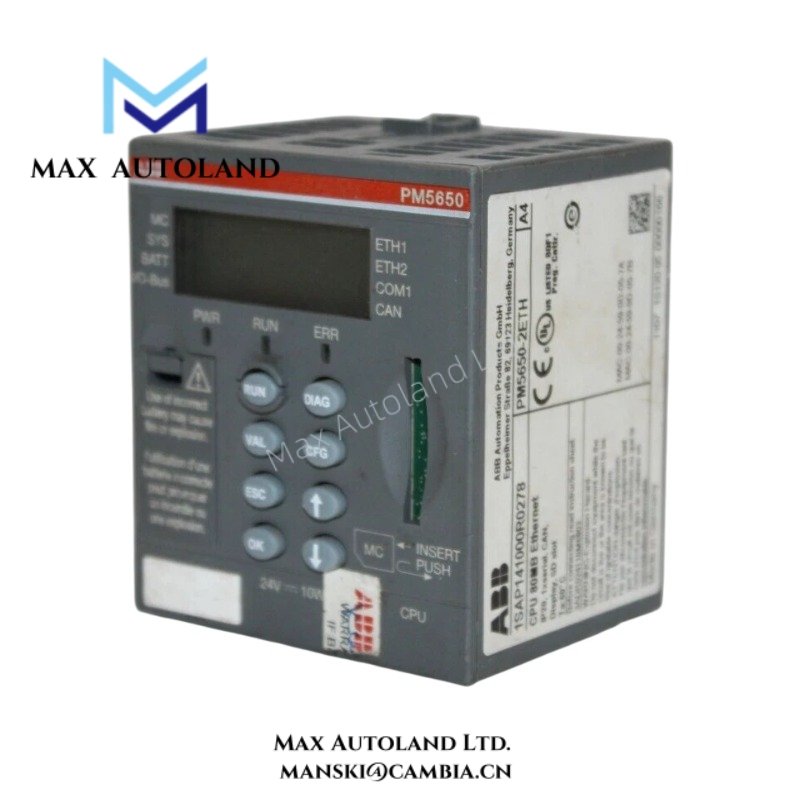

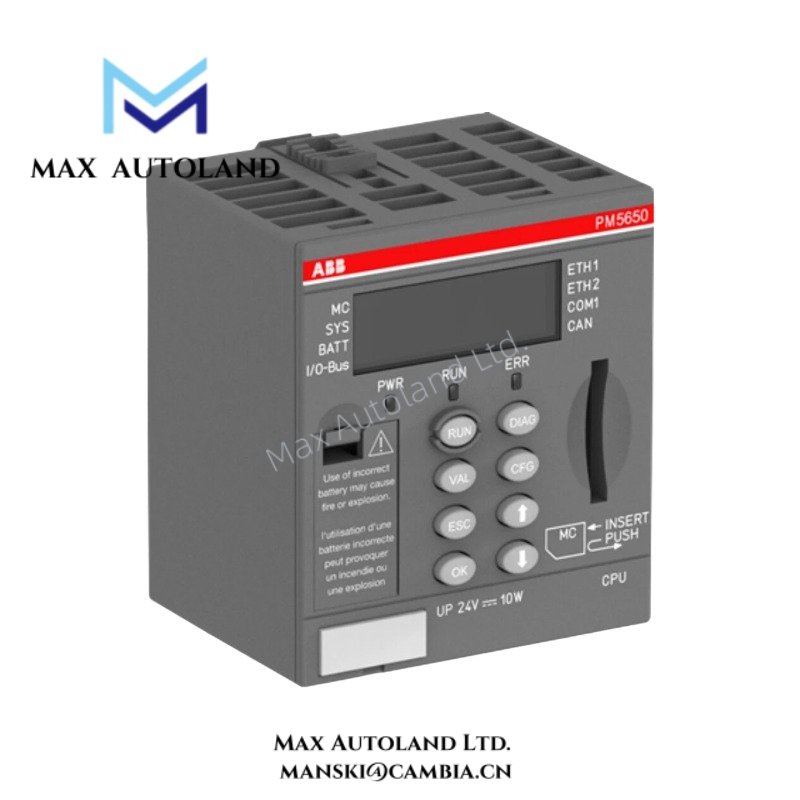

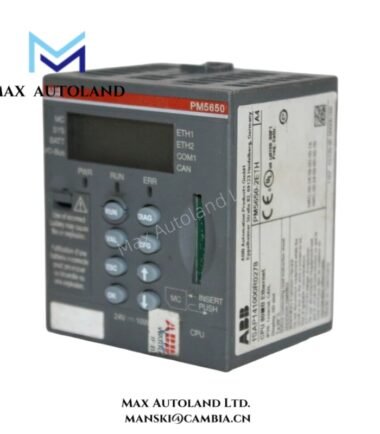

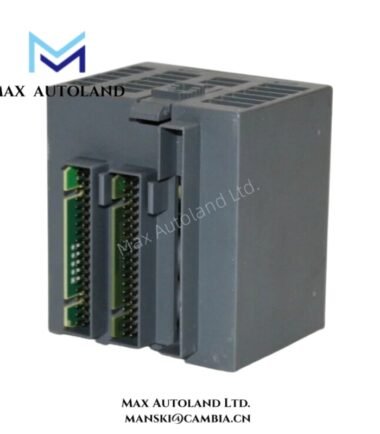

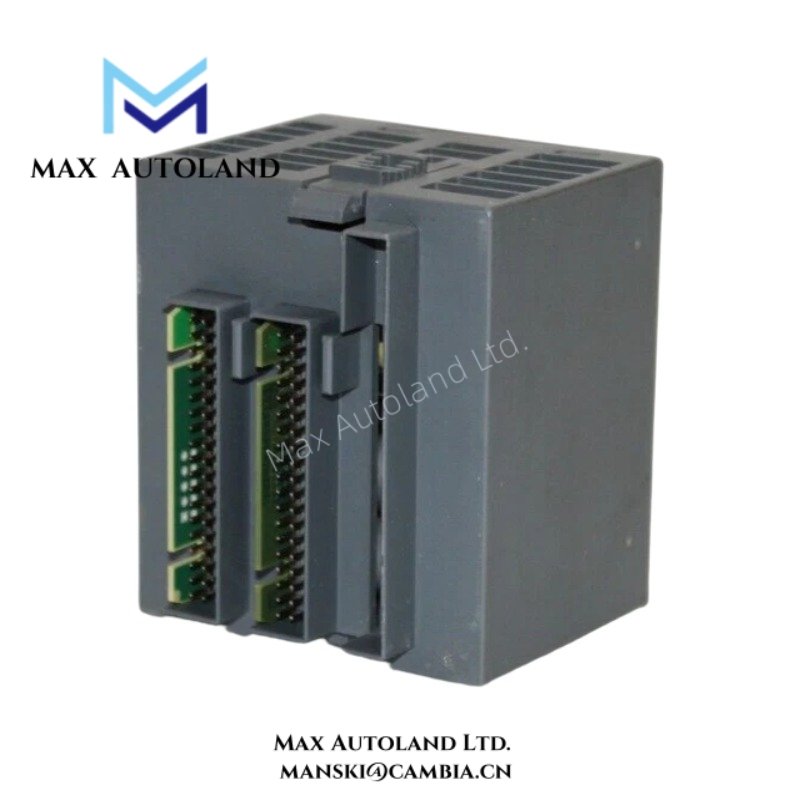

Configured for PLC logic execution, Ethernet communication handling, and cyclic I/O management in ABB Advant OCS/800xA environments, the ABB PM5650-2ETH (PM5650 CPU Processor Module) provides direct electrical execution through integrated controller processing and network interface resources.
Suffix Breakdown & Model Matrix
The supplied documentation identifies PM5650-2ETH as a fixed processor variant with integrated dual Ethernet functionality. No official suffix decomposition beyond the documented model designation is defined in the referenced material.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM5650-2ETH |
| Brand | ABB |
| Origin | Switzerland |
| Product Family | Advant OCS / 800xA |
| Hardware Type | CPU Processor Module |
| Processor Function | PLC program execution, communication management, I/O coordination |
| Ethernet Interfaces | 2 x integrated Ethernet ports |
| Communication Support | Ethernet-based controller and engineering connectivity |
| Mounting | DIN rail installation |
| Operating Temp | Refer to manufacturer environmental specification |
| Power Consumption | Refer to manufacturer technical documentation |
| Dimensions | Refer to manufacturer mechanical data |
| Weight | Refer to manufacturer mechanical data |
Firmware Flash Compatibility and Communication Architecture
The PM5650-2ETH uses firmware-managed controller execution combined with integrated Ethernet communication resources. Firmware revision alignment between the CPU, engineering software, and installed runtime environment must be verified before controller loading or project restoration.
Integrated Ethernet ports support deterministic controller communication paths within ABB automation architectures. Communication behavior depends on configured scan execution, network topology, and controller resource allocation rather than unmanaged broadcast exchange.
Frequently Asked Questions
Q: Does the PM5650-2ETH support hot insertion or hot removal during powered operation?
A: CPU processor replacement practice should follow the controller maintenance procedure defined by ABB. Processor extraction under energized conditions can interrupt execution state, communication links, and active I/O transactions.
Q: What must be checked before loading a backup application into the processor?
A: Firmware compatibility, engineering tool revision, hardware definition, and communication parameter consistency should be verified before downloading a stored project image.
Q: How do dual Ethernet ports affect controller communication behavior?
A: Integrated Ethernet interfaces permit separation or allocation of engineering access, controller networking, or communication traffic according to the configured automation architecture and software configuration.
Field Installation Guidelines
Install the module on a grounded DIN rail with cabinet clearance maintained for thermal airflow around the processor housing.
Separate Ethernet cabling from high-energy motor, inverter, and contactor wiring paths to reduce conducted and radiated interference coupling.
Terminate cable shields according to the plant grounding scheme. Avoid multiple uncontrolled shield grounding points across distributed cabinet sections.
Before energization, verify controller seating, terminal retention, network connector engagement, and power supply polarity against the hardware documentation.
