Overview

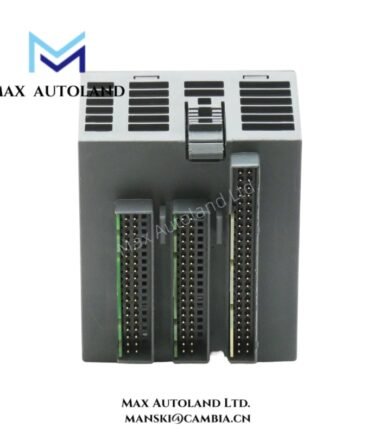

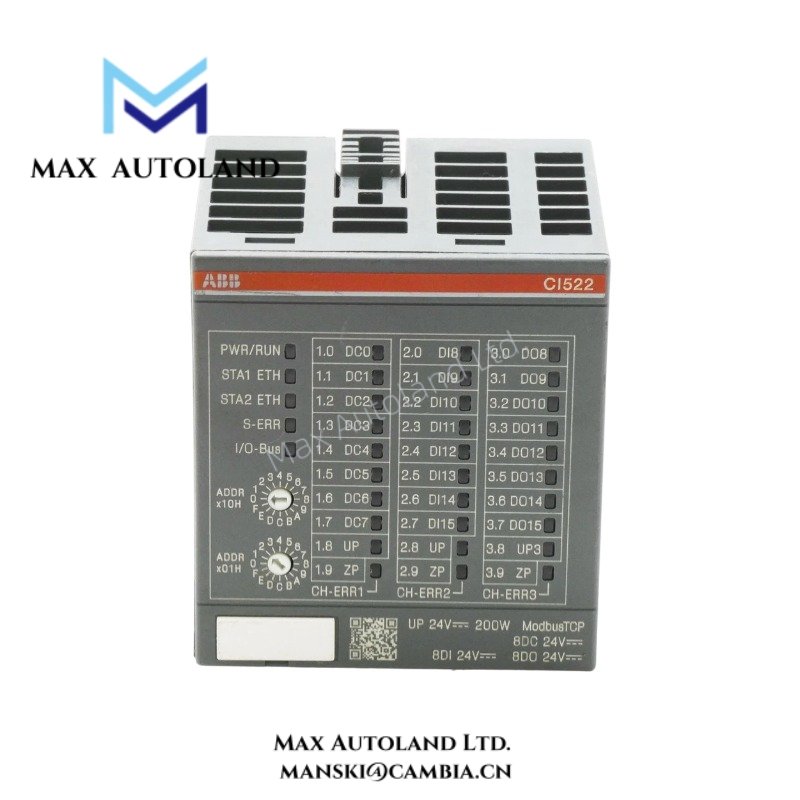

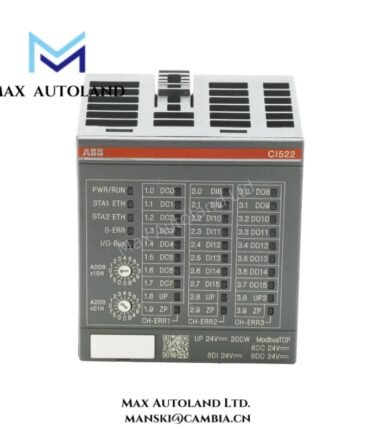

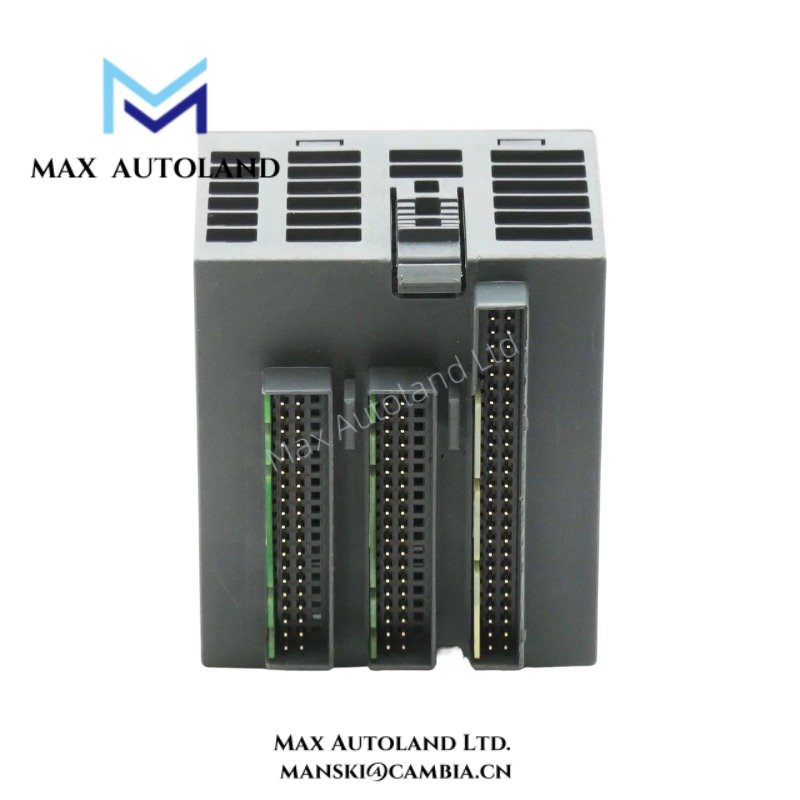

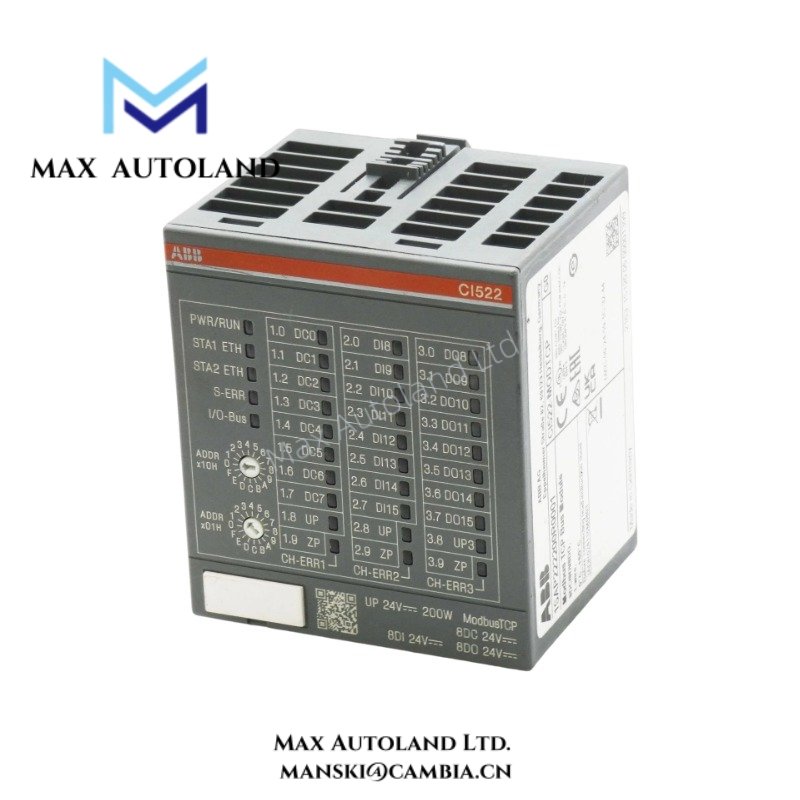

Configured for Modbus TCP communication handling in ABB Advant OCS and 800xA control environments, the ABB CI522-MODTCP 1SAP222200R0001 (CI522-MODTCP Communication Interface Module) provides direct protocol-level data exchange between Ethernet-based field devices and controller communication structures.
Suffix Breakdown & Model Matrix
The supplied documentation identifies CI522-MODTCP 1SAP222200R0001 as a fixed catalog configuration. No official suffix decomposition or configurable ordering matrix is specified in the referenced product data.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CI522-MODTCP 1SAP222200R0001 |
| Brand | ABB |
| Origin | ABB manufacturing source; exact country not explicitly specified |
| Product Type | Communication Interface Module |
| Communication Protocol | Modbus TCP |
| Network Interface | Ethernet communication interface |
| System Compatibility | ABB Advant OCS / ABB 800xA integration environment |
| Installation Method | DIN-rail / cabinet-mounted industrial installation practice |
| Weight | Not explicitly specified in supplied documentation |
| Dimensions | Not explicitly specified in supplied documentation |
| Operating Temp | Refer to ABB environmental specification for installed platform |
| Power Consumption | Not explicitly specified in supplied documentation |
Firmware Flash Compatibility and Network Determinism
The CI522-MODTCP module operates within ABB controller communication architectures where firmware revision alignment between communication hardware and engineering environment affects parameter interpretation and protocol behavior. During commissioning, firmware package compatibility should be verified against the target Advant OCS or 800xA software release.
In Ethernet-connected automation networks, Modbus TCP telegram execution depends on deterministic switch behavior, VLAN policy, network segmentation, and controller scan synchronization. Communication loading increases with polling density, register block size, and simultaneous client sessions.
Frequently Asked Questions
Q: Does the CI522-MODTCP support hot insertion during active controller operation?
A: Hot-swap behavior depends on the hosting controller platform and rack implementation. Module replacement should follow the applicable ABB maintenance procedure to avoid communication interruption or parameter inconsistency.
Q: What installation factors affect Modbus TCP communication stability?
A: Shielded Ethernet routing, controlled cabinet grounding, segregation from high-energy motor cabling, and managed switch configuration influence packet timing and electromagnetic susceptibility.
Q: Are firmware revisions relevant during system expansion or module replacement?
A: Yes. Firmware compatibility between the communication module, controller firmware, and engineering toolset should be validated before commissioning or hardware substitution.
Field Installation Guidelines
Install the module in accordance with ABB rack or mounting instructions and maintain unrestricted airflow around adjacent hardware. Route Ethernet communication cabling separately from variable frequency drive output conductors, relay switching bundles, and high-current DC wiring.
Terminate cable shields according to site grounding practice and avoid multi-point shield loops unless defined by the plant EMC standard. Before energization, verify IP addressing, subnet configuration, communication role assignment, and controller-side mapping consistency.
