Overview

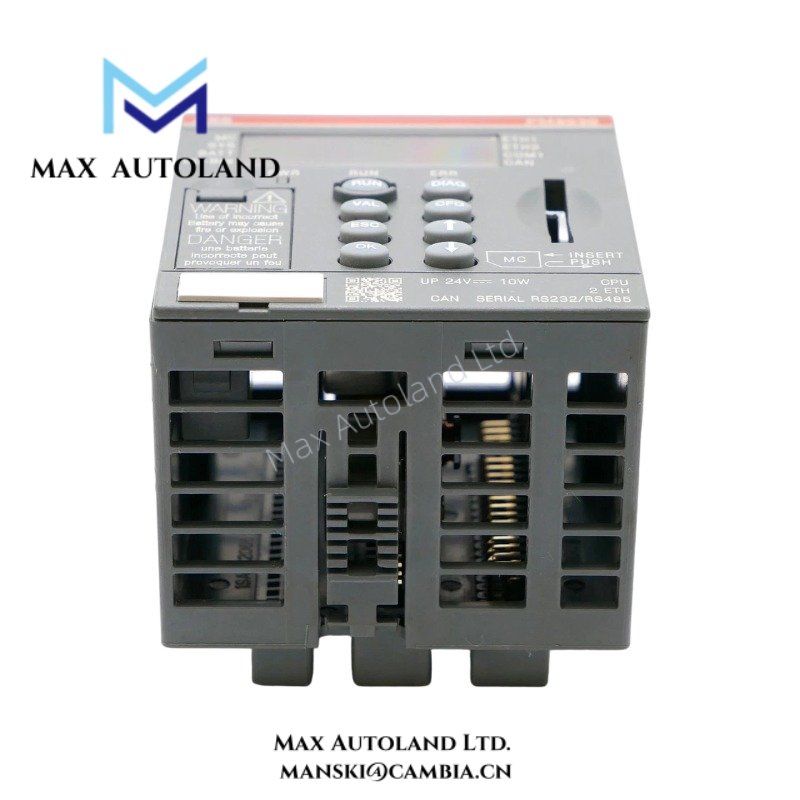

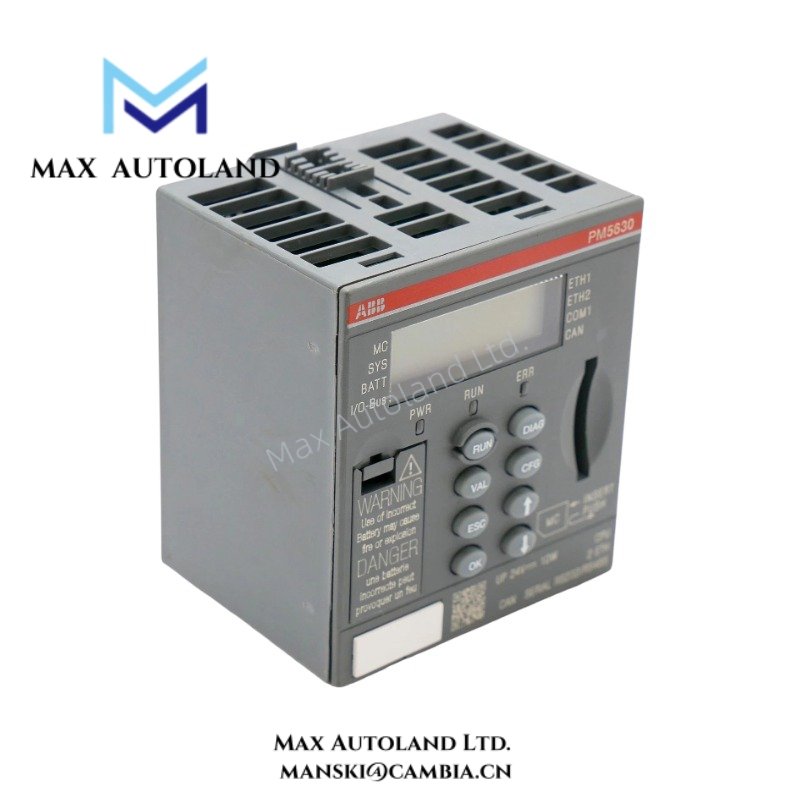

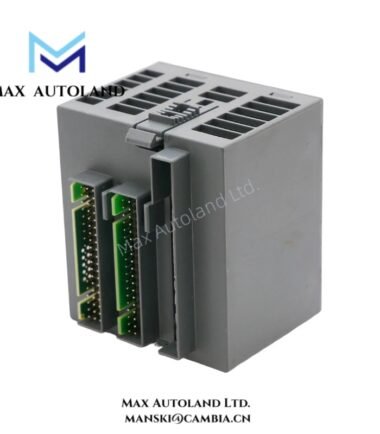

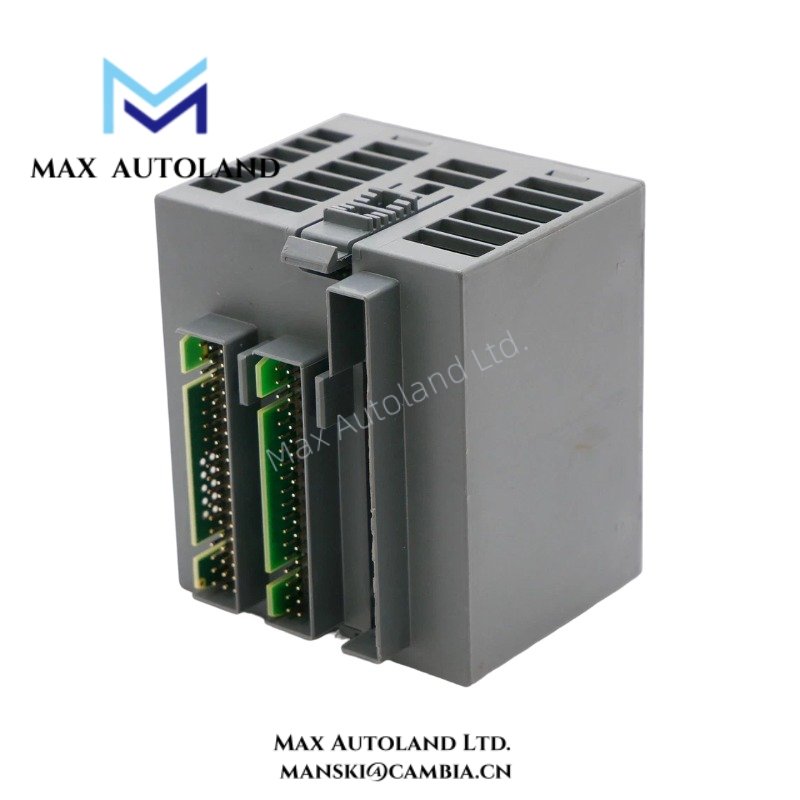

Configured for PLC program execution and dual Ethernet communication in ABB Advant OCS/800xA environments, the ABB PM5630-2ETH 1SAP131000R0278 (PM5630-2ETH CPU Processor Module) provides direct physical execution through onboard processing resources, integrated communication interfaces, and local control memory handling.
Suffix Breakdown & Model Matrix
The supplied designation identifies a fixed hardware configuration.
- PM5630-2ETH: CPU processor variant with integrated dual Ethernet communication capability.
- 1SAP131000R0278: ABB catalog / ordering reference associated with the PM5630-2ETH hardware version.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM5630-2ETH 1SAP131000R0278 |
| Brand | ABB |
| Origin | ABB manufacturing source |
| Product Family | Advant OCS / 800xA compatible PLC controller platform |
| Product Type | CPU Processor Module |
| Processor Function | Logic execution, communication management, control task handling |
| Communication Interfaces | Dual Ethernet interfaces |
| Programming Support | PLC application execution environment |
| Mounting | Control cabinet / DIN rail based industrial installation practice |
| Operating Temp | Refer to ABB published environmental specification |
| Power Consumption | Refer to ABB technical datasheet |
| Dimensions | Refer to ABB dimensional drawing |
| Weight | Refer to ABB published product data |
Firmware Flash Compatibility and Deterministic Ethernet Handling
The PM5630-2ETH architecture combines processor execution with integrated Ethernet transport paths intended for controller-level data exchange. Firmware compatibility must align with the target ABB engineering environment and CPU family revision. During maintenance activity, firmware loading and project deployment should be matched against supported controller package versions to avoid startup rejection, configuration mismatch, or communication initialization faults.
Dual Ethernet interfaces permit segmented network design for engineering access, controller communication, or supervisory integration. Network behavior depends on configured topology, addressing discipline, and supported protocol implementation within the installed runtime environment.
Frequently Asked Questions
Q: Does the PM5630-2ETH support unrestricted hot-swap replacement during operation?
A: CPU replacement procedures depend on controller rack design, power architecture, and active process state. Standard practice is controlled shutdown or maintenance isolation before processor removal or insertion.
Q: Are firmware revisions interchangeable across all PM56xx controller variants?
A: Firmware and project compatibility must be validated against the exact CPU variant, engineering software release, and controller runtime support matrix defined by ABB documentation.
Q: Can both Ethernet ports be wired into the same plant network segment?
A: Physical connection is possible, but network architecture should follow the intended communication design, addressing rules, and protocol separation defined for the controller installation.
Field Installation Guidelines
Install the processor module using the mechanical retention method specified for the ABB controller platform. Maintain separation between Ethernet communication cabling and high-current power conductors. Terminate cable shielding according to site grounding policy and avoid multi-point shield loops unless required by the cabinet EMC design.
Before energizing the controller, verify connector seating, power polarity, communication addressing, and engineering software compatibility with the installed CPU firmware level.
