Overview

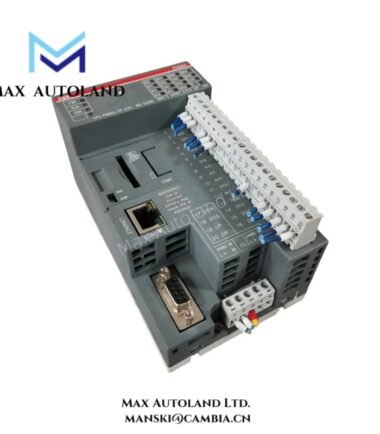

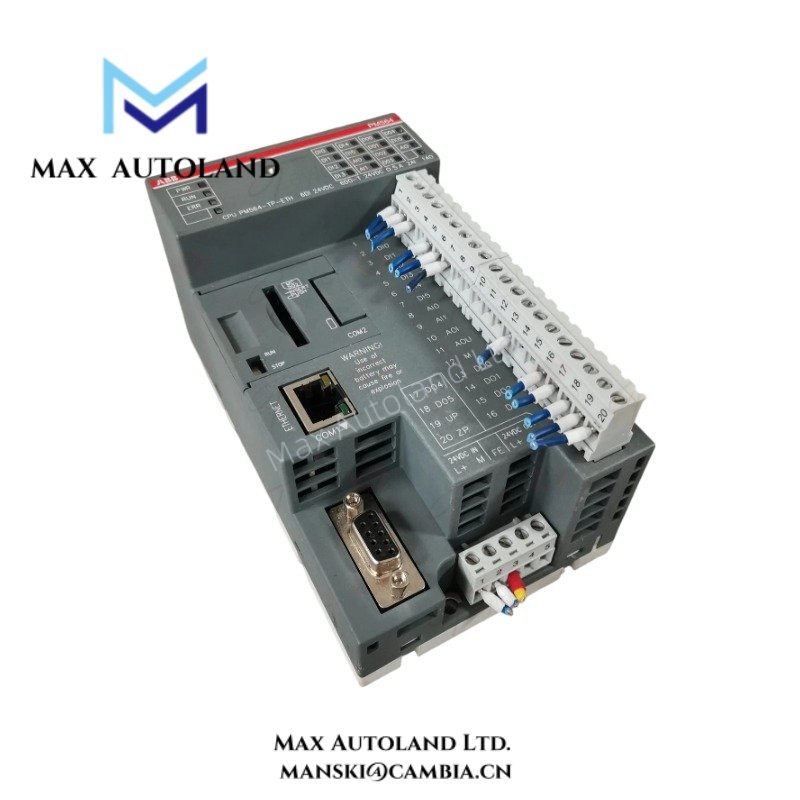

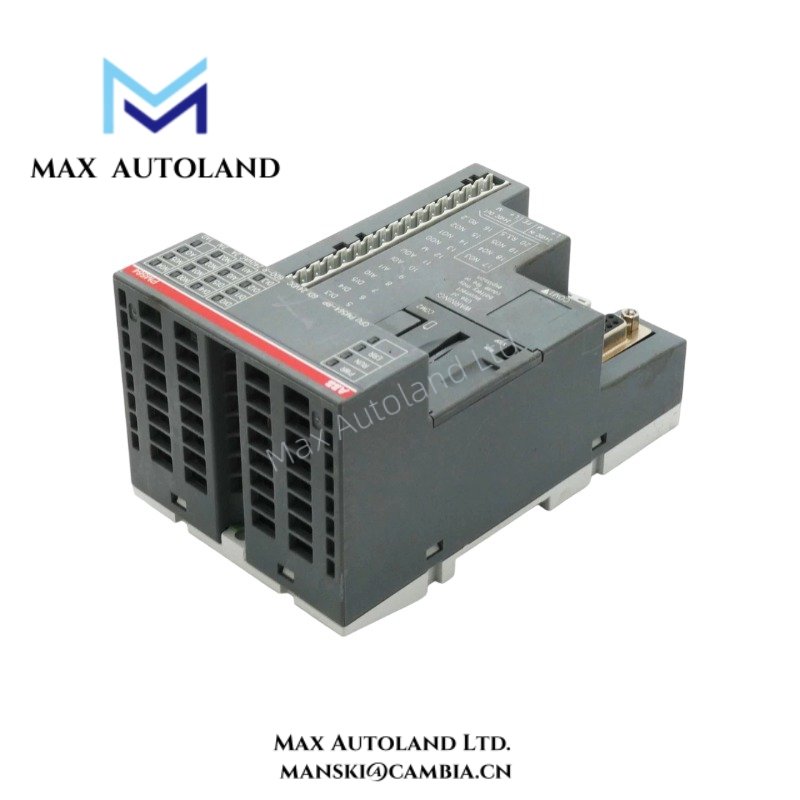

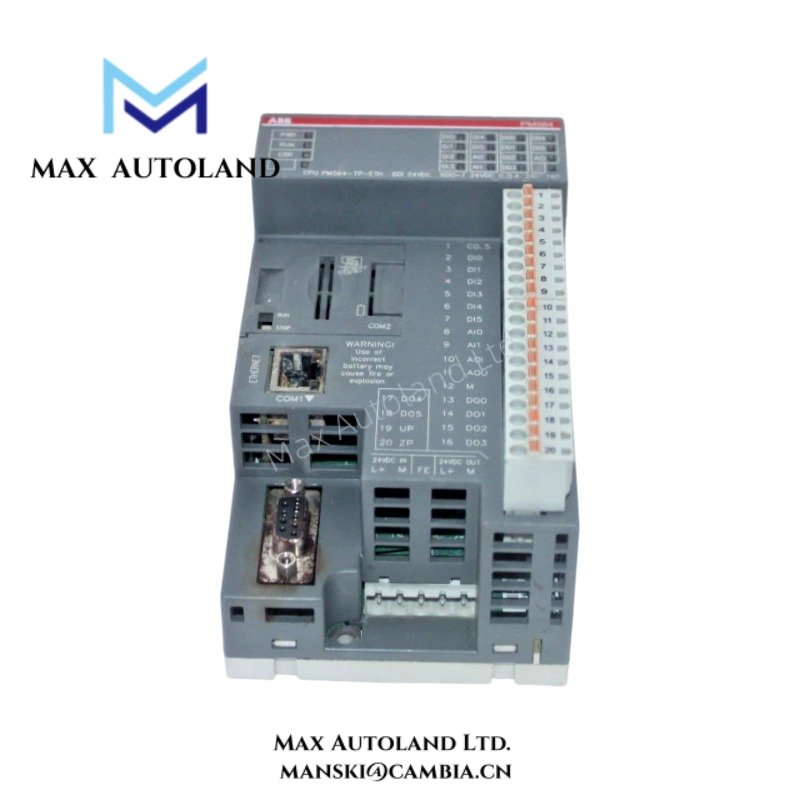

The ABB PM564, also cataloged as the PM564 CPU Processor Module, operates as a dedicated hardware component for PLC program execution, memory handling, and Ethernet-based communication management within ABB Advant OCS/800xA control platforms.
Suffix Breakdown & Model Matrix
PM564 is documented as a processor platform designation within the ABB controller family. The provided source does not define a mandatory suffix matrix for this base model. Variant-specific communication, memory, or interface options depend on the ordered processor version.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Parameter | Specification |
| Model | PM564 |
| Brand | ABB |
| Origin | Switzerland |
| Product Family | ABB Advant OCS / 800xA |
| Hardware Type | CPU Processor Module |
| Processor Function | Logic execution, task scheduling, communication handling |
| Communication Capability | Ethernet-enabled controller communication architecture |
| Program Storage | Integrated controller application memory |
| Mounting | DIN rail installation |
| Operating Temp | Refer to ABB environmental specification |
| Power Consumption | Refer to ABB technical documentation |
| Dimensions | Refer to ABB mechanical documentation |
| Weight | Refer to ABB mechanical documentation |
| Core Performance Indicator | CPU-controlled cyclic execution with integrated communication resources |
Backplane Communication and Firmware Flash Compatibility
The PM564 exchanges execution data, I/O status information, and controller service information through the ABB controller architecture and associated communication interfaces. System behavior depends on controller scan timing, configured application load, and communication service allocation.
Firmware flash compatibility must be verified before controller replacement, application restoration, or engineering download procedures. Processor firmware revision, project version, and engineering environment alignment affect successful deployment and runtime consistency.
Frequently Asked Questions
Q: Can the PM564 processor be replaced without removing system power?
A: Processor replacement should follow ABB maintenance procedures. Removal during energized operation can interrupt active program execution, communication services, and connected I/O exchange.
Q: What parameters require verification before firmware or application loading?
A: Verify firmware revision, controller hardware definition, communication configuration, and engineering software compatibility before download or restoration procedures.
Q: Does application size influence processor communication behavior?
A: Yes. Communication handling, cyclic execution timing, and controller response characteristics are affected by application complexity, configured services, and connected network workload.
Field Installation Guidelines
Install the processor on a grounded DIN rail inside a control enclosure with clearance maintained for thermal airflow and cable access.
Separate communication wiring from motor feeders, contactor circuits, and inverter output cabling to reduce electromagnetic interference coupling.
Apply shield grounding according to the cabinet grounding topology. Avoid uncontrolled shield terminations at multiple panel locations.
Before energizing the controller, verify processor retention, connector engagement, power supply polarity, and communication parameter configuration.
