Overview

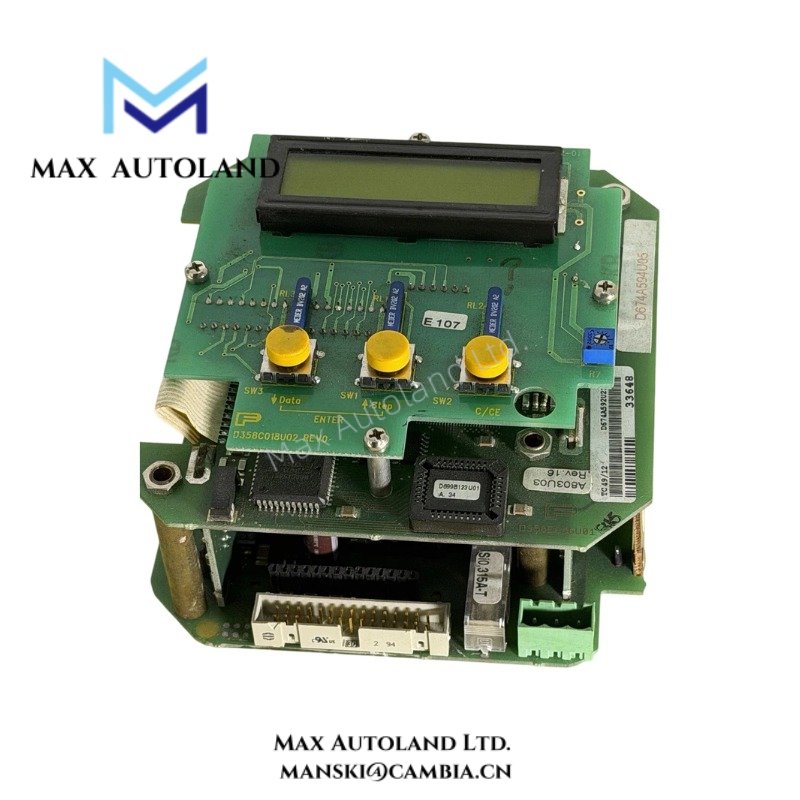

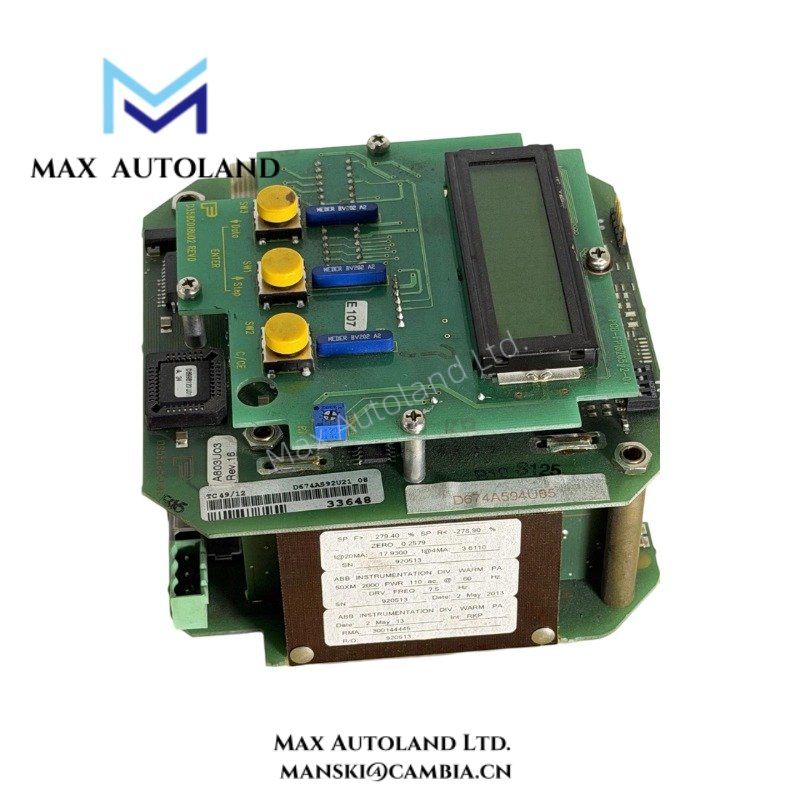

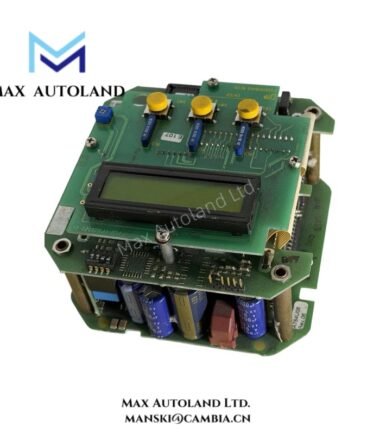

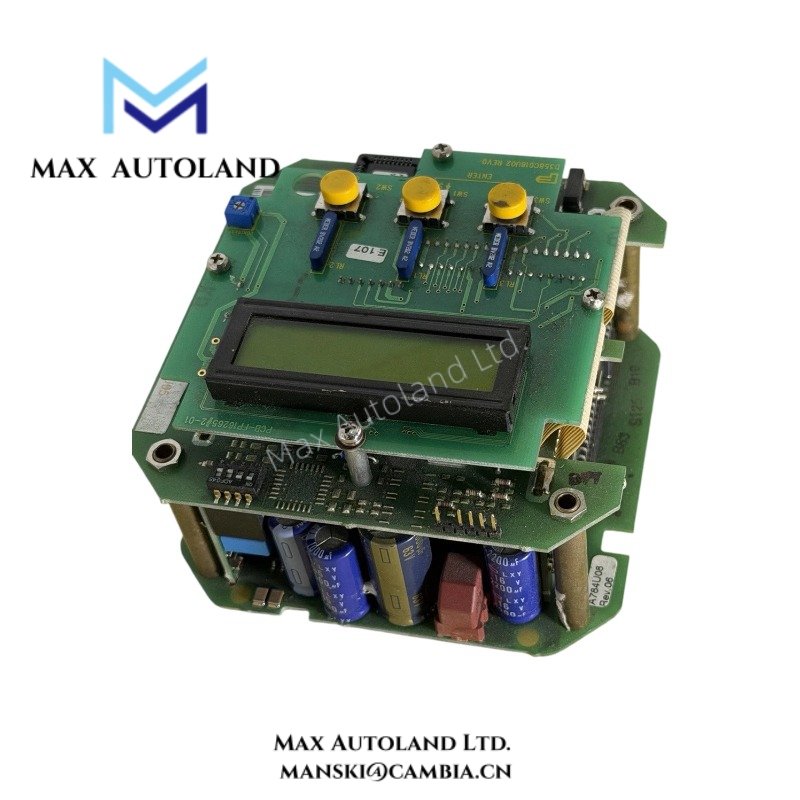

The ABB D358C018U02, also cataloged as the D358C018U02 Communication Interface Module, operates as a dedicated hardware component for communication data handling within ABB Advant OCS and 800xA control system architectures. The module exchanges operational data through the system hardware infrastructure and supports communication between associated control resources.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | D358C018U02 |
| Brand | ABB |
| Product Type | Communication Interface Module |
| System Family | ABB Advant OCS / ABB 800xA |
| Primary Function | System Communication Interface |
| Installation Method | Rack-Mounted Module |
| Backplane Connection | Supported |
| Communication Role | Data Exchange and Interface Processing |
| Origin | Not specified |
| Weight | Not specified |
| Dimensions | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
Firmware Flash Compatibility and Backplane Communication
The D358C018U02 integrates with the ABB hardware platform through the system backplane architecture. The module transfers communication data between installed control resources and connected network structures.
Furthermore, engineers can install the module within compatible control racks while maintaining communication continuity across the platform. In addition, firmware compatibility remains dependent on the host controller environment and associated system software revisions. Consequently, system validation should follow the configuration requirements defined for the installed control platform.
Frequently Asked Questions
Q: Does the D358C018U02 support hot replacement?
A: Available documentation does not explicitly specify hot-swap capability. Therefore, maintenance personnel should follow the replacement procedures defined for the installed control system.
Q: Does the module perform controller processing functions?
A: Available information identifies the unit as a communication-related hardware component. Control execution functions should be verified through the corresponding controller documentation.
Q: Is firmware configuration stored within the module?
A: Available documentation does not provide specific information regarding onboard firmware storage or configuration management. Verification should be performed using platform engineering documentation.
Field Installation Guidelines
- Verify rack slot allocation before installing the module.
- Inspect module connectors and backplane contacts before insertion.
- Route communication wiring separately from power conductors.
- Apply shield grounding practices according to site electrical standards.
- Ensure complete mechanical engagement with the rack backplane.
- Verify communication status through system diagnostics after startup.
- Record module identification and installation location for maintenance tracking.
