Overview

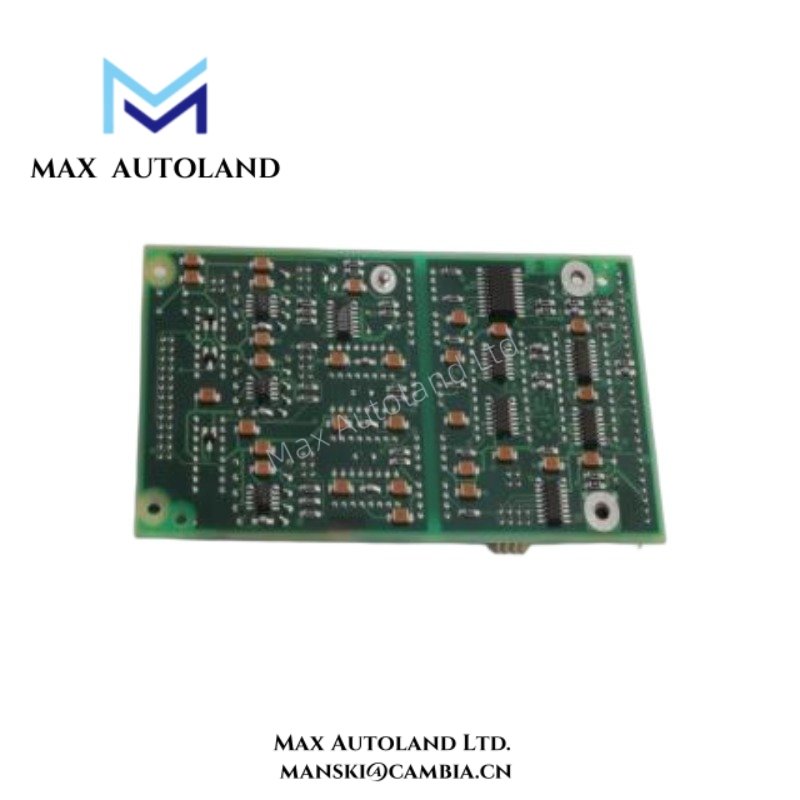

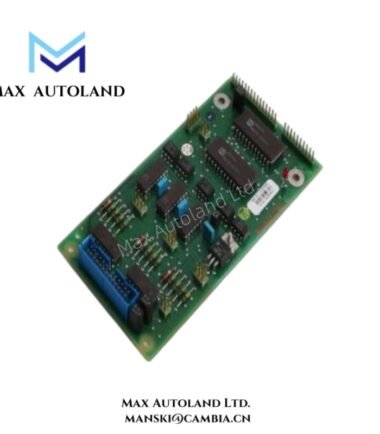

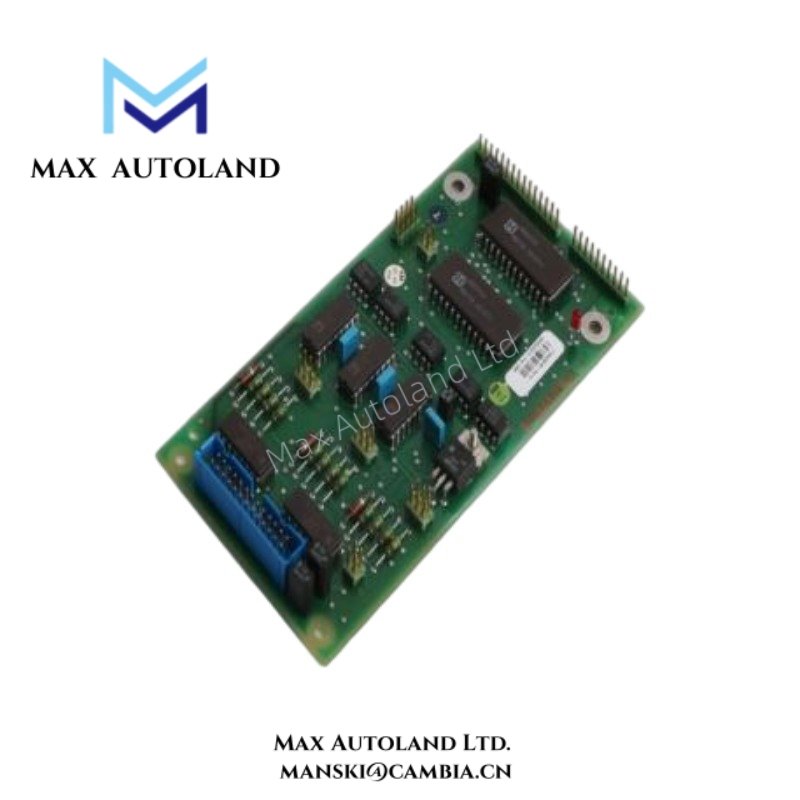

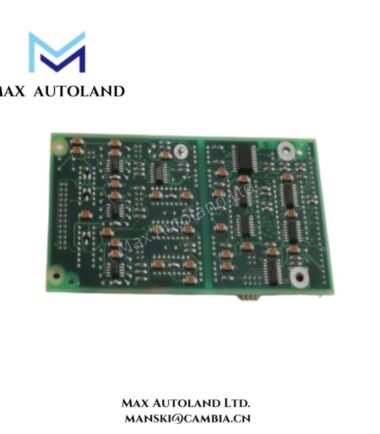

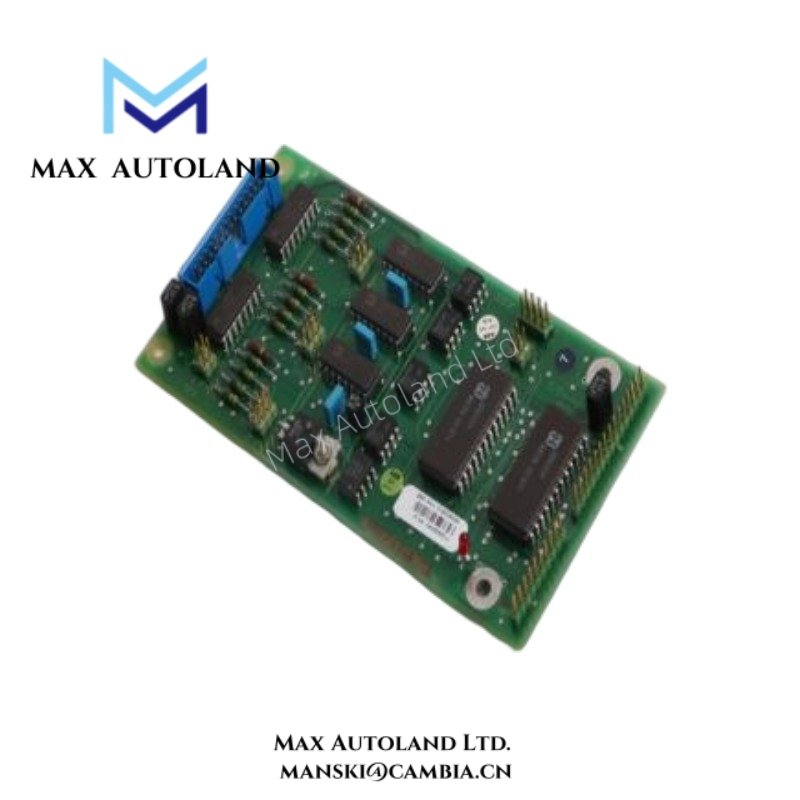

The ABB YPG108E YT204001-FV, also cataloged as the YPG108E Communication Interface Module, operates as a dedicated hardware component for communication data exchange within ABB Advant OCS and 800xA control platforms. The module transfers system communication traffic between controller resources and associated network interfaces through the native ABB hardware architecture.
Suffix Breakdown & Model Matrix
The available documentation identifies a single catalog designation:
| Model | Description |
|---|---|
| YPG108E YT204001-FV | Communication Interface Module |
No official suffix matrix or option breakdown is specified in the available documentation.
Hardware Specifications
| Parameter | Specification |
| Model | YPG108E YT204001-FV |
| Base Model | YPG108E |
| Brand | ABB |
| Product Type | Communication Interface Module |
| System Family | ABB Advant OCS / ABB 800xA |
| Primary Function | Communication Data Transfer |
| Installation Method | Rack-Mounted Module |
| Interface Type | System Communication Interface |
| Backplane Connection | Supported |
| Network Integration | Supported |
| Origin | Sweden |
| Weight | Not specified |
| Dimensions | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
Firmware Flash Compatibility and System Integration
The YPG108E exchanges communication data through the ABB backplane infrastructure and associated control network resources. Furthermore, the module interfaces directly with compatible controller hardware while maintaining communication continuity across the installed platform.
In addition, firmware compatibility remains dependent on the host control system configuration. Consequently, engineers can integrate the module into existing Advant OCS and 800xA architectures without modifying the primary controller hardware structure. Moreover, the native ABB communication framework supports deterministic data transfer between interconnected system components.
Frequently Asked Questions
Q: Does the YPG108E support energized replacement?
A: Available documentation does not explicitly specify hot-swap capability. Therefore, technicians should follow the maintenance procedures defined for the installed ABB control system.
Q: Does the module communicate directly with field devices?
A: No. The YPG108E functions as a system communication interface. Field device communication depends on the controller, I/O, and network infrastructure connected to the platform.
Q: Does firmware management occur within the module?
A: Available documentation does not provide specific onboard firmware storage details. Engineers should verify firmware management procedures through the host controller and engineering workstation documentation.
Field Installation Guidelines
- Verify the assigned rack position before inserting the module.
- Inspect connectors and backplane contacts for contamination or physical damage.
- Route communication cables separately from high-current power wiring.
- Connect cable shields according to site grounding standards.
- Ensure complete module engagement with the rack backplane before energizing the cabinet.
- Verify communication status using platform diagnostics after installation.
- Record module identification, rack location, and maintenance history for future servicing.
