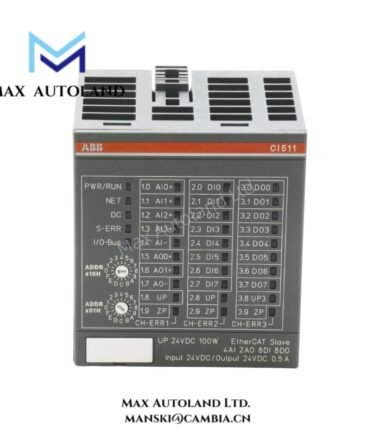

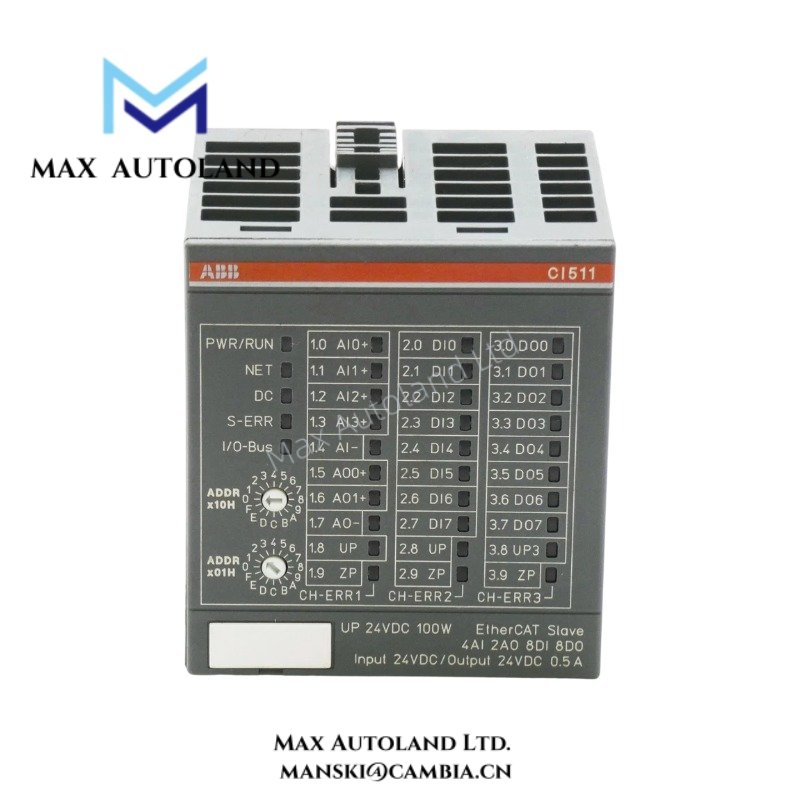

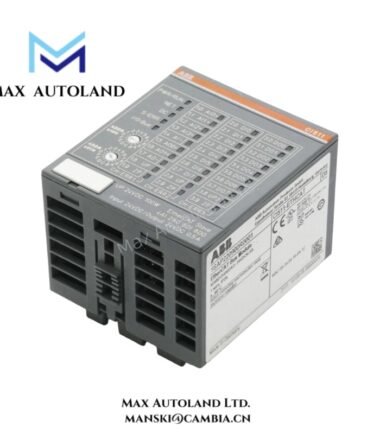

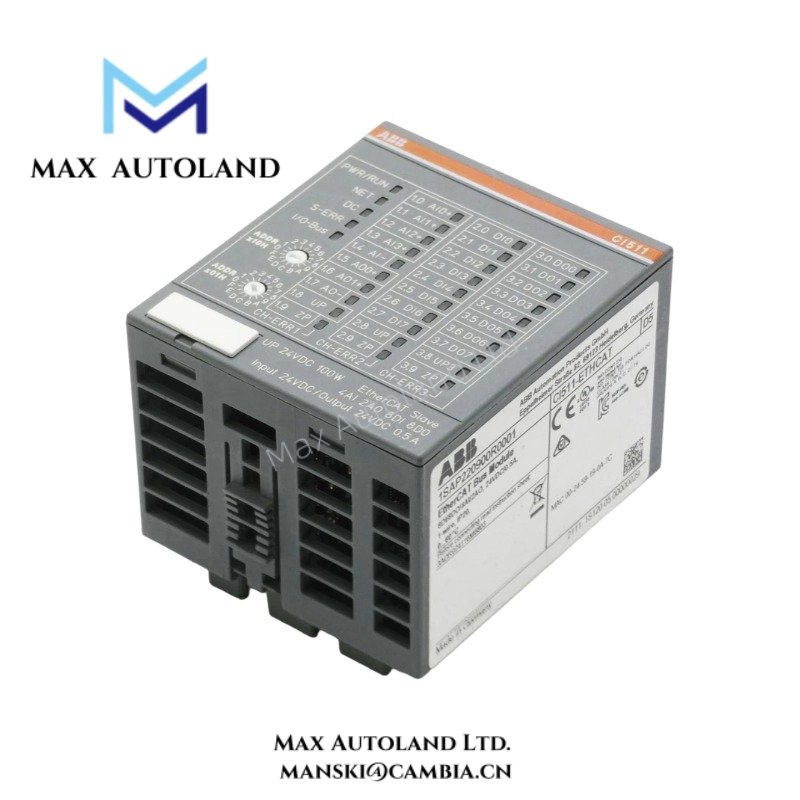

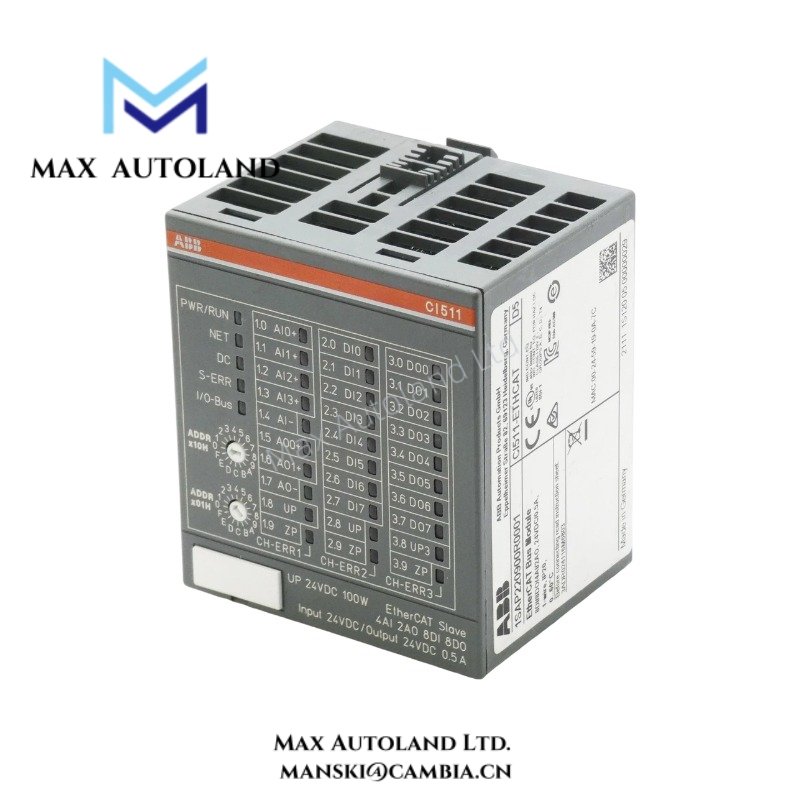

ABB Advant OCS/800xA CI511-ETHCAT 1SAP220900R0001 Communication Interface Module

Suffix Breakdown & Model Matrix

The identifier 1SAP220900R0001 represents ABB internal ordering and lifecycle traceability for the CI511-ETHCAT module. The suffix does not define functional segmentation or selectable hardware variants; it is used for production revision control, logistics tracking, and documentation alignment within ABB automation product systems.

Hardware Specifications

EtherCAT Deterministic Network Execution and Backplane Synchronization

The CI511-ETHCAT module executes cyclic EtherCAT frame handling between controller backplane logic and distributed field devices. It processes incoming and outgoing process data within a deterministic cycle structure controlled by the PLC scan and EtherCAT master timing.

The module maintains frame forwarding, process image mapping, and synchronized I/O state updates across the network segment. As cycle time decreases, system behavior depends on network load, topology depth, and device count per segment.

Backplane integration ensures that process data is mapped into PLC memory areas with defined refresh cycles. In addition, the module aligns EtherCAT timing with internal controller scheduling to maintain consistent data coherence across distributed nodes.

Frequently Asked Questions

Q: Can the CI511-ETHCAT module be replaced while the controller remains energized?
A: Replacement depends on AC500 rack configuration and system safety procedures. In most installations, module removal requires controlled shutdown or backplane isolation to avoid EtherCAT network interruption and PLC scan inconsistency.

Q: Does the module support mixed firmware environments across AC500 and 800xA systems?
A: No. Firmware compatibility depends on controller firmware version, engineering toolchain, and hardware revision alignment. ABB requires verification before integration into mixed-version system architectures.

Q: How is EtherCAT timing synchronized with PLC execution cycles?
A: The module aligns EtherCAT frame exchange with controller scan scheduling and internal backplane timing. Cycle accuracy depends on PLC load, network topology, and configured communication cycle time.

Field Installation Guidelines

Install the CI511-ETHCAT module into the designated ABB controller rack slot with proper backplane connector alignment. Ensure mechanical seating is fully engaged to maintain stable electrical contact with the backplane bus.

Separate EtherCAT Ethernet cabling from high-current switching conductors, relay outputs, and motor drive wiring. Maintain consistent shield termination at designated grounding points according to ABB cabinet EMC design rules.

Before commissioning, verify node addressing, network topology configuration, and EtherCAT master assignment. Confirm PLC project consistency and perform controlled network initialization prior to enabling cyclic process data exchange.
