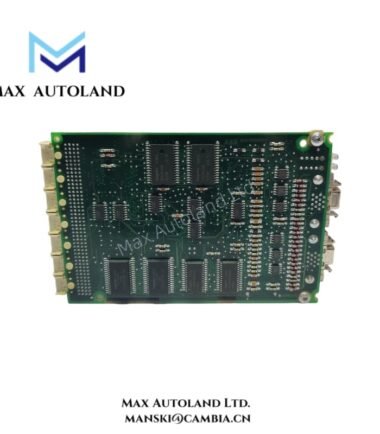

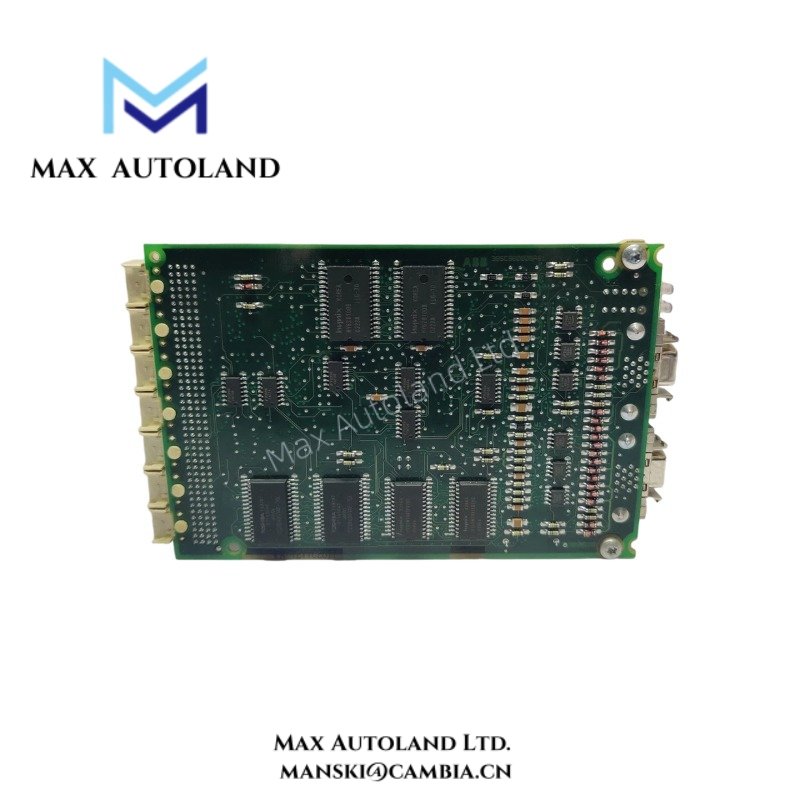

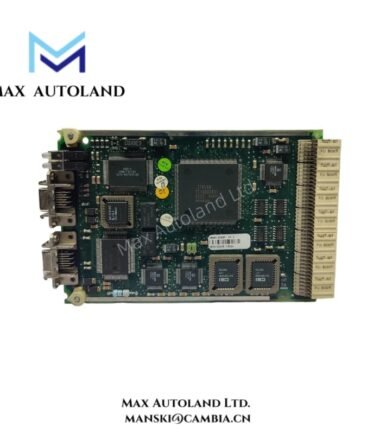

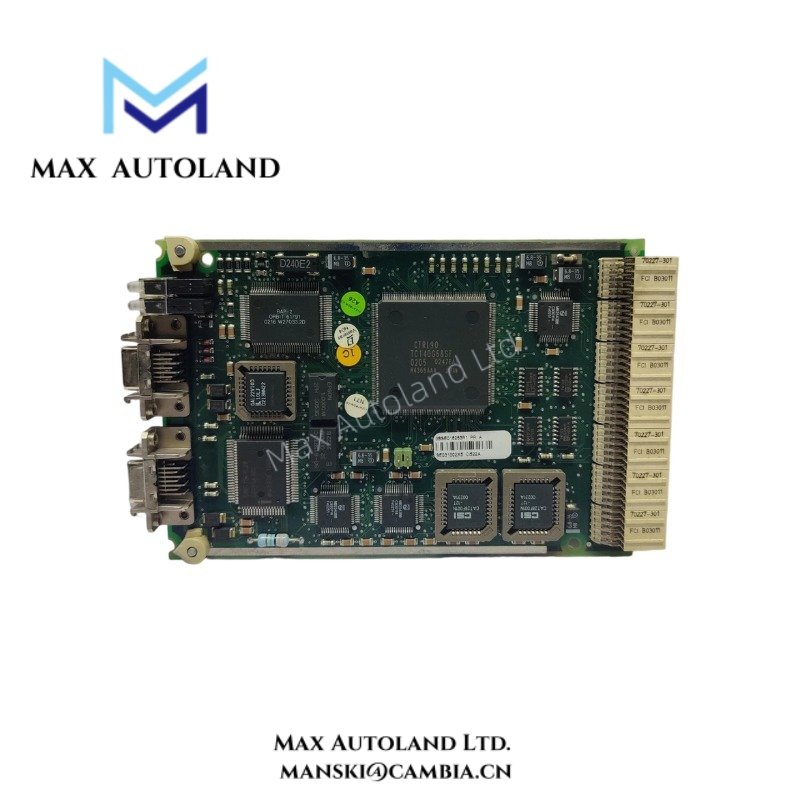

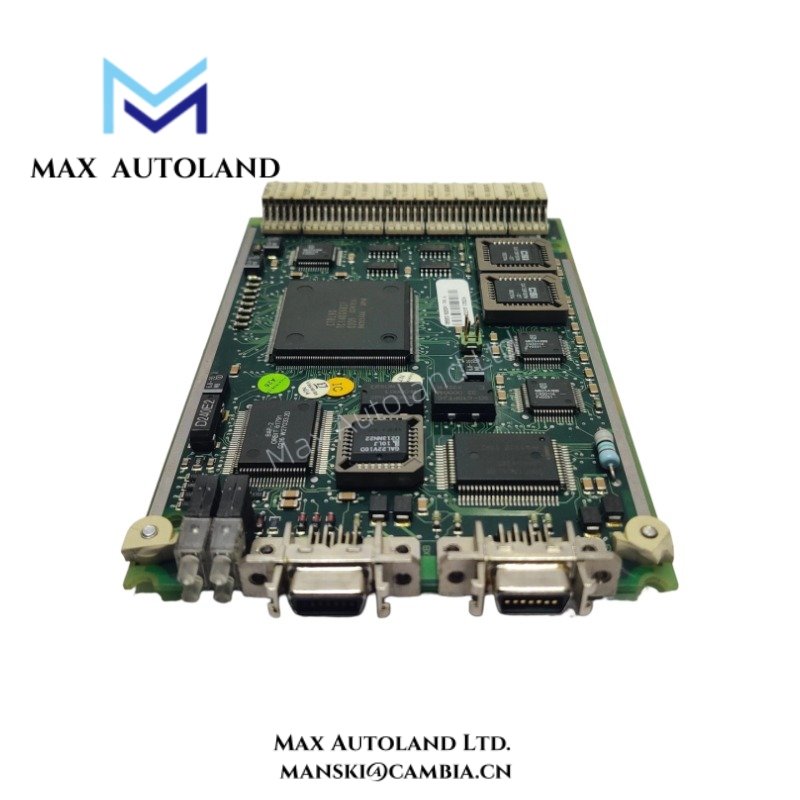

ABB Advant OCS/800xA CI522A 3BSE018283R0001 Advant AF100 Interface

Suffix Breakdown & Model Matrix

The identifier 3BSE018283R0001 represents the ABB internal ordering and hardware revision traceability code for the CI522A module. The suffix does not define user-configurable functional segmentation; instead, it is used for manufacturing, lifecycle tracking, and hardware revision control within ABB Advant product governance.

Hardware Specifications

Backplane Communication and AF100 Protocol Handling

The CI522A module executes deterministic data transfer between Advant controller backplane resources and AF100 field communication nodes. It maintains cyclic exchange of process variables and event data through the internal ABB system communication scheduler.

Within AF100 integration layers, the module maps process data objects into structured controller memory blocks. It also maintains synchronization between field-level communication timing and Advant system execution cycles.

The backplane interface handles address mapping, signal buffering, and bus arbitration. As a result, communication latency remains dependent on system scan configuration and chassis loading conditions.

Frequently Asked Questions

Q: Can the CI522A module be hot-swapped under energized controller operation?
A: Replacement depends on the Advant rack configuration and system maintenance procedure. In most installations, removal requires controlled shutdown or rack isolation to avoid backplane communication interruption.

Q: Does the CI522A support firmware-independent operation across Advant OCS and 800xA systems?
A: No. Module behavior depends on system firmware level, controller type, and engineering configuration database. Compatibility must be verified before integration into mixed-version environments.

Q: How is AF100 communication isolation handled within the module?
A: Signal isolation is implemented through internal backplane coupling and system-level grounding architecture. External cabling must follow ABB Advant EMC routing rules to maintain signal integrity.

Field Installation Guidelines

Insert the CI522A module into the designated Advant controller rack slot with full backplane alignment. Ensure that the module connector engages fully without mechanical stress on the chassis rails.

Route AF100 communication conductors separately from high-current switching and relay output wiring. Maintain consistent shield termination practices according to ABB Advant system grounding design.

Before commissioning, verify node addressing on the AF100 network, confirm backplane slot assignment, and validate controller configuration download consistency within the Advant engineering toolchain.
