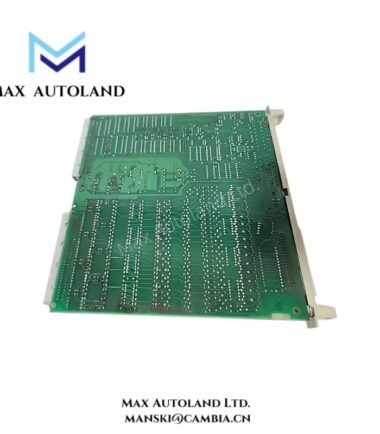

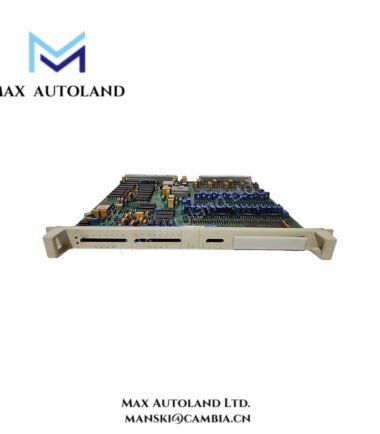

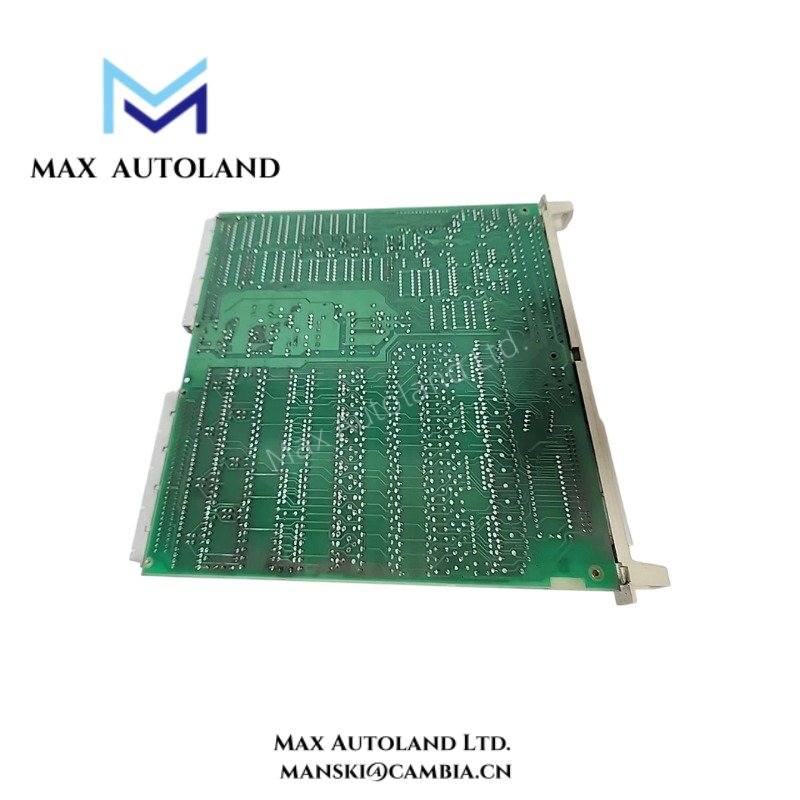

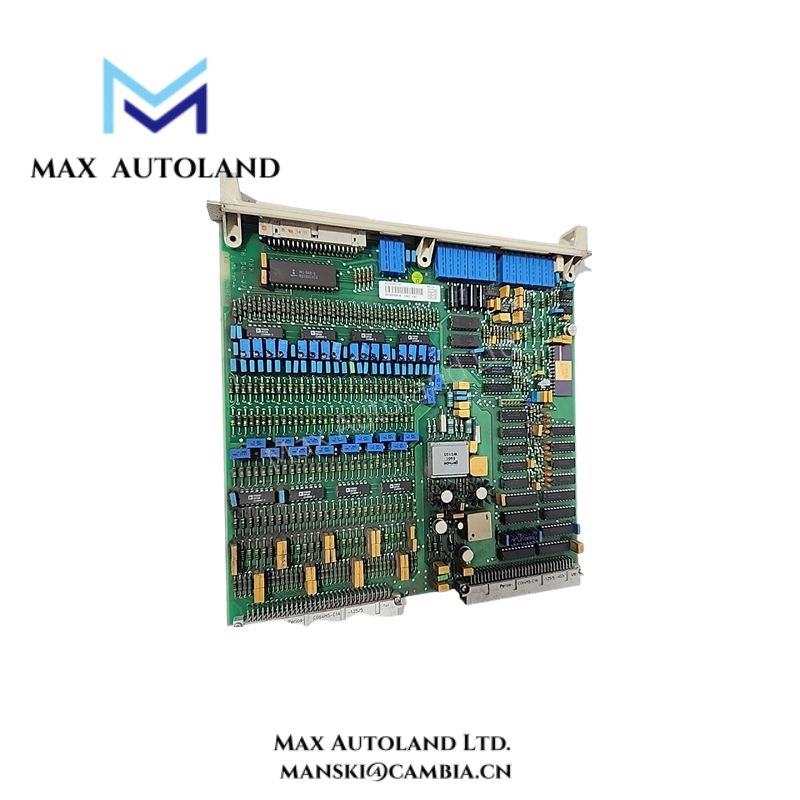

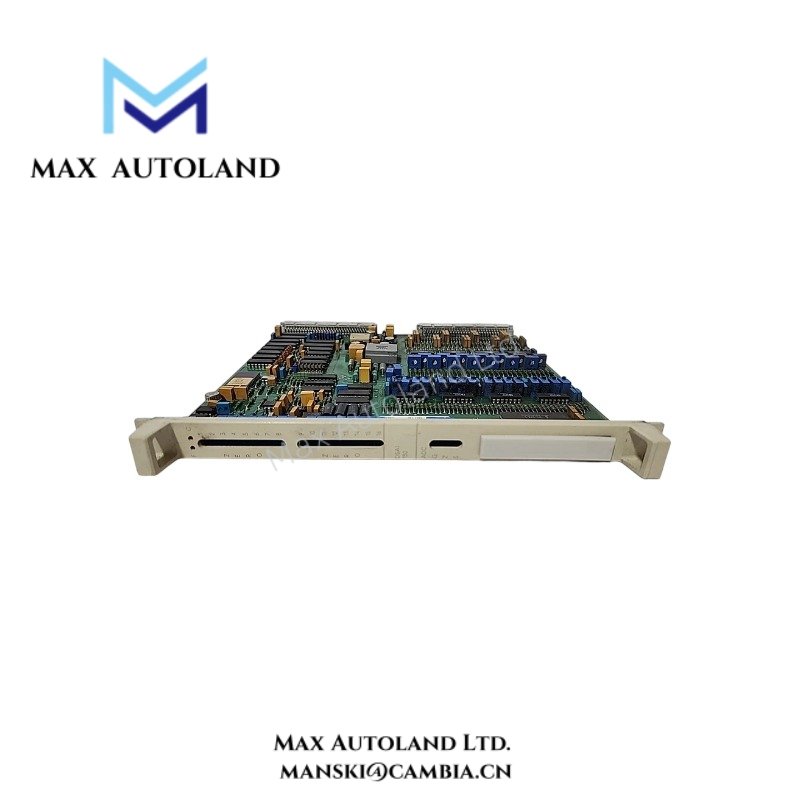

ABB Advant OCS/800xA DSAI130 57120001-P Analog Input Modules

Overview

Configured for differential analog signal acquisition in ABB Advant OCS and 800xA control architectures, the ABB DSAI130 57120001-P (DSAI130 Analog Input Board) provides direct electrical execution. The module processes 16 differential analog input channels supporting voltage and current measurements. It is intended for signal collection from field instrumentation and transfer to compatible ABB controller platforms.

Hardware Specifications

Profinet and Backplane Communication Integration

Within ABB Advant OCS and migration paths toward 800xA environments, the DSAI130 exchanges process data through the associated controller backplane infrastructure rather than direct field Ethernet interfaces. The module is designed for deterministic analog data transfer between field signal acquisition circuits and controller processing resources. System expansion is achieved through the ABB I/O architecture, allowing channel density scaling without modification of field signal characteristics. Firmware and hardware compatibility should be verified against the installed controller generation and hardware license requirements before replacement or commissioning.

Frequently Asked Questions

Q: Does the DSAI130 support differential analog measurements?
A: Yes. The module provides 16 differential analog input channels supporting +/-10 V and +/-20 mA signal ranges.

Q: Can the DSAI130 be used with AC450 controllers in all installations?
A: For installations where common mode voltage (CMV) is 50 V or below, ABB specifies use of DSAI130A (3BSE018292R1). The DSAI130 is intended for applications including Safeguard controllers, MasterPiece 2×0 systems, or installations with CMV greater than 50 V.

Q: Is a controller-specific requirement involved when ordering or replacing the module?
A: ABB documentation indicates that the installed controller hardware license number must be specified when ordering the DSAI130 spare part.

Field Installation Guidelines

• Verify controller compatibility and applicable CMV requirements before installation.
• De-energize the rack or follow approved maintenance procedures prior to insertion or removal.
• Route analog signal cables separately from power and motor conductors to reduce induced noise.
• Terminate cable shields according to plant grounding standards and avoid multiple shield grounding points unless specified by the system design.
• Confirm polarity and signal type before field termination of voltage or current inputs.
• After installation, validate channel readings using calibrated signal sources and controller diagnostics.
• Inspect backplane connectors for contamination or mechanical damage before module insertion.
