Overview

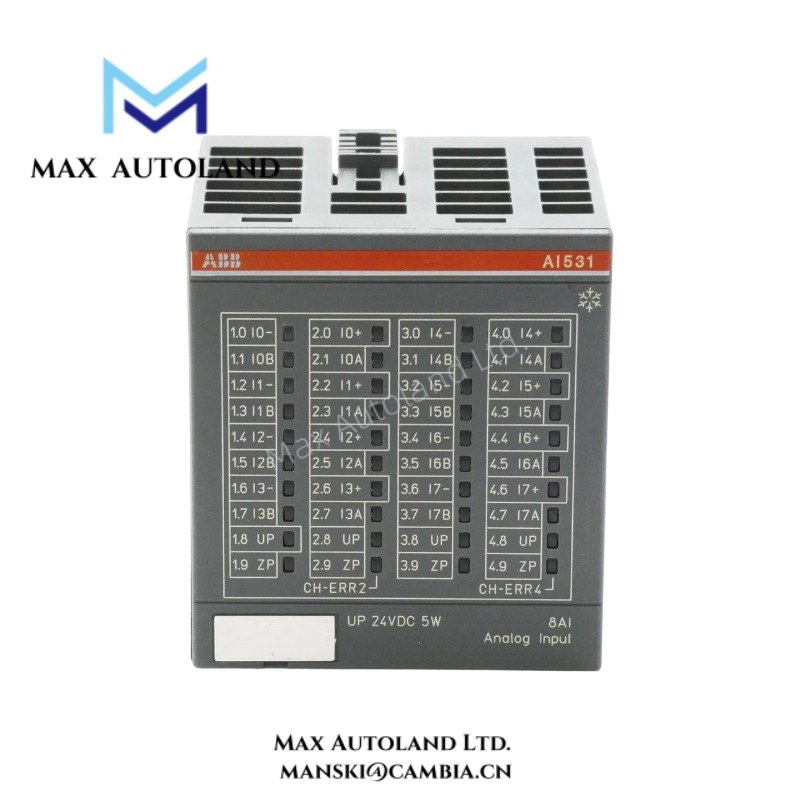

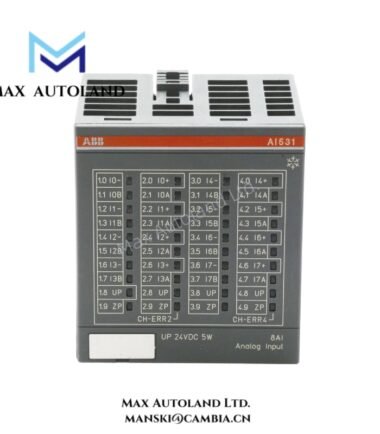

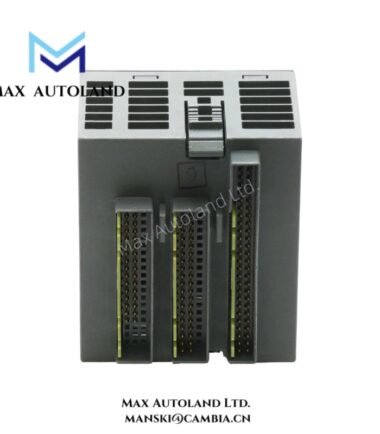

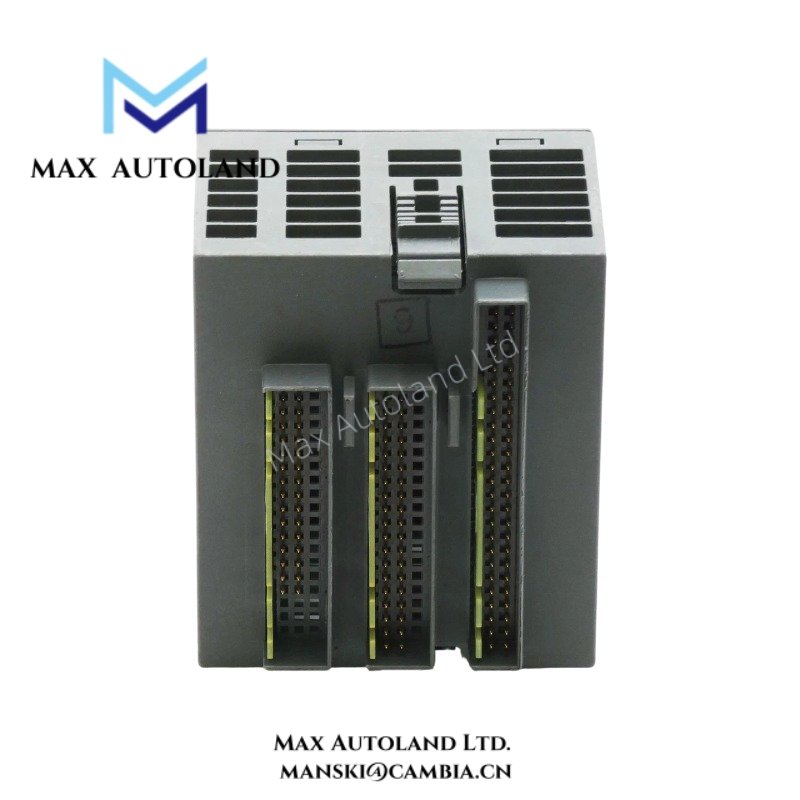

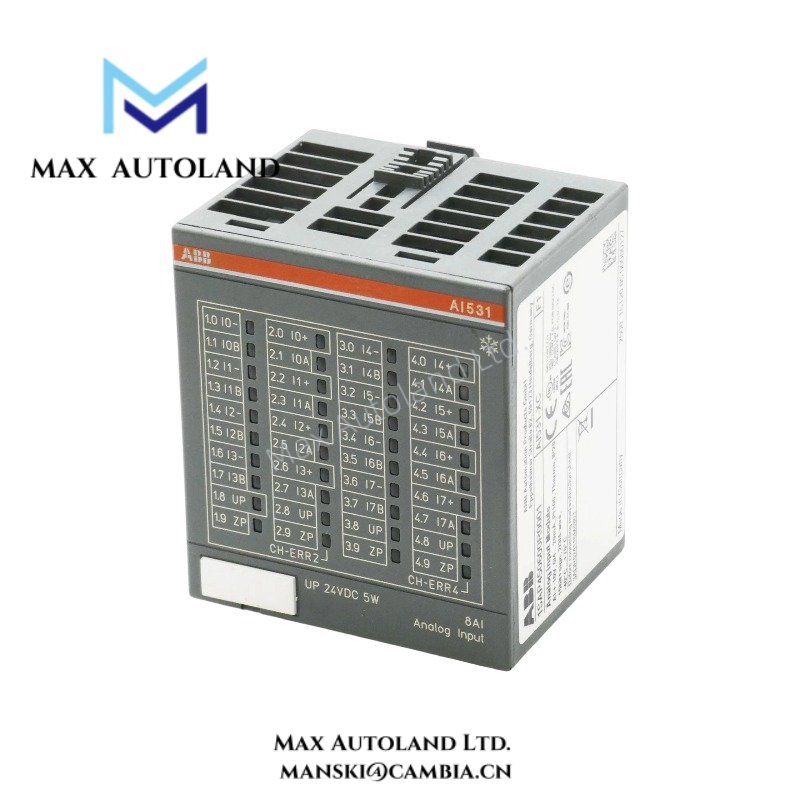

The ABB AI531 1SAP250600R0001, also cataloged as the AI531 Analog Input Module, operates as a dedicated hardware component for analog signal acquisition within ABB Advant OCS and 800xA control systems. The module receives field-level process signals, converts them into controller-readable data, and transfers measurement values through the ABB distributed I/O architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AI531 1SAP250600R0001 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Analog Input Module |
| Input Channels | 8 |
| Input Signal Type | Current Inputs |
| Input Range | 0-20 mA, 4-20 mA |
| Resolution | 12-bit |
| Galvanic Isolation | Channel group isolation |
| System Compatibility | ABB Advant OCS, ABB 800xA, AC500 |
| Communication | Backplane I/O Communication |
| Mounting | DIN Rail |
| Dimensions | Not specified |
| Weight | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
Backplane Bus Communication Architecture
The AI531 exchanges process values with the host controller through the ABB backplane communication structure. Input conversion and channel status information are transferred to the CPU as part of the cyclic I/O update process. Expansion of analog input capacity is achieved by adding compatible I/O modules while maintaining consistent communication methods and engineering configuration procedures within the control platform.
Frequently Asked Questions
Q: Which signal types are supported by the AI531?
A: The module is designed for industrial current input measurements, including 0-20 mA and 4-20 mA signal ranges.
Q: Does the AI531 require configuration after installation?
A: Yes. Input scaling, channel assignment, and signal type parameters must be configured within the controller engineering environment before operation.
Q: What should be verified after replacing an AI531 module?
A: Verify terminal wiring, channel configuration, signal scaling parameters, and controller diagnostic status before placing the associated measurement loops into service.
Field Installation Guidelines
- Install the module on the designated DIN rail according to ABB installation instructions.
- Route analog signal cables separately from power distribution, motor feeders, and switching device wiring.
- Use shielded instrumentation cable where required by plant electrical standards.
- Terminate cable shields according to the site’s grounding philosophy.
- Verify loop polarity before energizing connected field circuits.
- Avoid parallel routing with high-frequency or high-current conductors to reduce electromagnetic interference.
- Perform input validation using calibrated current sources and controller diagnostics during commissioning.
