Overview

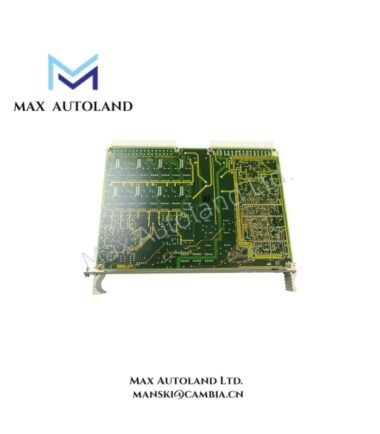

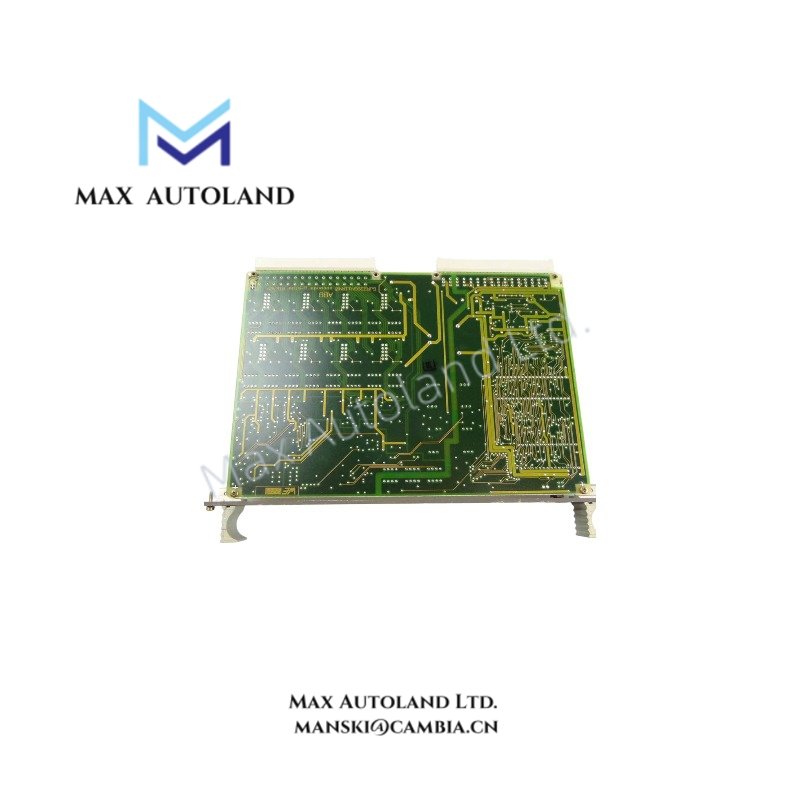

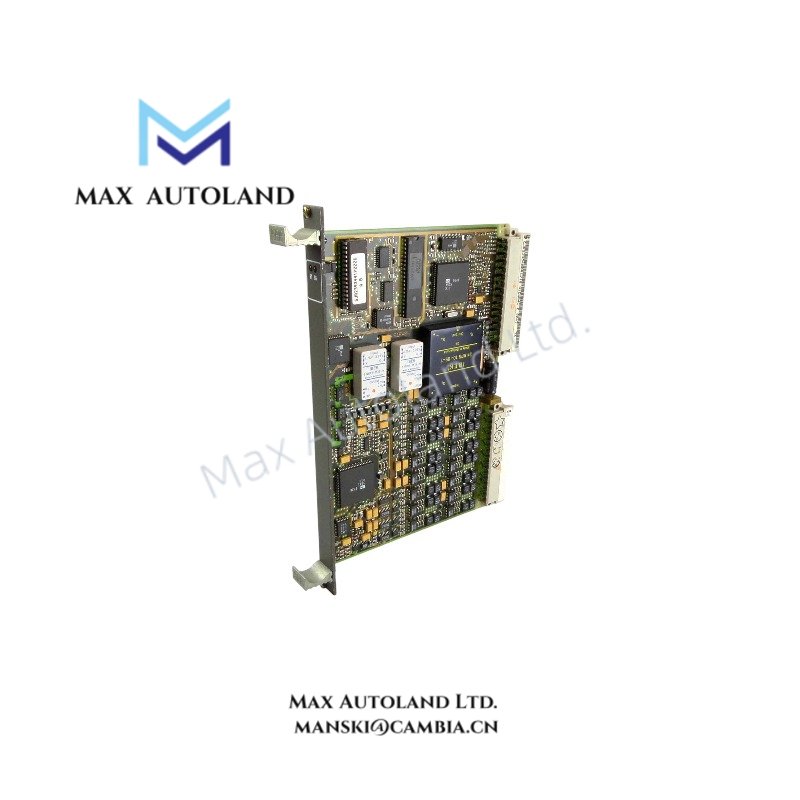

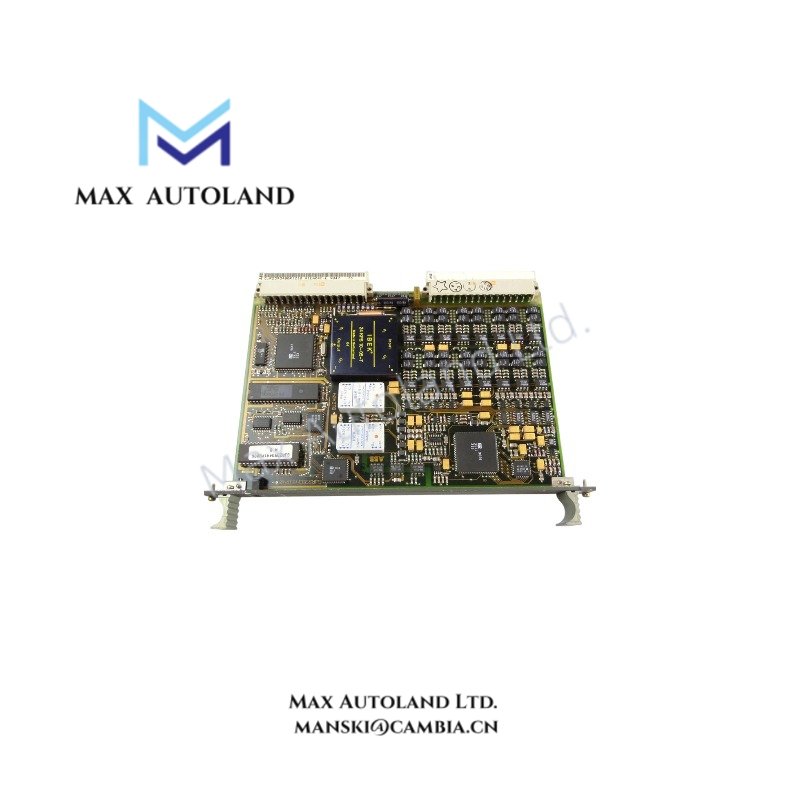

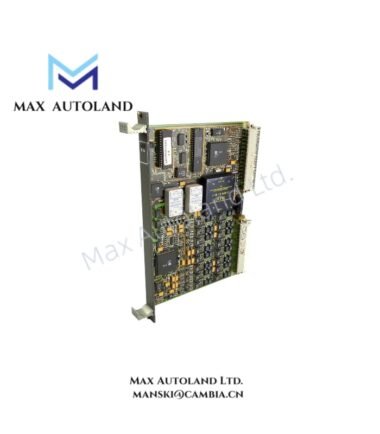

Configured for analog signal acquisition in ABB Procontic and Advant control platforms, the ABB 81EA04 (also cataloged as the GJR2393400R1210 Analog Input Module) provides direct physical conversion of continuous field measurements into digital process data for CPU execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Brand / Manufacturer | ABB |
| Origin | Germany |
| Weight | 0.75 lb (0.3 kg) |
| Dimensions | 10.0 in x 0.5 in x 8.0 in (25.4 cm x 1.3 cm x 20.3 cm) |
| Operating Temp | 0 degC to 60 degC (typical industrial cabinet range) |
| Power Consumption | 5 W typical backplane draw |
| Module Type | Analog Input Module |
| Tariff Code | 8517620050 |
Backplane Bus Communication Velocity Licensing
The 81EA04 utilizes licensed firmware profiles tied to specific Advant controller backplane bus clock rates. Data exchange cycles are governed by deterministic scan scheduling, requiring firmware flash compatibility validation prior to replacement. Unauthorized firmware versions may cause cyclic redundancy check faults during module initialization.
Frequently Asked Questions
Q: Does the 81EA04 support hot-swap installation?
A: No. Power must be removed from the rack before insertion or removal to prevent backplane bus contention and possible I/O fault escalation.
Q: What is the typical backplane current load of this module?
A: The module draws approximately 0.5 A at 5 VDC from the backplane supply under full input loading conditions.
Q: Are DIP switch settings required after replacement?
A: Yes. DIP configurations must match the original module’s addressing and input type selection to ensure correct signal mapping.
Field Installation Guidelines
Mount the module into the designated rack slot, ensuring full engagement of the backplane connector before securing the front locking lever. Use shielded twisted-pair cabling for all analog inputs, terminating shield drains to chassis ground at the rack end only. Maintain minimum 20 mm separation between analog input wiring and high-voltage AC conductors to minimize inductive coupling. Verify torque specification on terminal screws per ABB mechanical installation guidelines.
