Overview

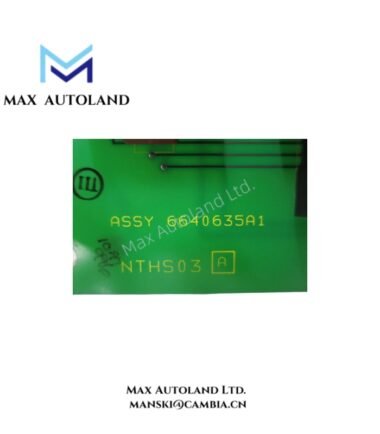

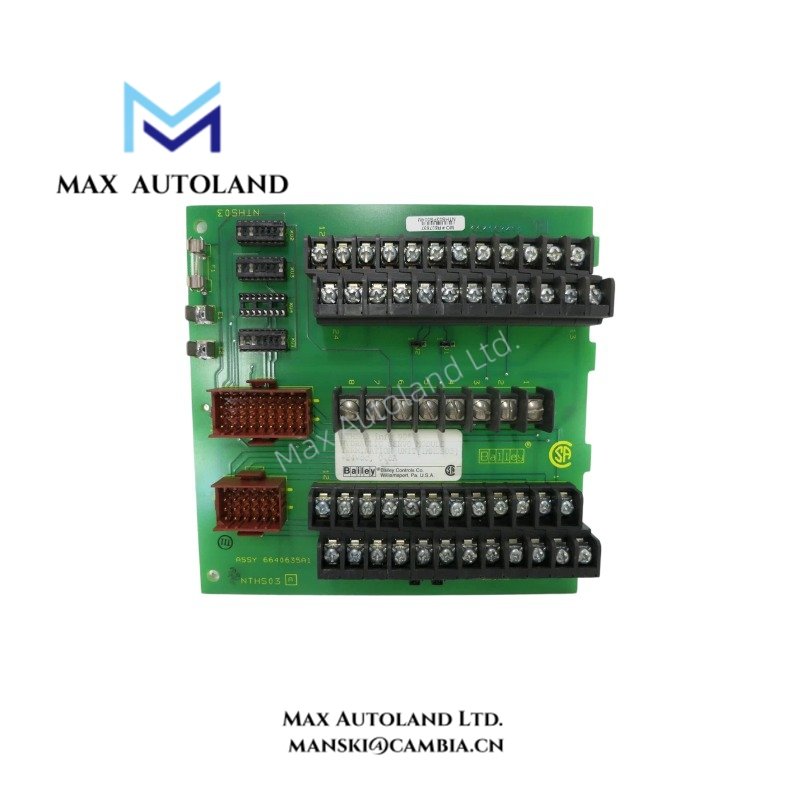

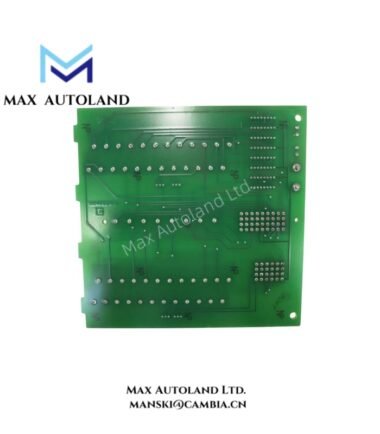

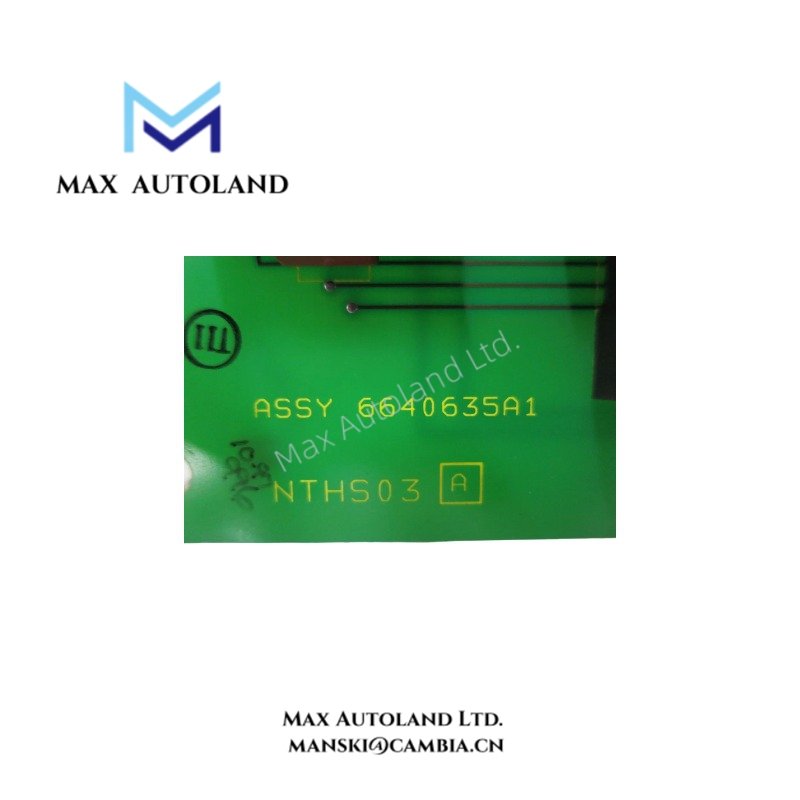

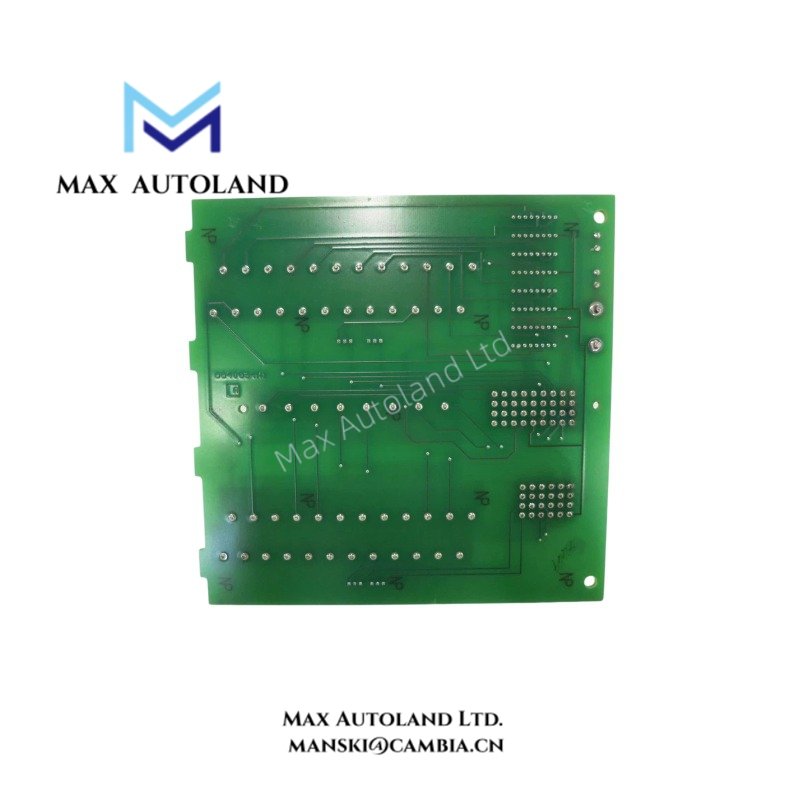

The ABB 6640635A1 is identified as a termination unit for an ABB Symphony hydraulic servo module. It provides a connection point between the servo module and external wiring, supporting cable termination and disconnection during maintenance or module replacement. The supplied specifications list 8 channels and 24 VDC input and output voltages. The exact compatible servo module should be verified before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6640635A1 |
| Brand | ABB |
| Product Type | Hydraulic Servo Termination Unit |
| Associated System | ABB Symphony |
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| Number of Channels | 8 |
| Operating Temperature | -40 to 85 deg C |
| Storage Temperature | -40 to 85 deg C |
| Dimensions | 100 x 100 x 100 mm |
| Weight | 1.0 kg |
| Country of Origin | Sweden |
| Payment Terms | T/T |
Function and Maintenance
The termination unit provides an interface between the hydraulic servo module and field wiring. This arrangement allows the wiring connections to be managed at the termination point when the associated module requires inspection, troubleshooting or replacement.
Before replacing an installed unit, verify the terminal assignments, wiring configuration and compatibility with the specific servo module. The supplied information does not establish whether the unit supports hot swapping or whether disconnection can occur while the system remains energized.
Frequently Asked Questions
Q: What is the function of the ABB 6640635A1?
A: It serves as a termination unit for an ABB Symphony hydraulic servo module, providing a connection point for external wiring.
Q: What are the voltage and channel specifications?
A: The supplied data lists 24 VDC input, 24 VDC output and 8 channels. Confirm the electrical terminal assignments against the applicable documentation before connecting the unit.
Q: Which hydraulic servo modules are compatible with this termination unit?
A: The available description associates the 6640635A1 with an ABB Symphony hydraulic servo module but does not identify a specific compatible module model. Verify the exact pairing before ordering or replacing the unit.
