Overview

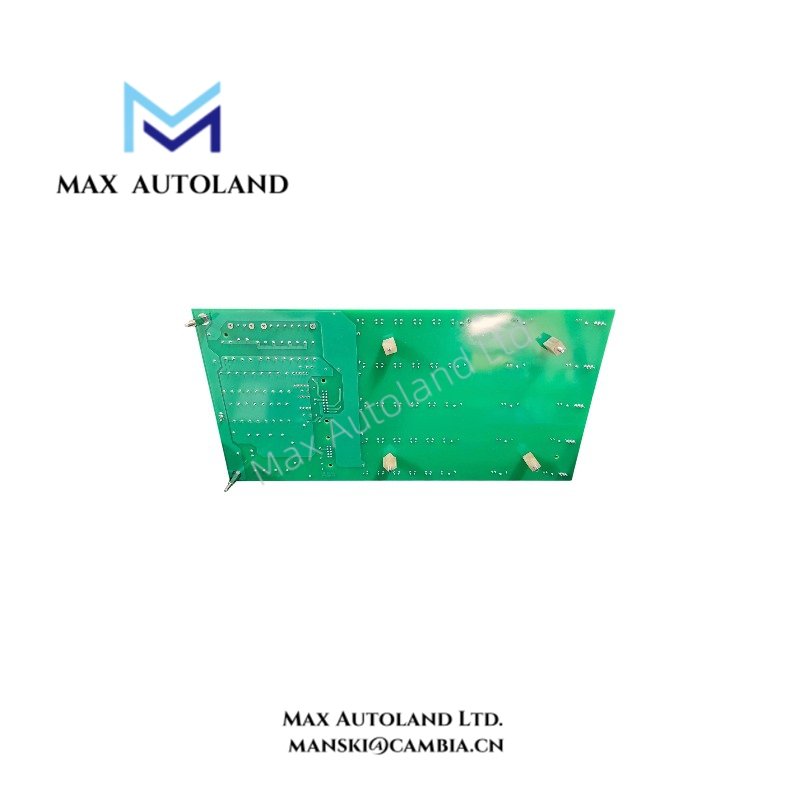

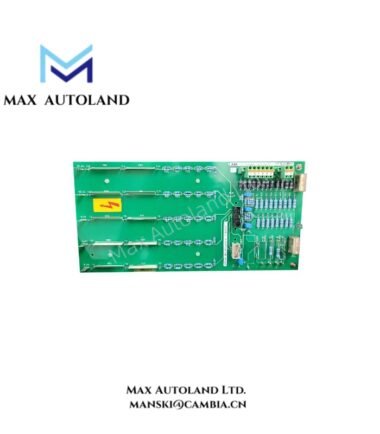

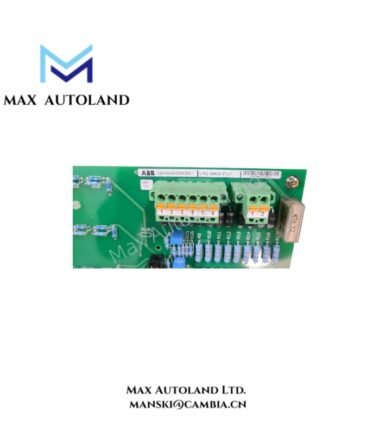

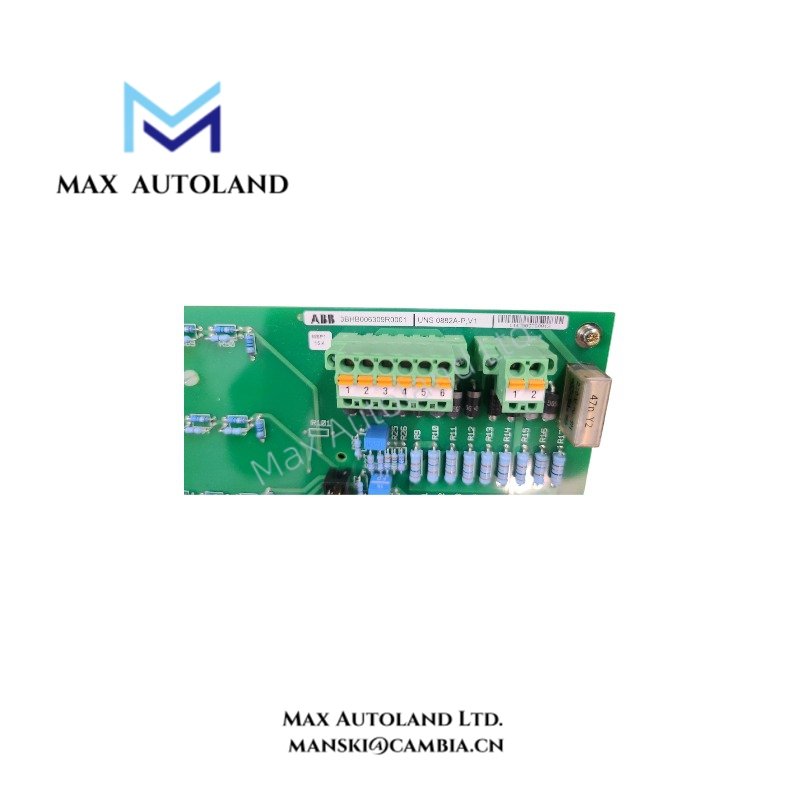

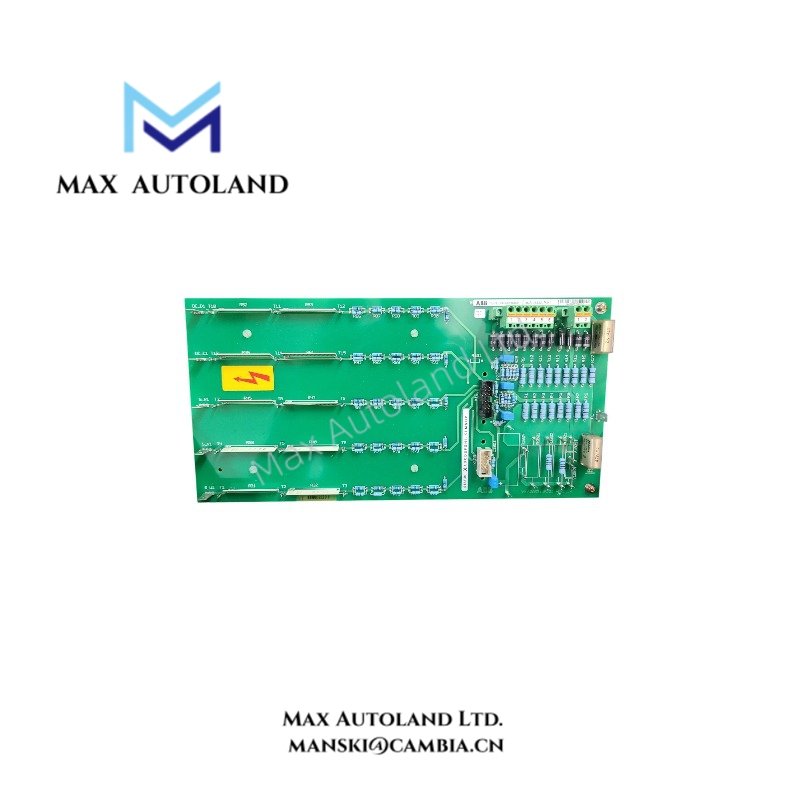

The ABB 3BHB006309R0001 is identified as a UNITROL power signal interface for ABB UNITROL excitation systems. This printed circuit board assembly supports the assigned signal interface function within its associated control configuration. The exact article code provides the primary reference for product identification, maintenance records, and replacement checks. The available information does not confirm specific electrical ratings, communication protocols, or compatible board revisions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3BHB006309R0001 |
| Brand | ABB |
| Product Type | UNITROL Power Signal Interface |
| Product Family | UNITROL Excitation Systems |
| Component Type | Power Signal Interface |
| Assembly Class | PCB assembly |
| System Interface | UNITROL excitation system control interface |
| Installation Format | Plug-in control board |
| Signal Domain | Control and diagnostic signals |
| Connector Interface | Keyed board connectors |
| Control Supply | Not specified in the available technical data |
| Service Position | Designated rack slot |
| Configuration Basis | Installed ABB hardware list |
| Replacement Basis | Exact article code and board revision |
| In Stock | 1 unit |
Interface Function and Configuration
The 3BHB006309R0001 provides a signal interface function within its associated UNITROL control assembly. Its role is to support the intended transfer or connection of control signals between compatible components. The exact signal assignments, electrical characteristics, and communication interfaces require confirmation from the applicable hardware documentation.
The supplied information identifies the assembly as a plug-in control board with keyed connectors. However, it does not establish a specific rack position, connector pinout, or hot-swap capability. Maintenance personnel should verify these details against the installed hardware configuration before removing or installing the board.
Replacement and Maintenance Checks
Use the complete article code 3BHB006309R0001 as the primary identification reference when sourcing a replacement. Also, compare the board revision and installed hardware list to confirm that the replacement matches the required configuration.
Before commissioning, check the board’s physical condition, connector alignment, and electrostatic discharge (ESD) precautions. After installation, perform the applicable power-up diagnostics and functional checks in accordance with the system’s approved maintenance procedures.
Frequently Asked Questions
Q: What is the function of ABB 3BHB006309R0001?
A: It is identified as a UNITROL power signal interface board assembly. Its specific signal-processing and interface duties depend on the associated control configuration.
Q: Can 3BHB006309R0001 replace another UNITROL board?
A: Do not assume direct interchangeability based on the UNITROL family alone. Confirm the complete article code, board revision, and hardware configuration before selecting a replacement.
Q: What electrical specifications should be checked before installation?
A: Verify the required supply conditions, connector pin assignments, signal characteristics, and communication interfaces using documentation applicable to this exact board. The supplied information does not establish numerical electrical ratings or protocol details.
