Overview

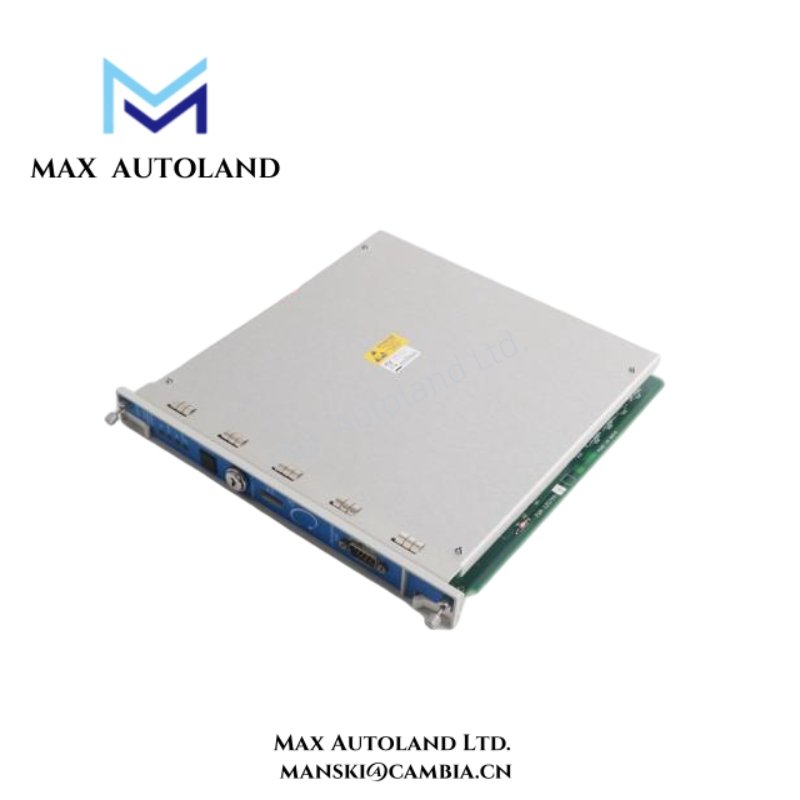

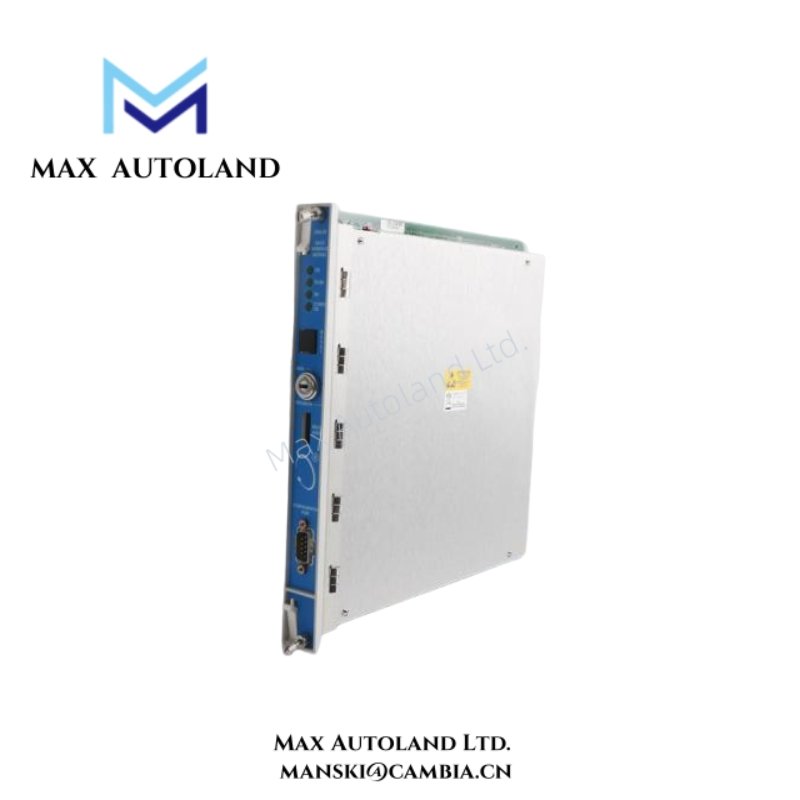

The Bently Nevada 3500/20 125744-02 Rack Interface Module provides a reliable interface for 3500 Series machinery protection systems. It connects monitoring modules to the rack backplane, ensuring precise data transmission and consistent power distribution. Moreover, its robust construction allows installation in industrial environments with temperature and vibration variations. Therefore, engineers can maintain accurate monitoring of critical rotating equipment while minimizing system downtime. In addition, the module’s design supports straightforward maintenance and integration with existing 3500 Series racks.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 3500/20 125744-02 |
| Product Type | Rack Interface Module for 3500 Machinery Protection |
| Function | Interfaces modules to rack backplane, power, and data |
| Compatible Racks | 3500 Series System Racks |
| Communication | High-speed module-to-backplane communication |
| Power Distribution | Uniform across connected modules |
| Operating Voltage | 24 VDC typical |
| Operating Temperature | -40°C to +70°C |
| Environmental Conditions | Industrial temperature and vibration tolerant |
| Weight | ~1.5 kg |
| Mounting Options | Rack-mounted within 3500 Series chassis |
| Description | 125744-02 Standard Rack Interface Module |
FAQ
A1: It connects 3500 Series monitoring modules to the rack backplane while managing power and data flow.
Q2: Which racks are compatible with this module?
A2: It fits all standard 3500 Series system racks.
Q3: Does this module support high-speed communication?
A3: Yes. It enables real-time data exchange between modules and control systems.
Q4: What environmental conditions can it tolerate?
A4: It operates reliably under industrial temperatures from -40°C to +70°C and moderate vibration.
Q5: Can it be replaced or upgraded easily?
A5: Yes. Its modular design allows easy replacement or integration without system downtime.
