Overview

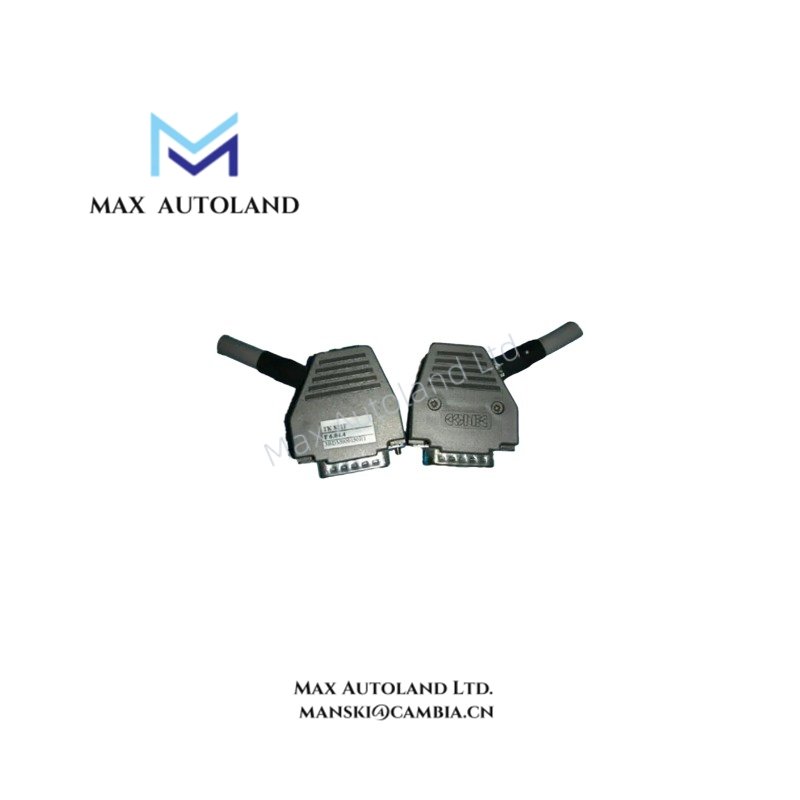

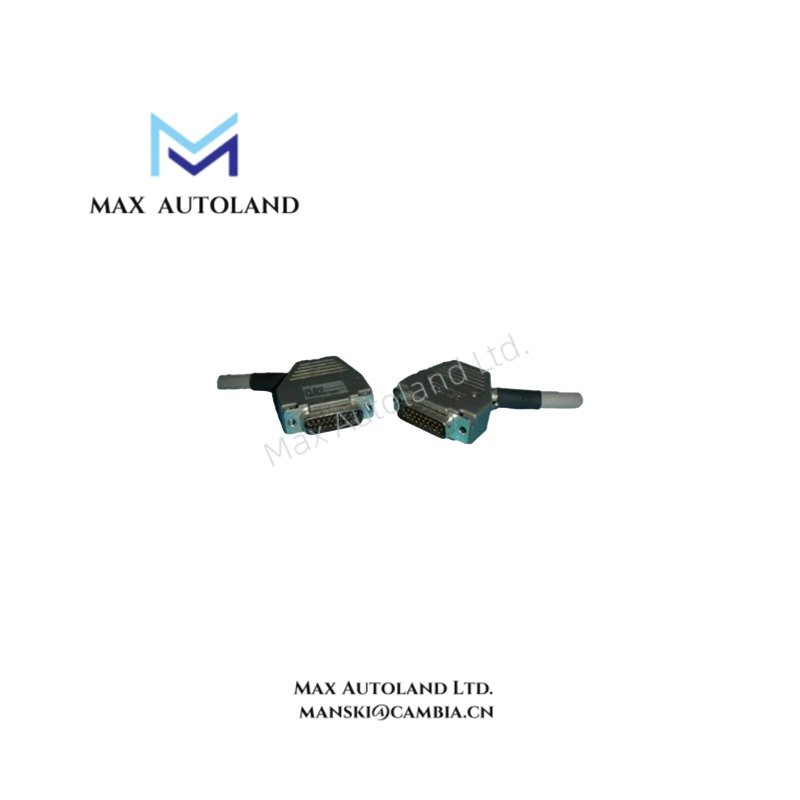

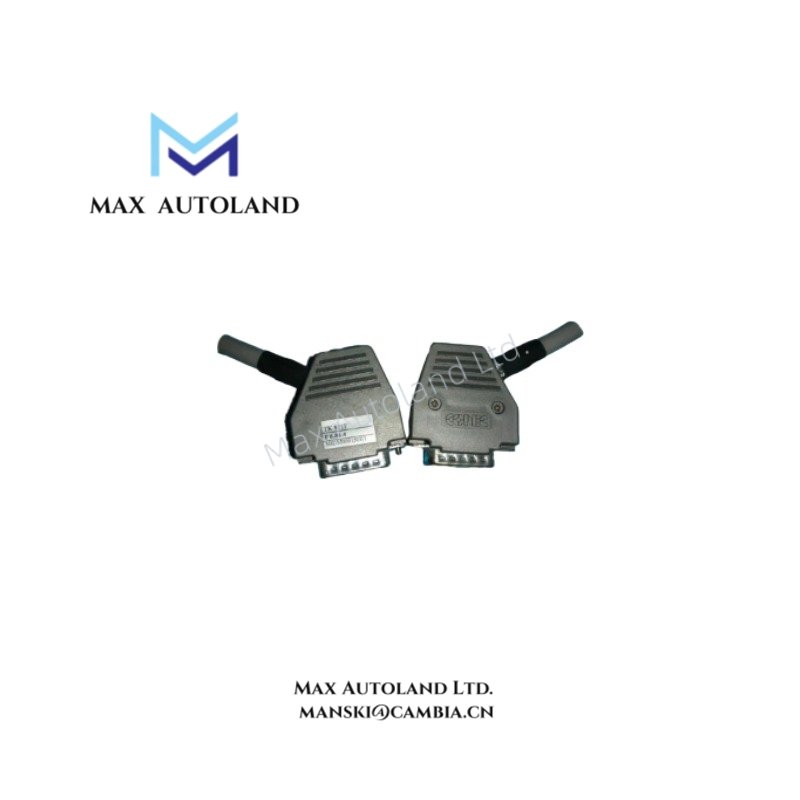

The ABB TK821F, also cataloged as the 3BDM000150R1 Prefabricated Cable, operates as a dedicated hardware component for dual-channel interface connections within ABB Freelance distributed control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TK821F |
| Brand | ABB |
| Part Number | 3BDM000150R1 |
| Product Type | Prefabricated Cable |
| Cable Length | 0.5 m |
| Channels | 2 channels |
| Source Connection | FI 820F |
| Destination Connection | Terminal Block TB 870F |
| Cross-Reference | Identical with DFA 021 |
| HS Code | 854442 |
| Voltage Rating | Not exceeding 1000 V |
| Connectors | Integral connectors fitted |
| Operating Temp | Standard industrial rating (refer to system manual) |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The assembly is engineered to maintain structural and signal integrity within high-density I/O configurations. To prevent signal attenuation and transmission delays across deterministic industrial networks, the physical geometry and shielding layout match the impedance requirements of the communication interface. The integration between the FI 820F module and the TB 870F terminal block ensures that the firmware flash compatibility and I/O density scaling of the host system remain uncompromised by inductive or capacitive variances.
Frequently Asked Questions
Q: Can this cable be extended beyond its standard 0.5 m length using third-party couplers?
A: No. Extending pre-assembled serial cables via inline couplers modifies loop impedance and propagation delay, which can lead to data packet drops or communication timing faults between the FI 820F and TB 870F.
Q: What is the mechanical life expectancy of the integral connectors under high-vibration conditions?
A: The integral connectors are specified for static industrial environments. In high-vibration scenarios, proper strain relief must be anchored within 10 cm of the termination point to prevent pin-to-socket fretting and intermittent contact.
Field Installation Guidelines
- Bend Radius Limits: Maintain a minimum dynamic bend radius of 10 times the outer cable diameter during installation to prevent internal conductor fatigue.
- Routing Isolation: Route the serial cable in dedicated low-voltage instrument trays. Maintain a minimum separation of 300 mm from high-power AC lines or variable frequency drive (VFD) output cabling to avoid electromagnetic interference.
- Connector Engagement: Ensure the integral locking screws on both the FI 820F side and the TB 870F side are fully engaged and torqued to specifications to guarantee continuous grounding continuity through the connector shells.
