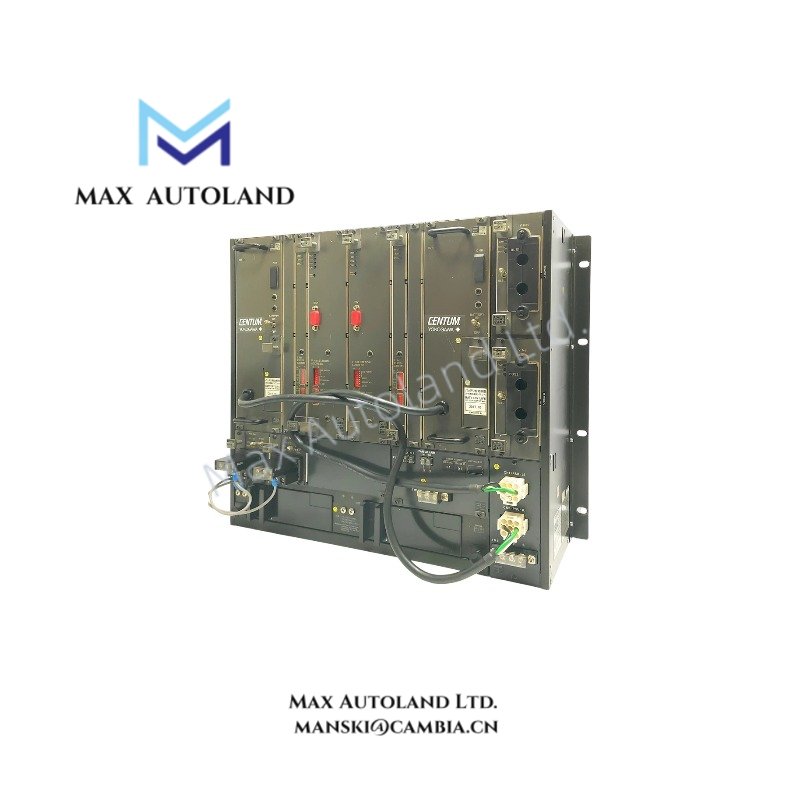

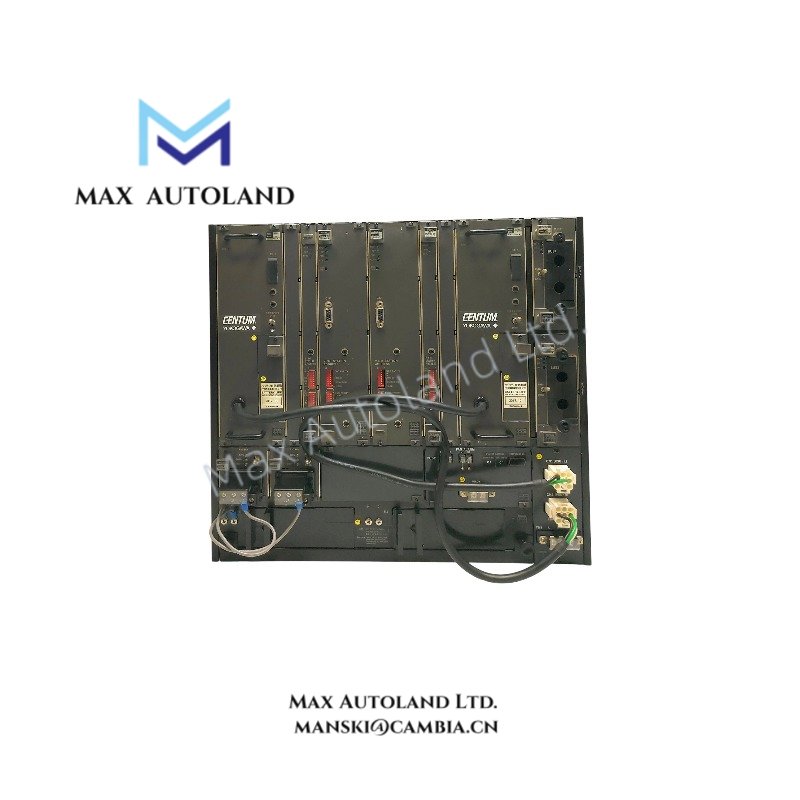

Yokogawa AFS10D Field Control Unit

Suffix Breakdown & Model Matrix

Single catalog model designation: AFS10D. No published suffix segmentation or functional option matrix is defined for this unit in the provided technical data.

HardwareSpecifications

Yokogawa Process Control Bus & Channel Isolation Characteristics

The Yokogawa AFS10D implements deterministic process data exchange through RIO bus communication topology integrated into CENTUM FCS environments. Field data acquisition and output execution are synchronized across redundant CPU domains, supporting stable loop execution for analog and discrete control paths. Internal channel separation logic supports isolation between processing domains and external I/O buses, minimizing cross-domain signal interaction during parallel execution states. Integration compatibility is aligned with 4-20 mA process loops and HART-capable field instrumentation layers, consistent with Yokogawa DCS signal architecture conventions.

FrequentlyAskedQuestions

Q: Does the AFS10D support hot-swap replacement during runtime operation?
A: The FCU supports redundant operation with standby synchronization. Module replacement conditions depend on system state and FCS configuration, requiring controlled transition into maintenance mode.

Q: How is CPU redundancy managed in this module?
A: Dual processors operate in parallel synchronization. A hardware arbitration mechanism monitors execution divergence and triggers automatic switchover to the standby processor upon fault detection.

Q: Is RIO communication isolated from internal processing buses?
A: Yes. The RIO interface is separated from core processing domains to prevent bus-level interference between field input/output routing and CPU execution paths.

FieldInstallationGuidelines

The unit shall be installed in a standard 19-inch industrial rack enclosure with verified grounding continuity to chassis earth. All RIO cabling must maintain controlled separation from high-voltage switching conductors to avoid induced noise coupling. Shield termination shall be referenced to a single-point ground at the cabinet level to maintain signal reference stability across analog field loops. Ensure backplane connectors are fully seated without mechanical stress on adjacent modules to prevent intermittent bus contact faults.
