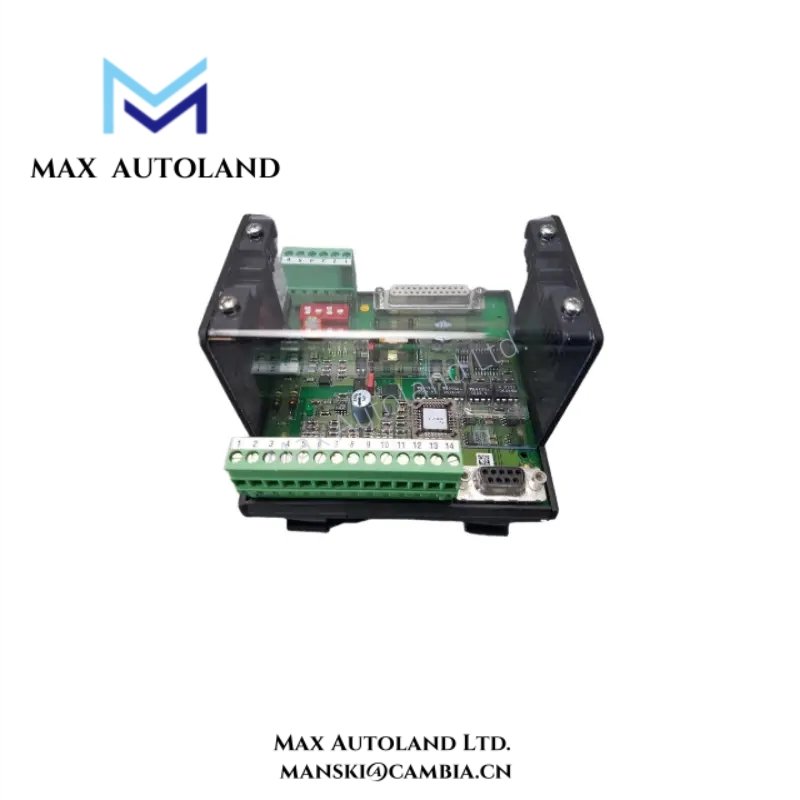

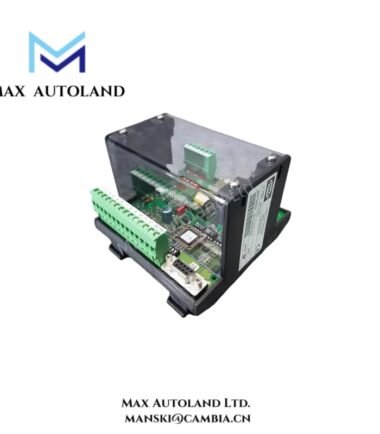

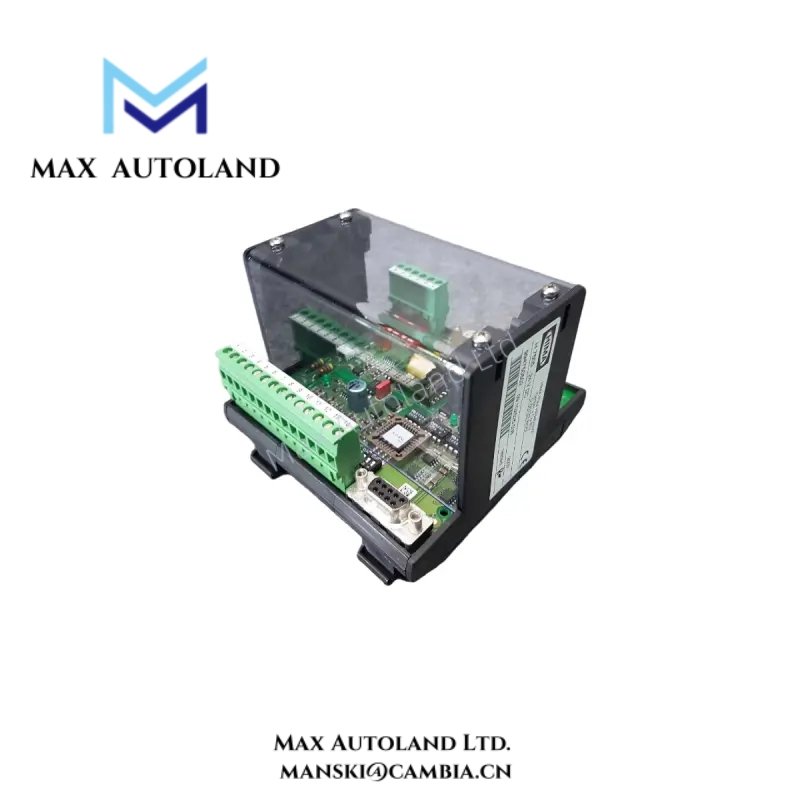

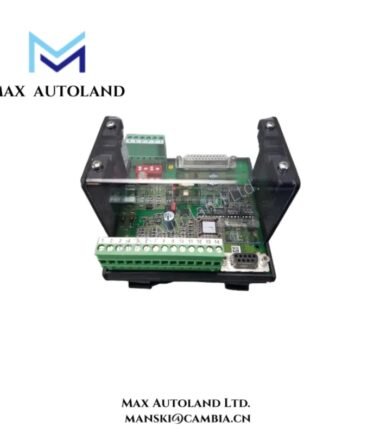

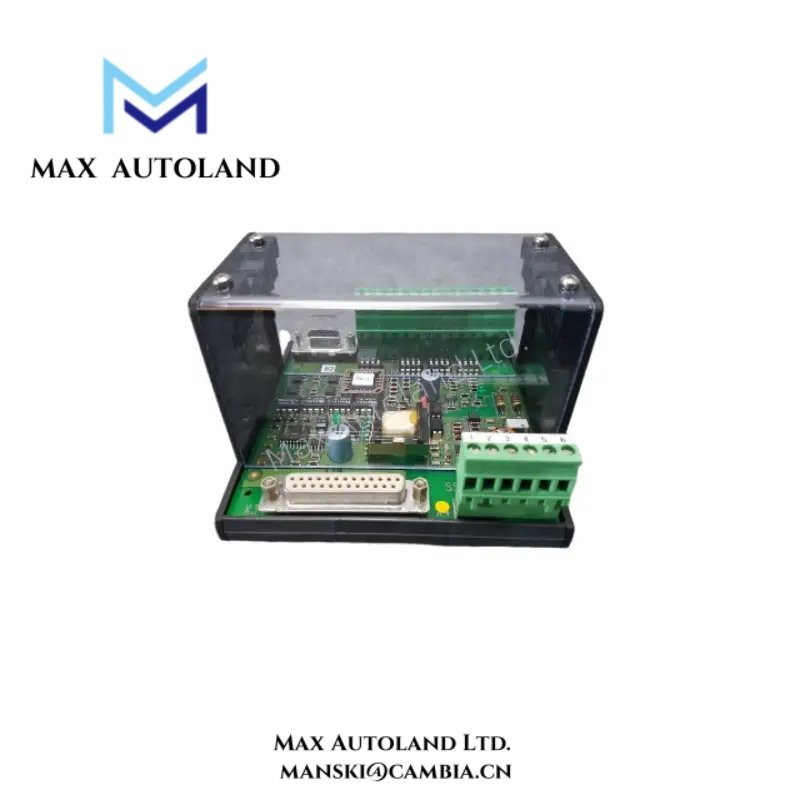

Overview
It provides stable electrical interfacing between power supplies and connected HIMA safety system components.
Moreover, the module supports consistent voltage delivery, helping maintain predictable behavior in safety-critical environments.
Engineers often select this module to improve power integrity across complex HIMA safety architectures.
Specification
| Parameter | Specification |
|---|---|
| Model | H7505 |
| Alternative Designation | H 7505 |
| Manufacturer | HIMA |
| Product Type | 24V DC Interface Module |
| Function | Power distribution and interfacing |
| Rated Supply Voltage | 24 V DC |
| Voltage Tolerance | 18–30 V DC |
| Mounting Location | Power cabinet |
| Connection Type | Screw terminals |
| Compatible Systems | HIMA safety systems |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | Up to 95%, non-condensing |
| Housing | Industrial-grade module enclosure |
| Compliance | HIMA safety and industrial standards |
FAQ
A1: It distributes and interfaces 24V DC power within HIMA safety system power cabinets.
Q2: Which systems commonly use the H7505 interface module?
A2: It integrates with HIMA safety systems used in process and safety-critical industrial environments.
Q3: Is the H7505 suitable for continuous operation?
A3: Yes, it is designed for continuous industrial use with stable voltage delivery.
Q4: Does the module simplify cabinet wiring?
A4: Yes, structured terminals help reduce wiring complexity and installation time.
