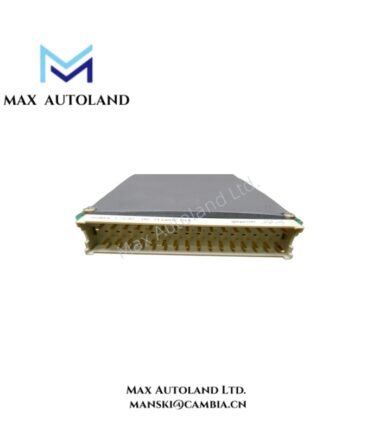

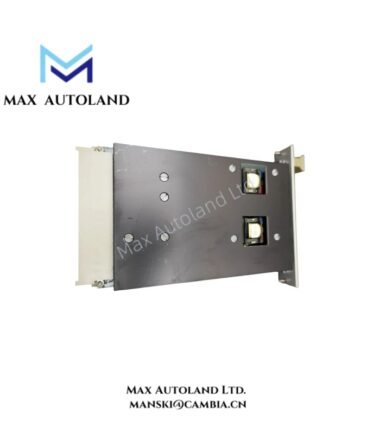

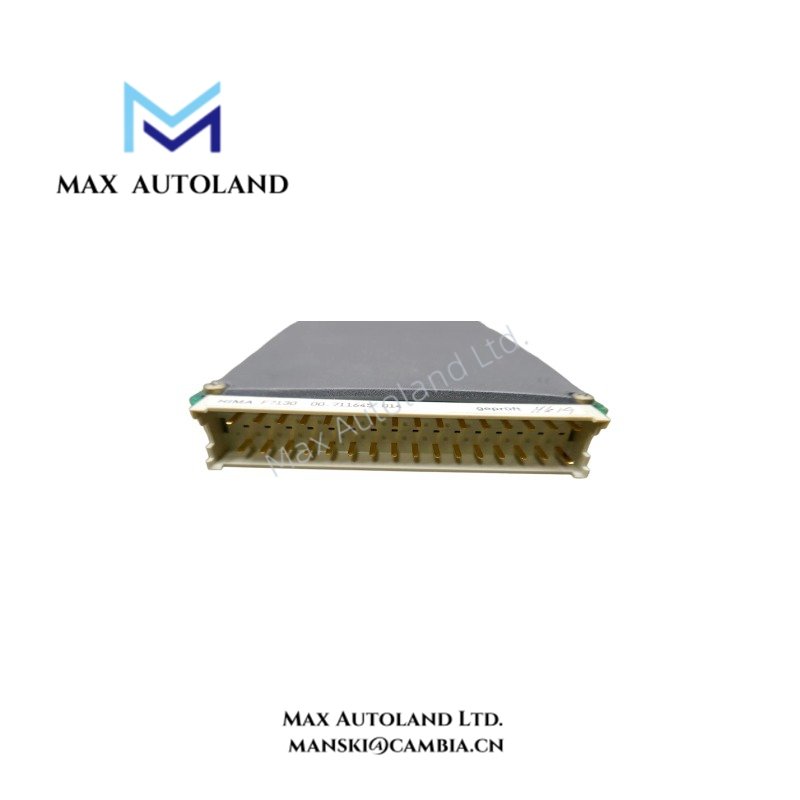

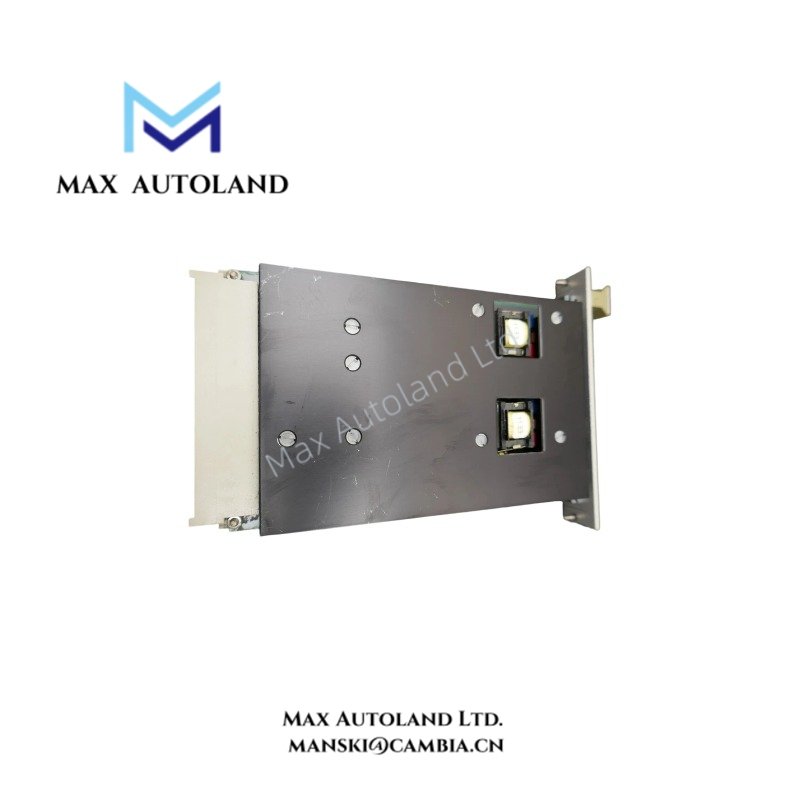

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F7130 |
| Brand | HIMA |
| Product Type | Power Distribution Module |
| Input Voltage | 24 VDC |
| Input Operating Range | 24 VDC, -15% to +20% |
| Input Ripple | Less than 15% |
| Primary Fuse | 5 A gL |
| Central Device / I/O Module Output | 5 VDC, +/- 0.25 V, 10 A |
| HIBUS Output | 5 VDC, +/- 0.25 V, 1 A |
| Efficiency | >= 70% |
| Status Indicator | LED |
| Space Requirement | 4 SU |
| Weight | 0.3 kg |
| Estimated Shipping Dimensions | 2 x 19.1 x 12.9 cm |
| Country of Origin | Germany |
| HS Code | 8537101190 |
Power Distribution and Output Configuration
The F7130 distributes 5 VDC power across two designated supply paths. The central device and I/O modules have a rated output capacity of 10 A, while the HIBUS supply is rated at 1 A. Both outputs have a stated voltage tolerance of +/- 0.25 V, which defines the permitted deviation from the nominal 5 VDC output.
The combined rated output capacities should not be confused with a single shared 11 A output. Each supply path serves its designated load, and the actual loading limits depend on the module’s specified electrical design.

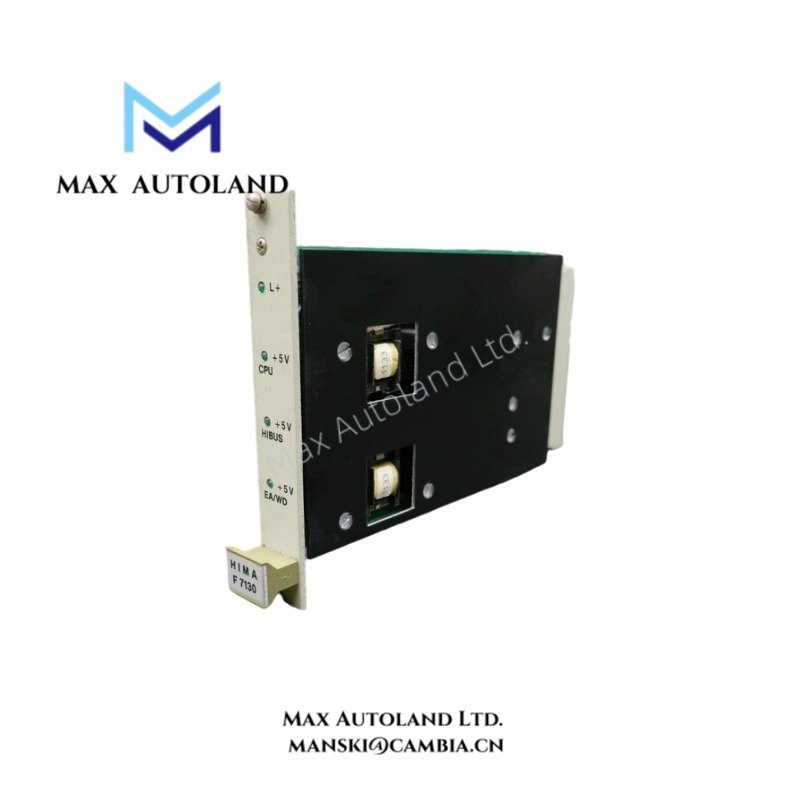

Input Protection and Status Indication
The module operates from a nominal 24 VDC input, with a stated operating range of -15% to +20%. The 5 A gL primary fuse provides input-side overcurrent protection. The integrated LED indicator allows personnel to check the module’s visual status during inspection; its exact indication states are not specified in the supplied data.
Frequently Asked Questions
Q: What are the rated outputs of the HIMA F7130?
A: The module provides 5 VDC at up to 10 A for the central device and I/O modules, plus a separate 5 VDC, 1 A output for the HIBUS. Both outputs have a specified voltage tolerance of +/- 0.25 V.
Q: What input conditions does the F7130 require?
A: The module uses a nominal 24 VDC input with an operating tolerance of -15% to +20%. The specified input ripple is less than 15%, and the primary fuse rating is 5 A gL.
Q: What does the LED indicator show?
A: The F7130 includes an LED indicator for visual status checking. The specific LED states and their meanings should be confirmed against the applicable technical documentation.
