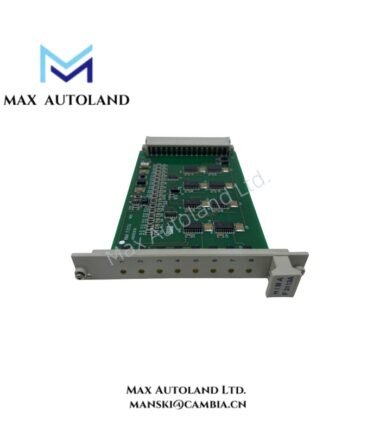

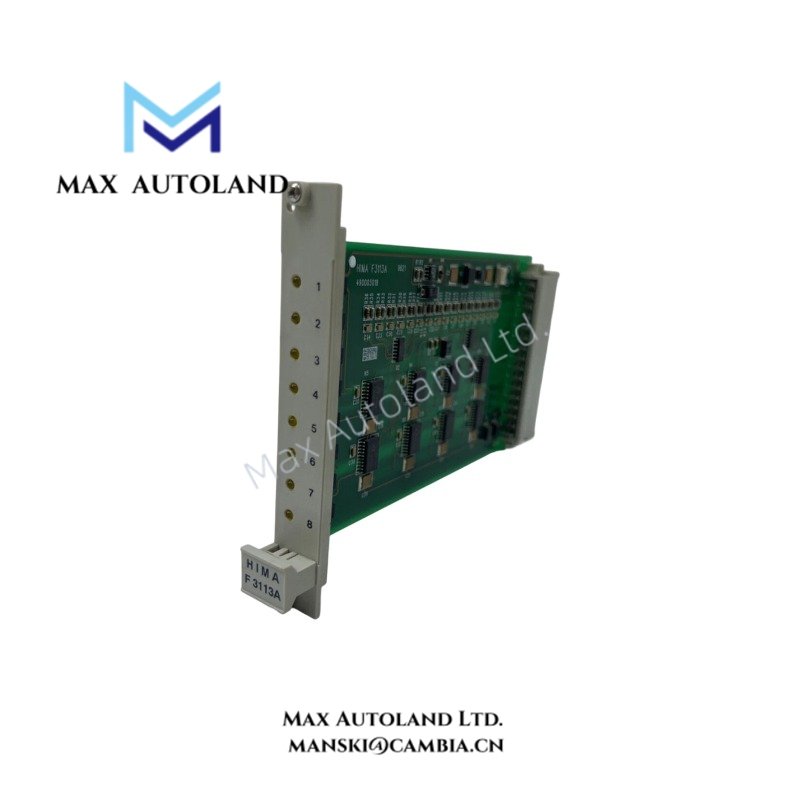

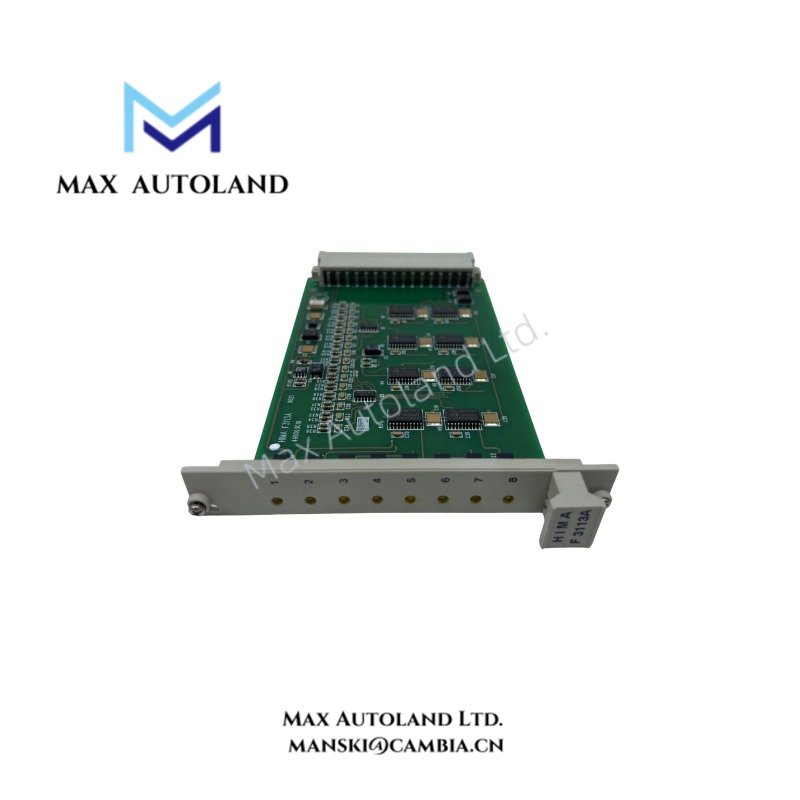

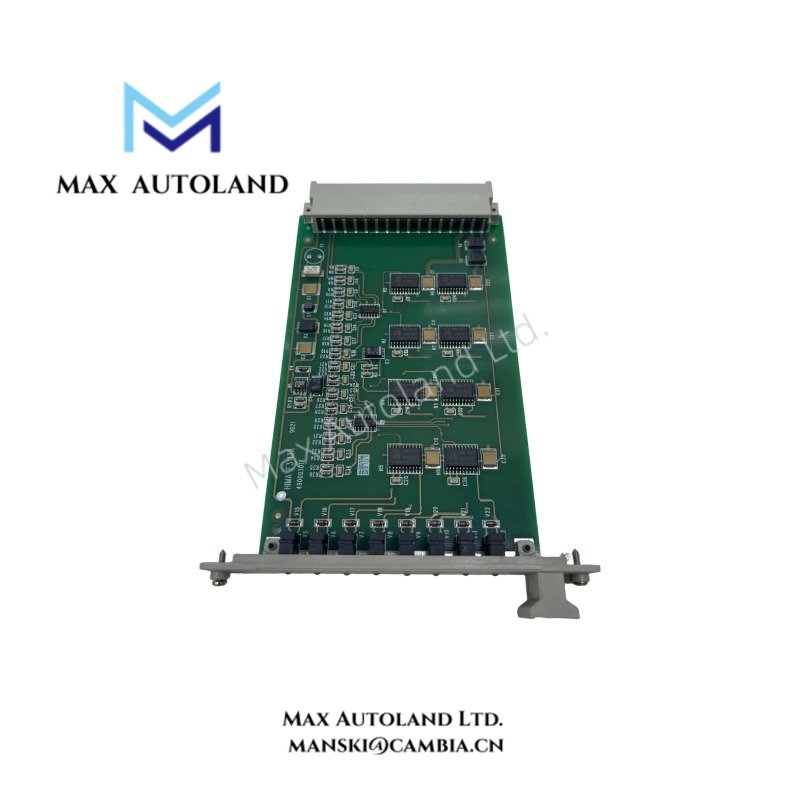

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F3113A |
| Brand | HIMA |
| Product Type | Output Amplifier Module |
| Power Supply | 24 VDC |
| Rated Power | 12 W |
| Configuration | 8-fold (as listed in source data) |
| Relay Outputs | 4 x SPDT |
| Contact Rating | 1 A at 250 VAC |
| Minimum Load | 10 mA |
| Isolation | 1500 VAC |
| Operating Temperature | -20 to +60 deg C |
| Storage Temperature | -40 to +85 deg C |
| Humidity | 5-95% RH, non-condensing |
| Weight | 0.16 kg |
| Estimated Shipping Size | 19.8 x 14.2 x 2.5 cm |
| Country of Origin | Germany |
| HS Code | 8537101190 |
Output Configuration and Electrical Characteristics
The four SPDT relay outputs provide single-pole, double-throw contact arrangements. Each output can switch between its common terminal and the normally open or normally closed contact, subject to the actual relay configuration. The specified contact rating defines the stated switching limit; the connected load must also meet the applicable electrical and load-type requirements.
The listed 10 mA minimum load and 1500 VAC isolation rating are additional selection parameters. Confirm the required load conditions and the applicable isolation specifications before connecting the module to field equipment.
Environmental Conditions
The F3113A has a specified operating temperature range of -20 to +60 deg C and a storage range of -40 to +85 deg C. The permitted relative humidity is 5-95% RH without condensation. Installation and storage conditions should remain within these limits.
Frequently Asked Questions
Q: What power supply does the HIMA F3113A require?
A: The listed power supply is 24 VDC. Verify the supply requirements and connection details against the documentation for the exact module before energizing it.
Q: How many relay outputs does the F3113A have?
A: The supplied specifications list four SPDT relay outputs, each rated at 1 A / 250 VAC. The separate description states “8 FOLD”; this configuration detail requires confirmation before using it to determine the number of available outputs.
Q: What environmental conditions does the F3113A support?
A: The specified operating range is -20 to +60 deg C, with storage from -40 to +85 deg C. Relative humidity must remain between 5% and 95% without condensation.
