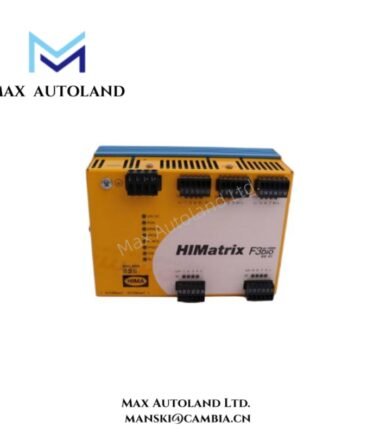

Overview
It integrates eight digital inputs and eight digital outputs within a compact, industrial-grade module design. Moreover, the controller supports deterministic signal processing for safety-critical automation environments.
Engineers rely on this module to maintain stable digital signal exchange between field devices and safety logic solvers.
Specification
| Parameter | Specification |
|---|---|
| Model | F3DIO8/801 |
| Alternative Name | F3 DIO 8/8 01 |
| Manufacturer | HIMA |
| Product Type | Safety-Related Digital I/O Controller |
| Digital Input Channels | 8 |
| Digital Output Channels | 8 |
| Signal Type | 24 V DC |
| Output Switching Type | Safety-related digital switching |
| Communication Interface | Safeethernet via HIMatrix system |
| Supply Voltage | 24 V DC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Housing | Industrial metal enclosure |
| Protection Class | IP20 |
| Functional Safety Level | SIL 3 (IEC 61508 / IEC 61511) |
| Mounting Method | DIN rail or control cabinet |
| Diagnostic Functions | Line monitoring, short-circuit detection |
| Relative Humidity | 5–95%, non-condensing |
FAQ
A1: It provides eight digital input channels and eight digital output channels for safety-related applications.Q2: Is the F3DIO8/801 compatible with HIMatrix safety systems?
A2: Yes, it integrates directly with HIMatrix safety CPUs using safeethernet communication.
Q3: Can this module be used in SIL-rated safety loops?
A3: Yes, it supports SIL 3 applications according to international functional safety standards.
Q4: What are typical use cases for this controller?
A4: Typical uses include emergency shutdown systems, safety interlocks, and digital actuator control.
