Overview

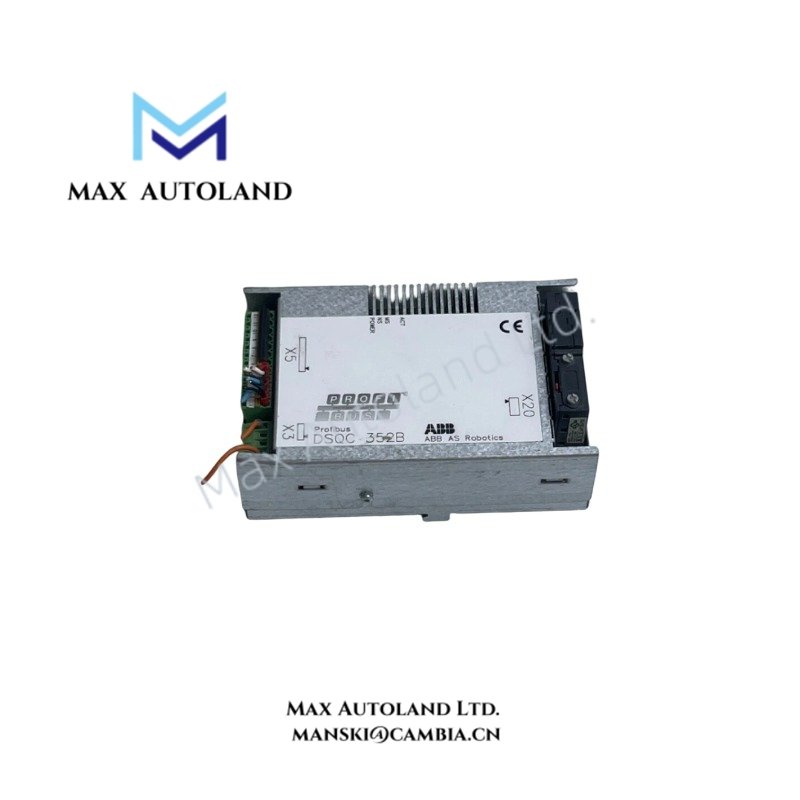

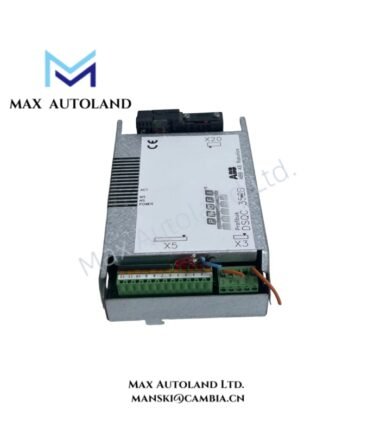

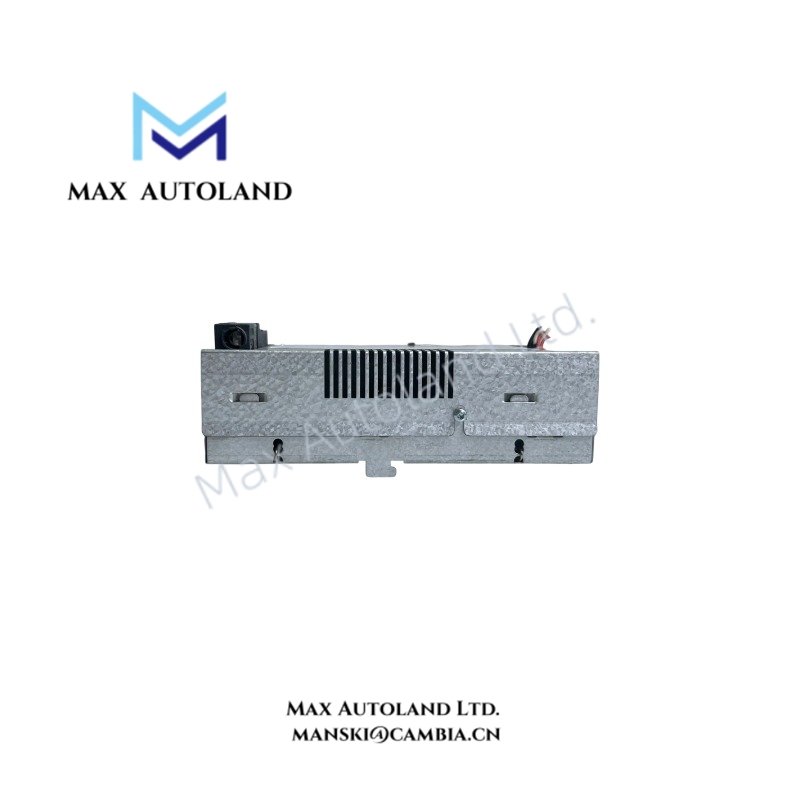

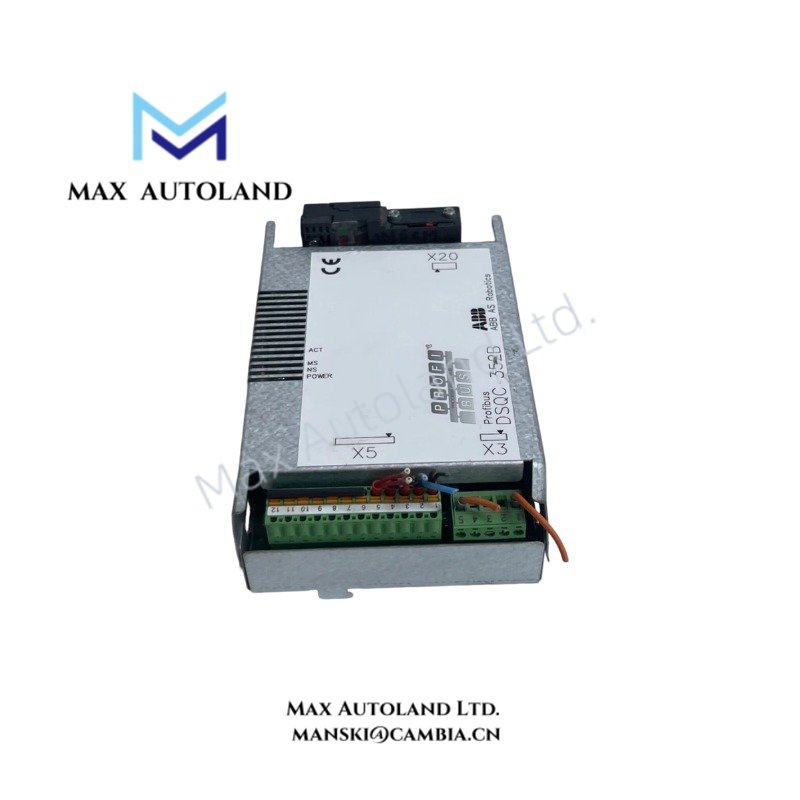

Configured for Profibus DP communication in ABB S4C and S4C+ robot controller systems, the ABB DSQC352B (DSQC352B Profibus DP Fieldbus Adapter Module) provides direct physical and electrical execution for industrial network data exchange.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC352B / DSQC 352 |
| Brand | ABB |
| Origin | Sweden |
| Power Consumption | Backplane supplied; value not specified |
| Product Type | Profibus DP Fieldbus Adapter Module |
| Part Number | 3HNE00009-1 / 3HNE00009-1/07 |
| Communication Protocol | Profibus DP (Decentralized Periphery) |
| Network Interface | 9-pin D-sub (DB9) female connector |
| Transmission Rate | Up to 12 Mbps |
| Communication Mode | Profibus network node interface |
| Controller Compatibility | ABB S4, S4C, S4C+ robot controllers |
| Installation Method | Main computer rack / controller backplane mounting |
Industrial Control Network Interface Characteristics
The ABB DSQC352B operates as a Profibus DP communication interface within ABB robot controller architectures. It transfers command data, status information, and digital communication signals between the robot controller and external PLC or distributed I/O systems.
Furthermore, the module supports Profibus DP transmission rates up to 12 Mbps and uses a standard DB9 physical interface for fieldbus connection. The controller backplane provides internal communication and power distribution between the module and the robot control system.
For ABB industrial control platforms, the module supports backplane bus communication velocity requirements and firmware flash compatibility defined by the installed controller software environment. Configuration parameters must match the RobotWare version and Profibus network settings.
Frequently Asked Questions
Q: Does the ABB DSQC352B support direct connection to a PLC system?
A: Yes. The DSQC352B provides a Profibus DP interface that allows ABB robot controllers to exchange data with external PLC systems configured as Profibus network devices.
Q: What physical connector does the DSQC352B use for Profibus communication?
A: The module uses a standard 9-pin D-sub female connector for Profibus DP network wiring.
Q: Can the DSQC352B be installed outside the ABB controller rack?
A: No. The module is designed for installation inside the ABB robot controller main rack and communicates through the internal backplane interface.
Field Installation Guidelines
- Install the DSQC352B only in the designated ABB controller rack position according to the controller hardware configuration manual.
- Verify that the controller power supply is removed before inserting or removing the communication module.
- Connect the Profibus cable using a shielded industrial fieldbus cable with proper connector termination.
- Maintain cable separation between Profibus wiring and high-current motor or power cables to reduce electrical interference.
- Connect cable shields according to the ABB controller grounding requirements and site electrical standards.
- Confirm Profibus node address settings, baud rate configuration, and RobotWare communication parameters before system startup.
- Check module LED indicators after power-up to verify communication status and detect network faults.
