Overview

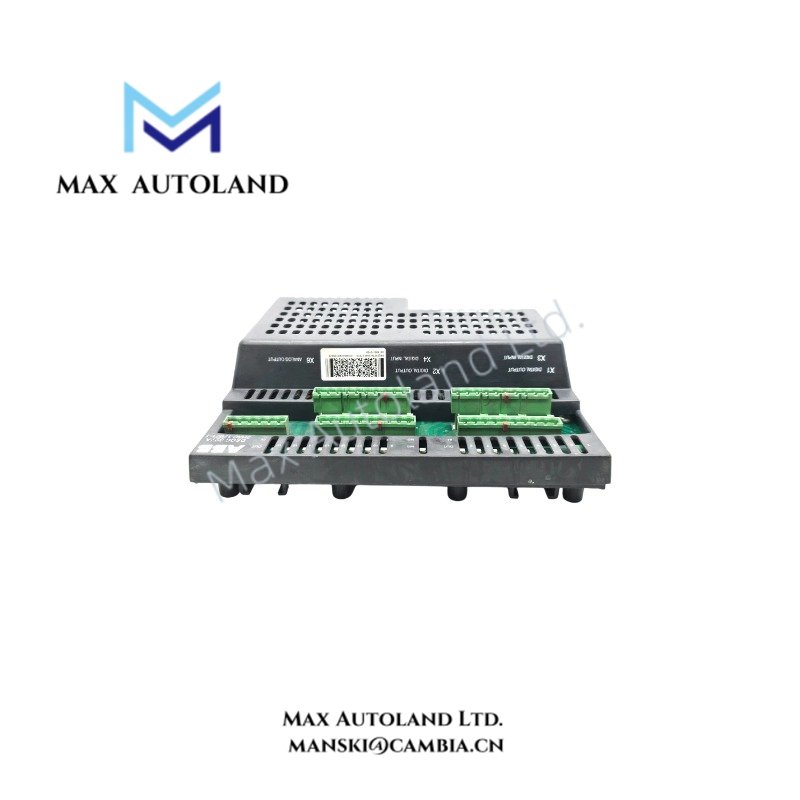

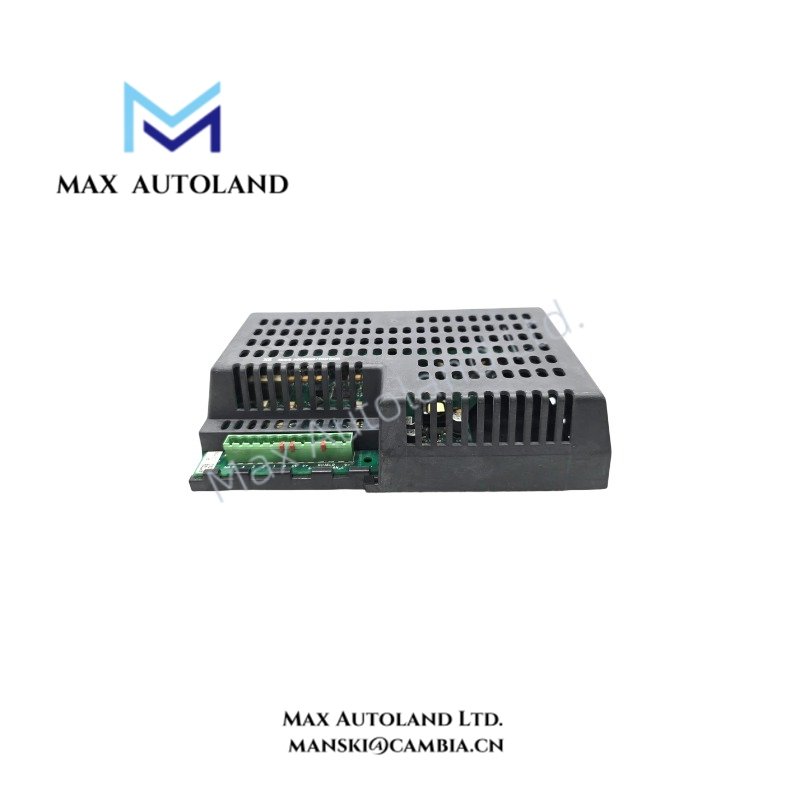

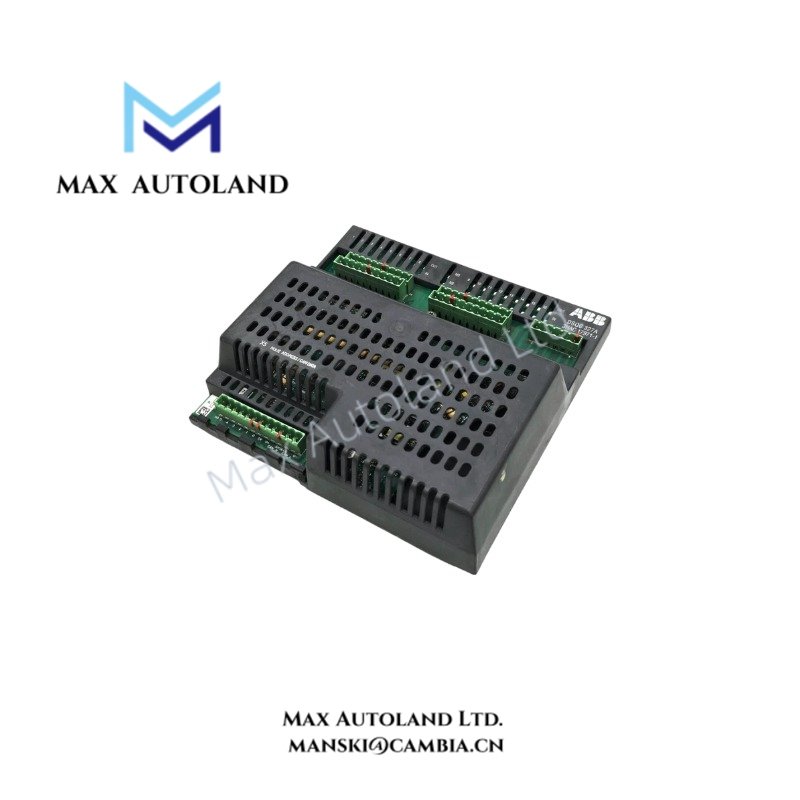

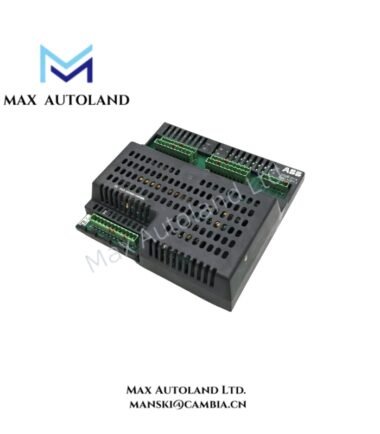

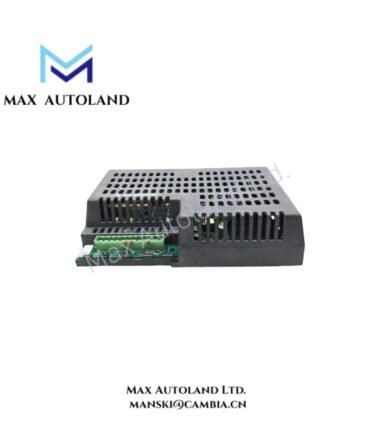

The ABB DSQC327 (3HAB7230-1) is a digital and analog combination I/O module designed to handle discrete and analog signal exchange within compatible ABB industrial robot control systems. The module is associated with 16 digital inputs, 16 digital outputs, 4 analog inputs, and 4 analog outputs. A separate reference, DSQC327A (3HAC17971-1), should be treated as a distinct variant until hardware interchangeability is confirmed. The supplied reference 3HAB2242-1 conflicts with the DSQC327 part number and requires verification before ordering or installation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC327 |
| Brand | ABB |
| Part Number | 3HAB7230-1 |
| Related Variant | DSQC327A, 3HAC17971-1 |
| Module Type | Digital and Analog Combination I/O Module |
| Compatible System | ABB robot controller; exact controller compatibility requires verification |
| Digital Inputs | 16 channels, as supplied |
| Digital Outputs | 16 channels, as supplied |
| Analog Inputs | 4 channels, as supplied |
| Analog Outputs | 4 channels, as supplied |
| Analog Output Range | 4-20 mA, as supplied |
| Analog Output Resolution | 12 bit, as supplied |
| Supply Voltage | 24 VDC, as supplied |
| Internal Supply Wiring | Pin 9: 0 V; Pin 10: +24 VDC, subject to connector documentation |
| Lifecycle Status | Legacy hardware; replacement compatibility requires confirmation |
Industrial I/O Signal Handling and Compatibility
The DSQC327 combines discrete signal handling with analog signal interfaces in a single module. Before connecting field devices, verify the terminal assignment, signal reference, and electrical characteristics against the applicable ABB hardware documentation.
- Digital signals: Confirm input voltage thresholds, output switching characteristics, and common-reference wiring before connecting external devices.
- Analog signals: Verify input signal types, output current range, channel configuration, and load requirements. The supplied 4-20 mA range and 12-bit resolution require confirmation against the correct hardware revision.
- Power supply: The supplied wiring information identifies pin 9 as 0 V and pin 10 as +24 VDC. Confirm connector orientation and pin numbering before applying power.
- Controller compatibility: Check the robot controller generation, interface hardware, and system configuration before replacing an existing board.
- Firmware compatibility: Confirm controller software and hardware revision requirements. Do not assume compatibility based solely on similar module designations.
Frequently Asked Questions (FAQ)
Q: Can the DSQC327 and DSQC327A be used interchangeably?
A: Interchangeability has not been established by the supplied information. Verify the complete part number, hardware revision, connector arrangement, and controller compatibility before substitution.
Q: What power supply does the DSQC327 require?
A: The supplied data specifies 24 VDC, with pin 9 connected to 0 V and pin 10 connected to +24 VDC. Confirm these assignments using the applicable ABB wiring documentation before energizing the module.
Q: Does the DSQC327 support 4-20 mA analog outputs?
A: The supplied data identifies 4-20 mA outputs with 12-bit resolution. Confirm the output configuration, electrical load limits, and channel specifications against the exact module documentation.
Field Installation Guidelines
- Verify identification: Check the module label and part number. Do not substitute DSQC327, DSQC327A, or 3HAB2242-1 without confirming the applicable hardware documentation.
- Isolate power: De-energize the controller and associated field circuits according to the equipment manufacturer’s procedures before removing or installing the board.
- Inspect connectors: Check connector condition, contact alignment, and mechanical seating before installation.
- Verify supply wiring: Confirm the 24 VDC supply polarity and connector pin numbering against the correct wiring diagram.
- Separate signal wiring: Route analog signal cables away from high-current and switching conductors where practicable. Apply shielding and grounding according to the controller and field-device documentation.
- Check channel configuration: Verify the signal type and terminal assignment for each connected input and output before commissioning.
- Perform functional tests: Check digital input transitions, digital output operation, and analog signal readings using approved test procedures before returning the system to service.
