Overview
Specification
| Feature | Specification |
|---|---|

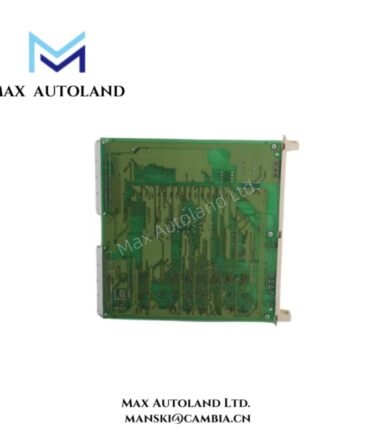

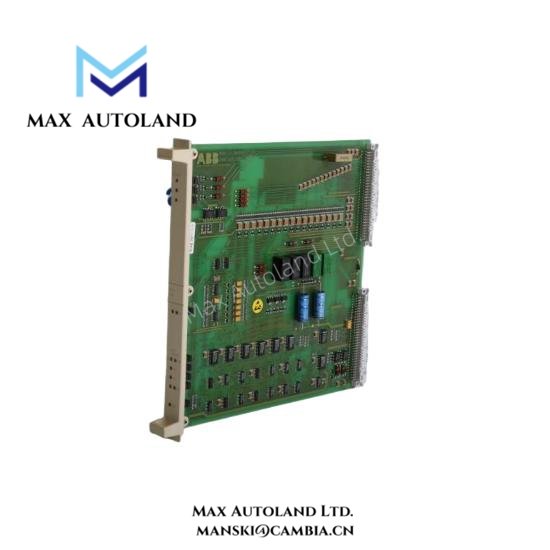

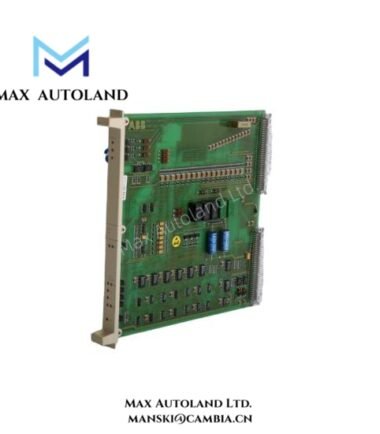

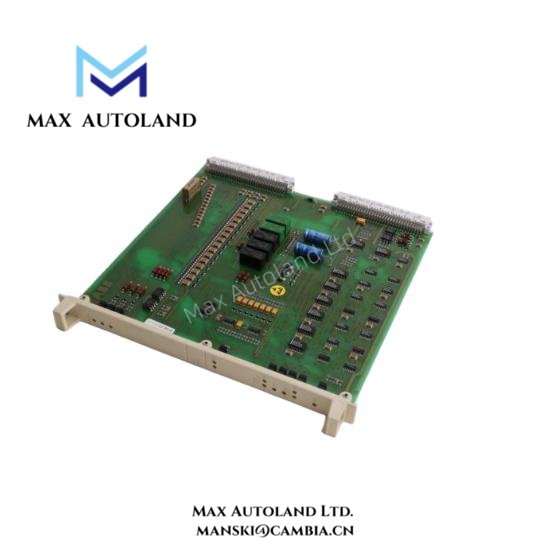

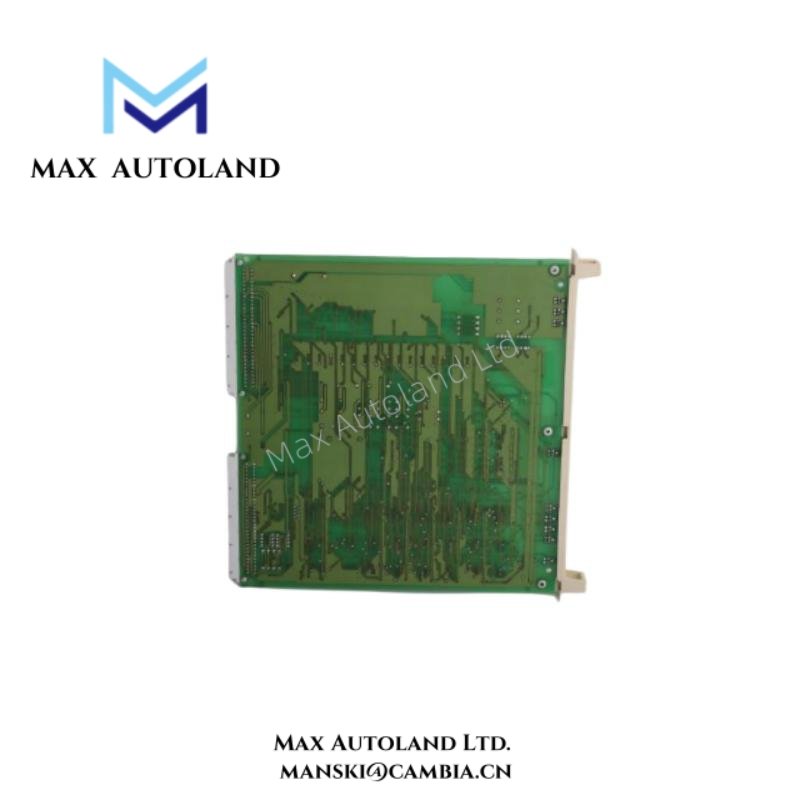

| Model | DSQC256A 3HAB2211‑1 |
| Manufacturer | ABB |
| Product Type | Remote / Sensor I/O Module for Robotics |
| Function | Distributed digital I/O and sensor interface |
| Digital Inputs (DI) | 8 channels for discrete sensor signals |
| Digital Outputs (DO) | 8 channels for actuator or logic control |
| Analog Outputs (AO) | 2 channels (supports voltage/current outputs) |
| Signal Types | ON/OFF logic for DI/DO; voltage/current for AO |
| Input Voltage | 24 V DC typical industrial automation level |
| Current Consumption | Typical 300–500 mA depending on load |
| Communication Interface | Remote I/O bus compatible with ABB robots |
| Connector Types | Industrial I/O connector blocks |
| Status Indicators | LED for module status and channel activity |
| Mounting | Cabinet DIN rail or panel mount installation |
| Housing Material | Industrial-grade metal/plastic enclosure |
| Dimensions | Approx. 190 mm × 90 mm × 50 mm |
| Weight | Approx. 0.28 kg |
| Operating Temperature | Standard industrial range (≈ 0 °C to +55 °C) |
| Environmental Rating | IP20 for indoor cabinet use |
| Compatible Controllers | ABB DSQC robot controllers and field systems |
| Application | Position sensing, condition input, feedback loops |
FAQ
Q1: Is the DSQC256A 3HAB2211-1 factory new and original?
A1: Yes, the DSQC256A is 100% ABB original, factory-sealed, and tested for quality assurance.
Q2: How fast is the shipping process?
A2: In-stock units usually ship within 3 days to 2 weeks depending on order size and logistics.
Q3: What shipping methods are available?
A3: We typically use DHL, FedEx, and UPS for worldwide delivery.
Q4: What is the return policy for the sensor module?
A4: We support returns within 30 days for quality or technical issues, ensuring risk-free purchase.
Q5: Can the DSQC256A operate in harsh factory environments?
A5: Yes, it supports 0 °C to +55 °C and IP20 protection, suitable for industrial conditions.
Q6: Which ABB robots is this module compatible with?
A6: The DSQC256A works with DSQC series ABB robots, including assembly, handling, and inspection applications.
