Overview

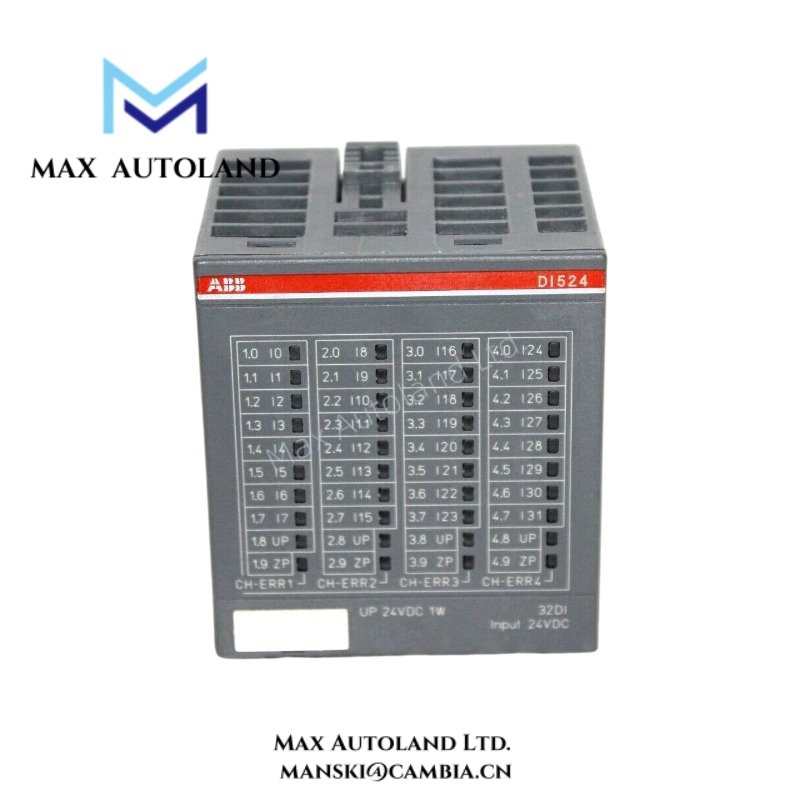

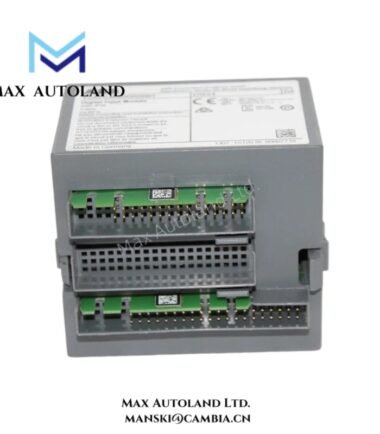

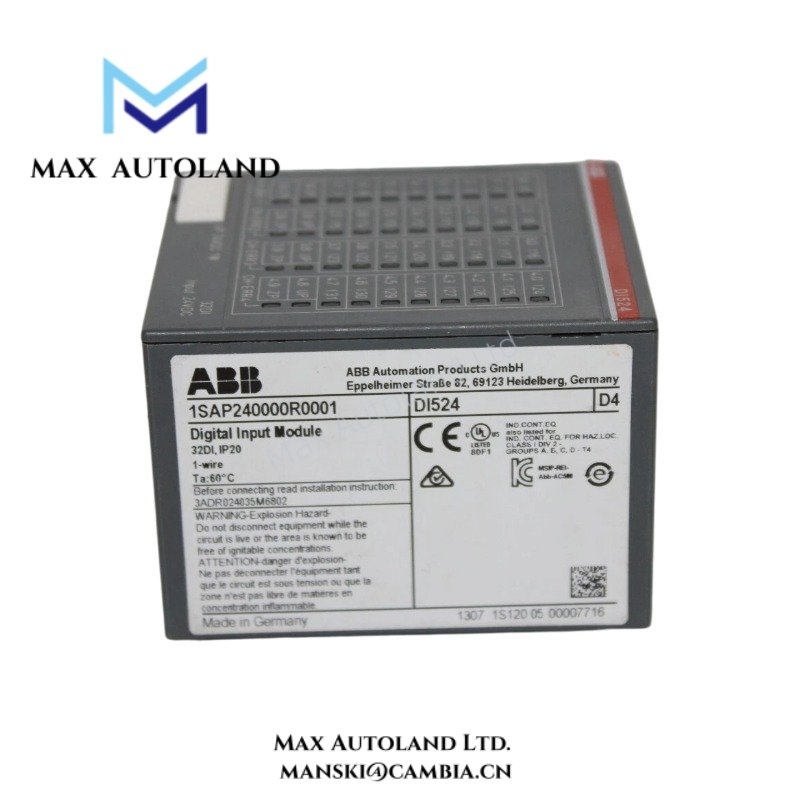

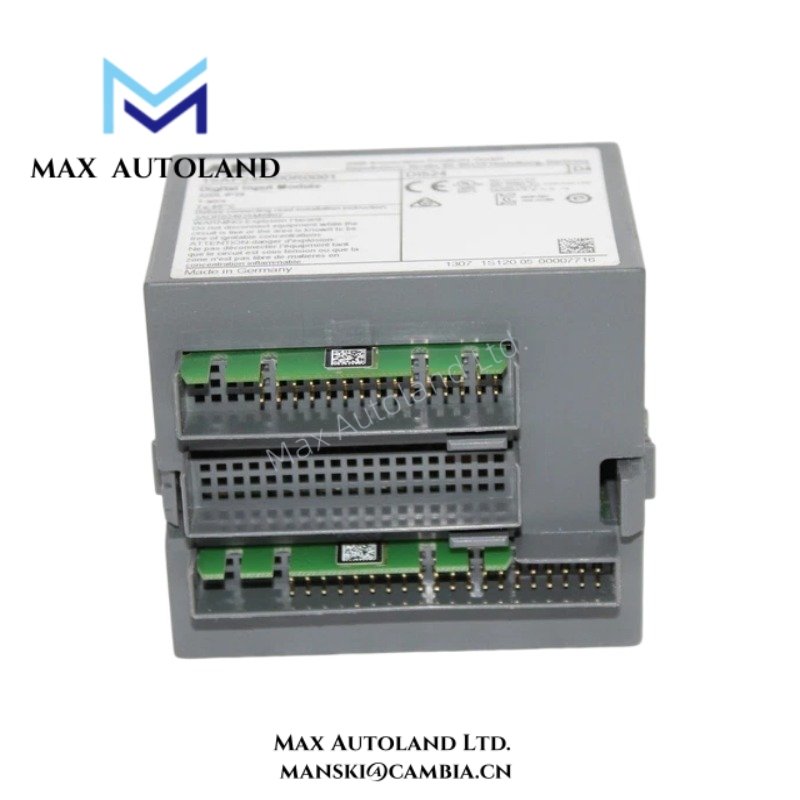

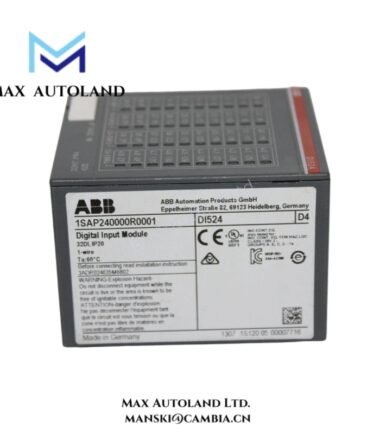

Configured for 24 VDC discrete signal acquisition in AC500 distributed I/O stations, the ABB DI524 1SAP240000R0001 (DI524 Digital Input Module) provides direct electrical conversion of field device ON/OFF states into backplane-transmitted process data for cyclic PLC evaluation within the AC500 I/O architecture.
Suffix Breakdown & Model Matrix
The available documentation defines a single ordering code without functional suffix segmentation:
| Model Variant | Description |
|---|---|
| DI524 / 1SAP240000R0001 | Digital input module for AC500 I/O system |
No additional hardware option matrix or configuration suffix structure is defined in the referenced datasheet.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DI524 |
| Brand | ABB |
| Origin | Switzerland |
| Product Series | Advant AC500 |
| Product Type | Digital Input Modules |
| Input Channels | 32 digital inputs |
| Input Voltage | 24 VDC |
| Signal Type | DC digital input |
| Input Current | Not explicitly specified in available documentation |
| Backplane Communication | AC500 system bus |
| Mounting Method | DIN rail mounting |
| Protection Rating | IP20 |
| Weight | Not explicitly specified in available documentation |
| Dimensions | Not explicitly specified in available documentation |
| Operating Temp | Not explicitly specified in available documentation |
| Power Consumption | Not explicitly specified in available documentation |
Backplane Bus Communication and I/O Density Scaling
The DI524 processes 32-channel digital input signals and transfers the resulting process image through the AC500 backplane bus during each controller scan cycle. As a result, the controller receives synchronized input state updates without requiring external communication wiring at the module level. Furthermore, the architecture increases I/O density per station slot, allowing compact cabinet design while maintaining deterministic cyclic data exchange between field inputs and CPU process image. In addition, the module integrates into the AC500 modular I/O structure without modifying the system-level communication topology.
Frequently Asked Questions
Q: Does the DI524 require an external communication interface for PLC data exchange?
A: No. The module communicates directly through the AC500 backplane once installed in a compatible I/O station.
Q: Can the DI524 process standard 24 VDC sensor signals?
A: Yes. The module accepts 24 VDC digital input signals. However, field wiring polarity, signal level stability, and electrical compatibility must be verified before commissioning.
Q: Does the module support module-level firmware updates?
A: Firmware behavior is governed by the AC500 system platform. Any update procedure depends on the controller and station configuration rather than standalone module execution.
Field Installation Guidelines
- First, install the DI524 into a compatible AC500 I/O station and ensure correct mechanical locking.
- Next, verify terminal labeling before connecting any field wiring to avoid channel misalignment.
- Route digital input cables separately from power conductors, motor feeders, and VFD output lines to reduce electrical interference.
- Additionally, maintain shield continuity and follow plant grounding practices for all signal cables.
- During wiring, ensure all conductors are fully seated and mechanically secured in terminals.
- After installation, perform continuity checks on all input circuits prior to energization.
- Then, apply system power and observe controller diagnostics for channel status validation.
- Finally, verify correct signal switching behavior during commissioning tests.
