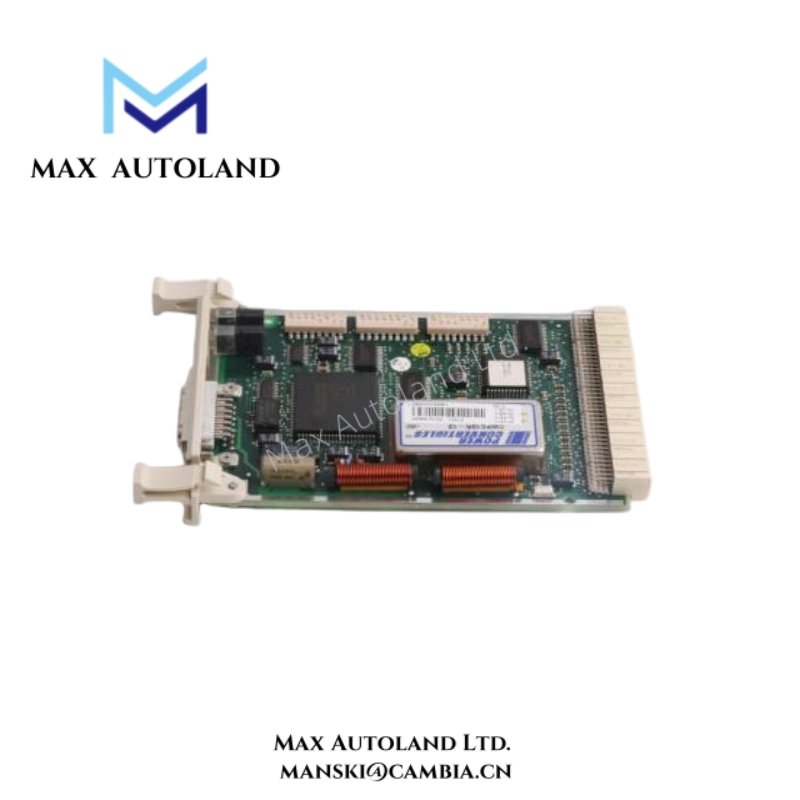

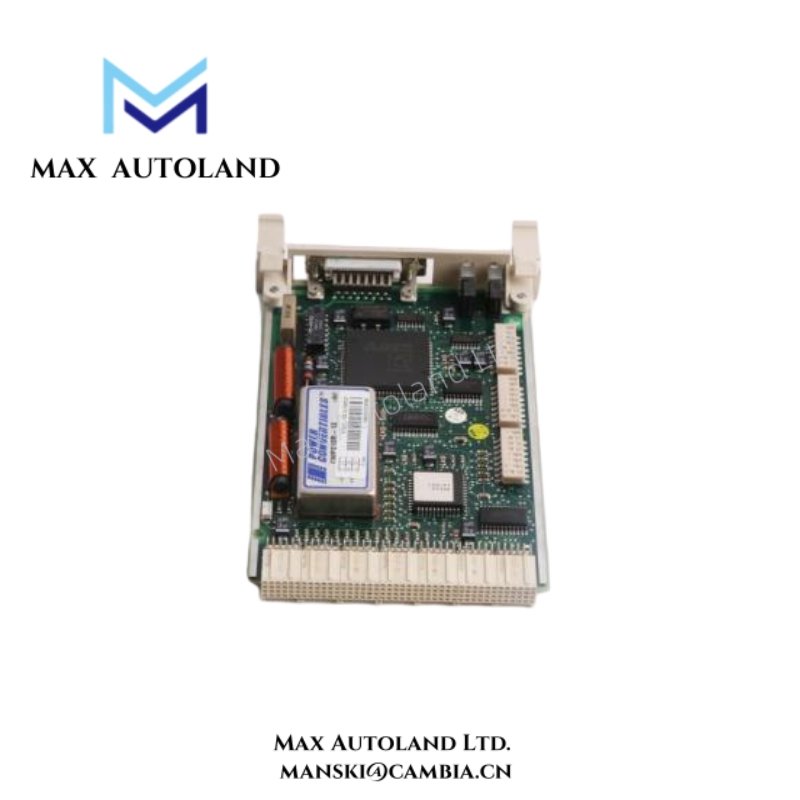

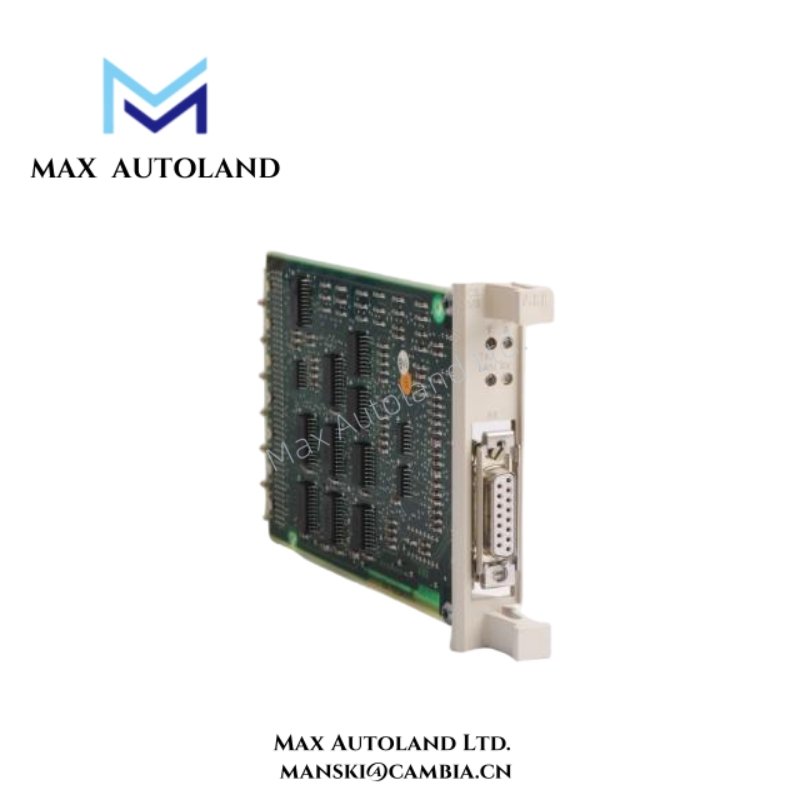

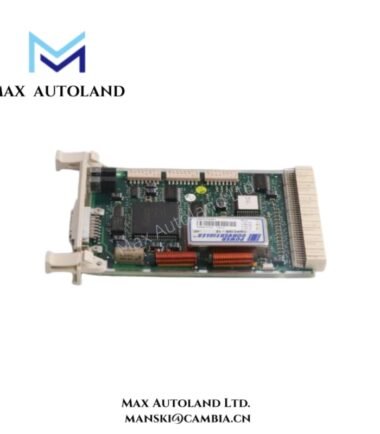

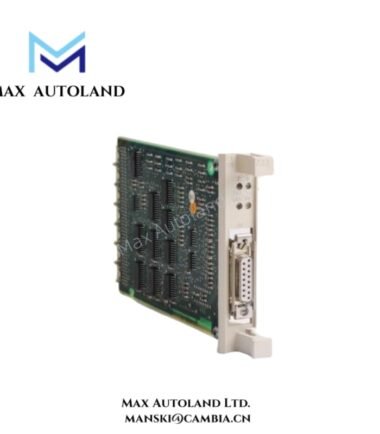

Overview
Specification
| Parameter | Value |
|---|---|
| Product Model | CS513 |
| Part Number | 3BSE000435R1 |
| Function | Communications Module |
| System Platform | ABB Advant OCS |
| Interface Type | Serial and network communication |
| Supported Protocols | MODBUS, RS232, Advant protocols |
| Max Data Rate | 115.2 kbps (RS232), depends on protocol |
| Connection Type | DB9, backplane connection |
| Diagnostics | LED indicators for status and activity |
| Backplane Interface | S100 / Advant OCS backplane |
| Electrical Isolation | Galvanic isolation included |
| Operating Voltage | Powered via OCS rack |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –25°C to +70°C |
| Humidity Level | 5–95% non-condensing |
| Form Factor | Plug-in submodule |
| Compliance | CE, industrial communication standards |
| Installation | Tool-free insertion into Advant racks |
| Maintenance Requirements | Minimal, solid-state design ensures longevity |
FAQ
Q1: What is the main function of the CS513 module?
A1: It provides reliable communication between Advant OCS controllers and peripheral devices.
Q2: Does it support multiple communication protocols?
A2: Yes. It supports MODBUS, RS232, and standard Advant protocols.
Q3: Is the module easy to install?
A3: Yes. It fits directly into Advant racks with tool-free insertion.
Q4: Does it provide diagnostics?
A4: Yes. LED indicators display communication status and activity.
Q5: Can it operate in harsh industrial environments?
A5: Yes. It is designed for reliable performance under extreme conditions.
