Overview
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |

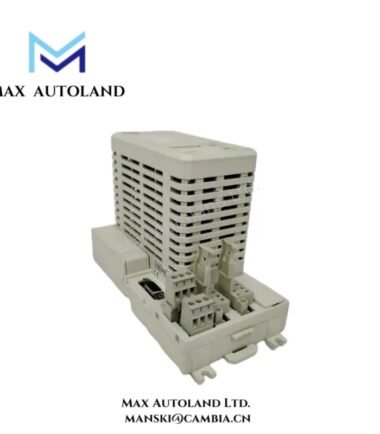

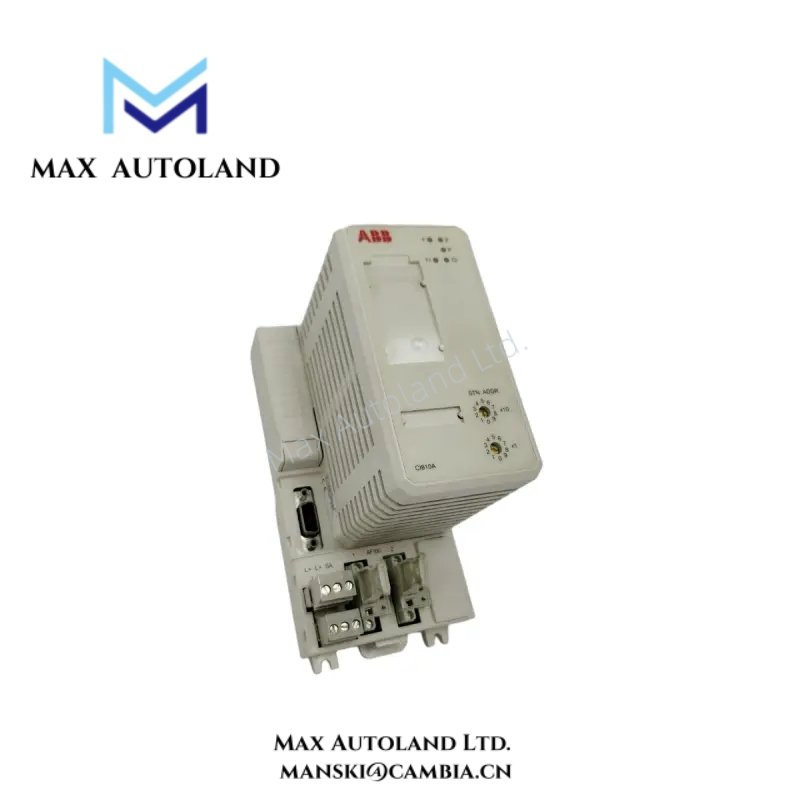

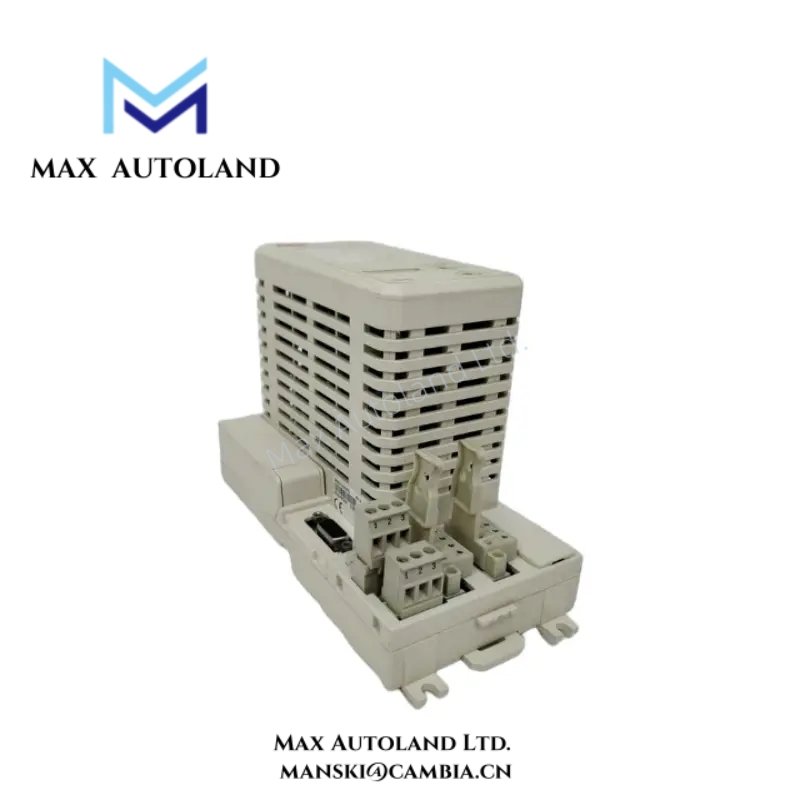

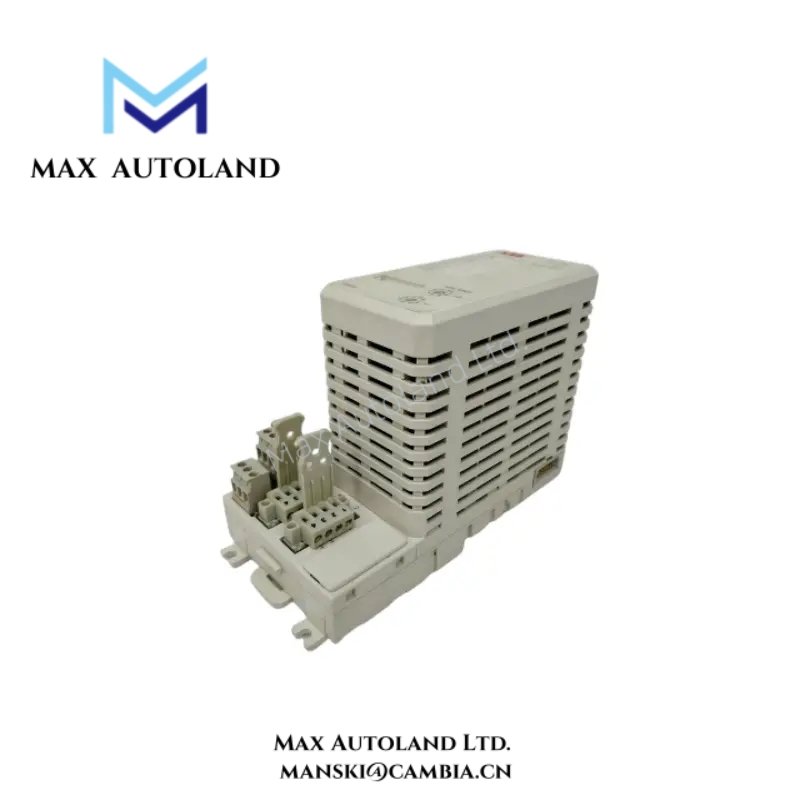

| Model / Part Number | CI810A / 3BSE013262R1 |
| Module Type | Field Communication Interface |
| Compatible Systems | Advant OCS, 800xA |
| Supported Field Devices | AF100 Series |
| Communication Protocols | PROFIBUS PA, FOUNDATION Fieldbus, HART |
| Channels | Single-channel interface |
| Isolation | Galvanic isolation between field and control systems |
| Power Supply | 24 VDC ±10% |
| Current Consumption | Typ. 100 mA |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | −40°C to 70°C |
| Relative Humidity | 5–95%, non-condensing |
| Diagnostics | Status LEDs and remote monitoring support |
| Mounting | ABB standard rack installation |
| Dimensions (W×D×H) | Approx. 45 mm × 102 mm × 119 mm |
| Weight | Approx. 0.25 kg |
| Certifications | CE, UL, ATEX Zone 2 (optional) |
FAQ
Q1: Which field devices are compatible with CI810A?
The module is designed for ABB AF100 field devices and supports multiple protocols for flexible integration.
Q2: Can the CI810A handle HART communications?
Yes, it supports HART, FOUNDATION Fieldbus, and PROFIBUS PA communication protocols.
Q3: What are the operating conditions for this module?
It operates reliably between 0°C and 55°C with relative humidity from 5–95% non-condensing.
Q4: How is the module mounted in control systems?
The CI810A installs easily in standard ABB racks using its compact modular design.
Q5: What safety certifications does it hold?
The module carries CE and UL certification, with optional ATEX Zone 2 approval for hazardous areas.
