Overview
Specification
| Parameter | Value |
|---|---|

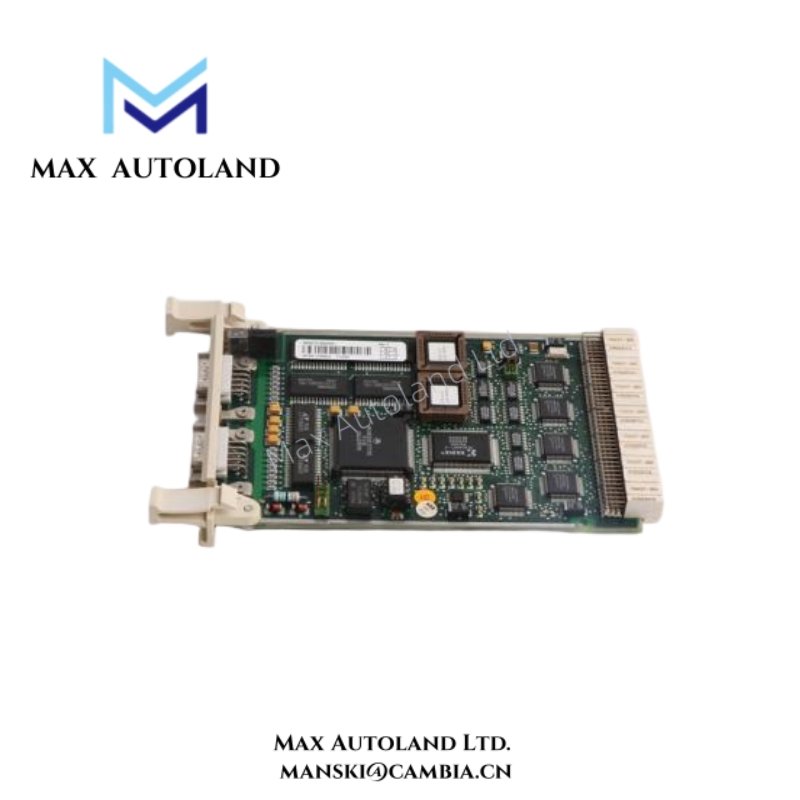

| Product Model | CI531 |
| Part Number | 3BSE003825R1 |
| Function | RS232 Interface Submodule |
| System Platform | ABB Advant OCS |
| Interface Type | RS232 serial communication |
| Supported Protocols | Standard serial protocols |
| Max Data Rate | 115.2 kbps |
| Connection Type | DB9 or equivalent serial connector |
| Diagnostics | LED indicators for link and activity |
| Backplane Interface | S100 / Advant OCS backplane |
| Electrical Isolation | Galvanic isolation included |
| Operating Voltage | Powered via OCS rack |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –25°C to +70°C |
| Humidity Level | 5–95% non-condensing |
| Form Factor | Plug-in submodule |
| Compliance | CE, industrial communication standards |
| Installation | Tool-free insertion into Advant racks |
| Maintenance Requirements | Minimal, solid-state design ensures longevity |
FAQ
A1: It provides RS232 serial communication for Advant OCS submodules.
Q2: Does it require external power?
A2: No. It is powered directly from the Advant OCS backplane.
Q3: Can it connect legacy RS232 devices to modern Advant systems?
A3: Yes. It ensures seamless integration with both legacy and current devices.
Q4: Are diagnostics available for troubleshooting?
A4: Yes. LED indicators show communication status and activity.
Q5: Is it suitable for industrial environments?
A5: Yes. Its robust construction supports long-term operation under harsh conditions.
