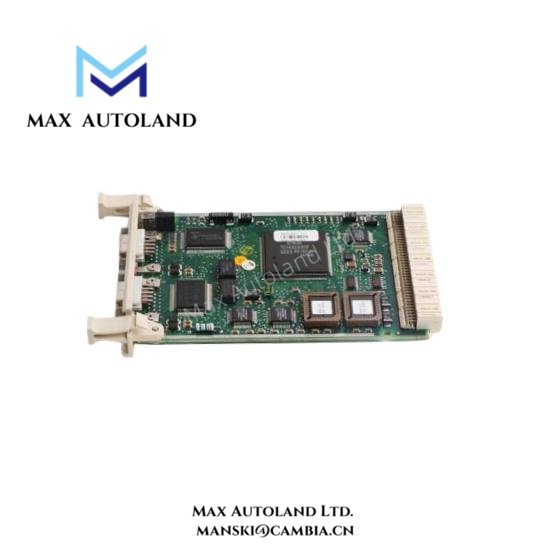

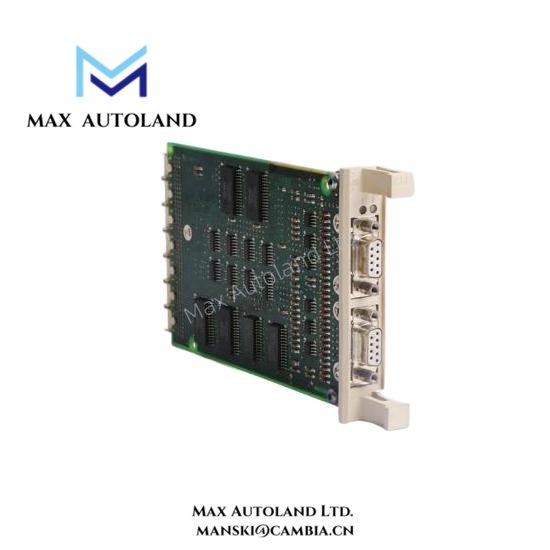

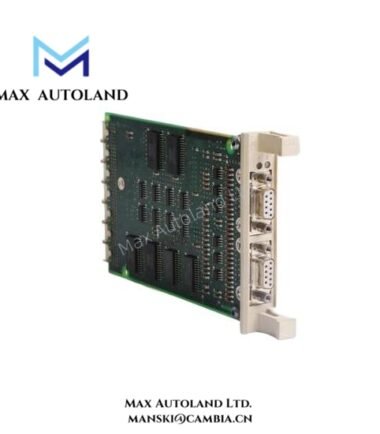

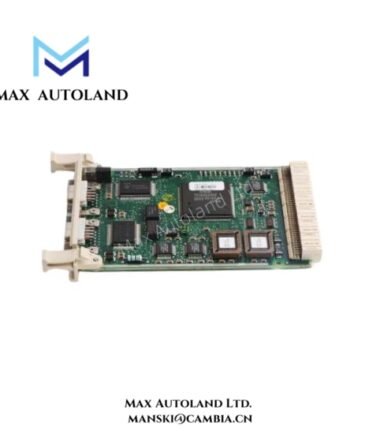

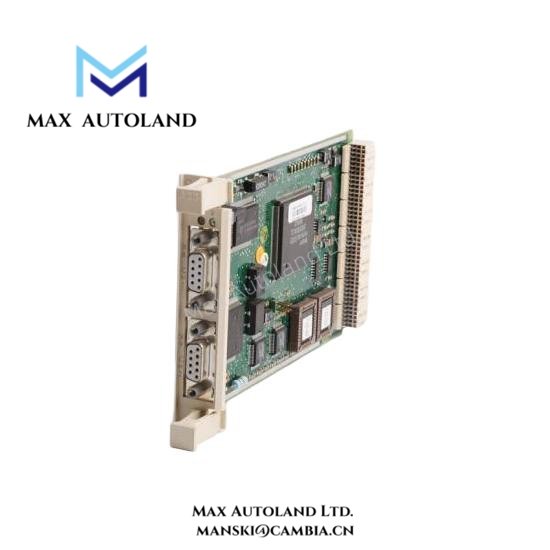

Overview
It connects controller backplanes with distributed I/O over optical fiber, ensuring deterministic and noise-immune data transfer.
Moreover, ABB designs this module for continuous industrial operation in power, process, and manufacturing environments.
Specification
| Category | Specification |
|---|---|
| Model | CI520V1 3BSE012869R1 |
| Manufacturer | ABB |
| Product Type | AF100 Interface Module |
| Series | Advant Controller Communication Modules |
| Supported Controller System | ABB Advant Controller 400 Series |
| Fieldbus Type | AF100 (Advant Fieldbus 100) |
| Communication Medium | Optical Fiber |
| Number of Communication Channels | 1 × AF100 optical channel |
| Data Transmission Method | Deterministic cyclic real-time communication |
| Maximum Communication Distance | Up to 2 km per optical segment (depending on fiber type) |
| Data Rate | Approx. 5 Mbps |
| Interface Type | Optical transmitter and receiver |
| Optical Connector Type | ABB proprietary AF100 optical interface |
| Isolation Type | Optical galvanic isolation |
| Power Supply | Supplied via Advant controller backplane |
| Rated Supply Voltage | 5 V DC (internal system supply) |
| Power Consumption | Approx. 3 W |
| Energy Storage Components | None |
| Module Slot Type | Standard Advant controller rack slot |
| Hot Swap Support | No |
| Configuration Method | Controller system configuration software |
| Diagnostics | Status LEDs for communication and module health |
| LED Indicators | Power, AF100 communication status, fault indication |
| Dimensions (H × W × D) | Approx. 233 × 120 × 60 mm |
| Weight | Approx. 0.8 kg |
| Enclosure Material | Industrial-grade plastic housing |
| Mounting Method | Plug-in module for Advant rack |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −25 °C to +70 °C |
| Relative Humidity | Up to 95%, non-condensing |
| Vibration Resistance | Compliant with industrial control standards |
| EMC Compliance | Designed for high EMI industrial environments |
| Typical Applications | Power plants, oil & gas, chemical processing, large industrial automation systems |
FAQ
Q1: Is the CI520V1 3BSE012869R1 a new original ABB product?
A1: Yes, this module is brand-new, original ABB equipment supplied directly from authorized sources.
Q2: Do you have the CI520V1 3BSE012869R1 in stock?
A2: Yes, we maintain ready stock to ensure fast and reliable order processing.
Q3: How fast can you ship after ordering?
A3: We ship within 3 days to 2 weeks, depending on the order quantity and preparation requirements.
Q4: Which logistics services do you use?
A4: We usually arrange delivery through DHL and other major international courier services.
Q5: Do you support returns if quality issues occur?
A5: Yes, we support 30-day returns if any quality-related issue occurs.
Q6: Does the CI520V1 3BSE012869R1 store energy internally?
A6: No, this interface module does not include any internal energy storage components.
