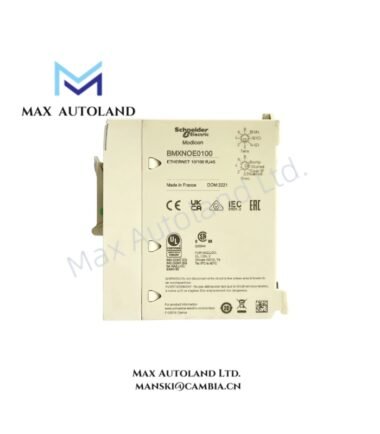

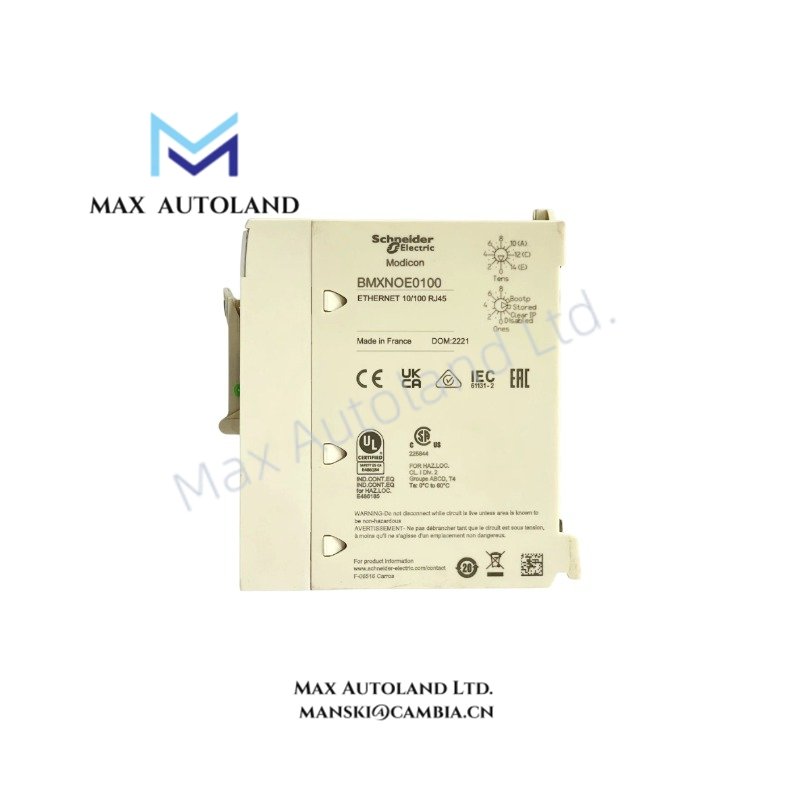

Configured for Ethernet TCP/IP communication handling in Modicon M340 automation platform, the Schneider Electric BMXNOE0100 (BMXNOE0100 Ethernet TCP/IP network module) provides direct physical/electrical execution for Modbus TCP messaging, I/O scanning, and network service exchange via a 10/100 Mbit/s RJ45 interface within Modicon M340 system backplane architecture.
Suffix Breakdown & Model Matrix
No structured suffix segmentation is defined for BMXNOE0100 in the provided documentation. The designation is treated as a single fixed-order module identifier without documented variant decoding.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | BMXNOE0100 |
| Brand | Schneider Electric |
| Origin | Not specified |
| Weight | 0.2 kg (product) |
| Dimensions | 5.1 cm x 11.0 cm x 11.5 cm (package) |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | 90 mA at 24 VDC |
| Communication Interface | Ethernet 10BASE-T/100BASE-TX RJ45 |
| Protocol Support | Modbus TCP, I/O scanning, Global Data |
| Memory Support | Flash memory card (BMXRWSC016M) |
Modicon M340 Ethernet Backplane Integration Characteristics

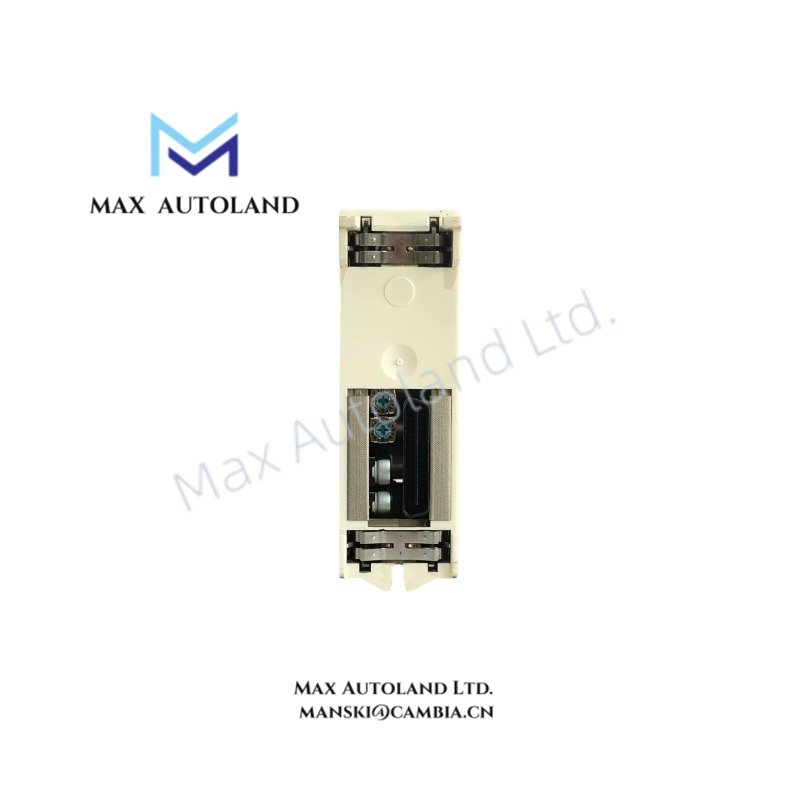

Within Schneider Electric Modicon M340 architecture, the module interfaces with the rack backplane for internal power distribution and cyclic data exchange. Ethernet stack execution includes deterministic I/O scanning, SNMP network supervision, and FDR (Fast Device Replacement) server behavior. Firmware and configuration data are stored via removable flash memory card, supporting application retention and web server activation. Network services operate concurrently over a shared Ethernet physical layer with bandwidth management and diagnostic signaling.
Frequently Asked Questions (FAQ)
Q: Does BMXNOE0100 support hot-swap removal under power?
A: The module is designed for rack insertion within Modicon M340 backplane architecture; removal under power is not intended for communication continuity and may trigger system fault signaling via ERR LED.
Q: What is the function of the flash memory card in this module?
A: The flash memory card stores application data and enables activation of the embedded web server, supporting configuration persistence and system recovery behavior.
Q: How is Ethernet network status indicated at hardware level?

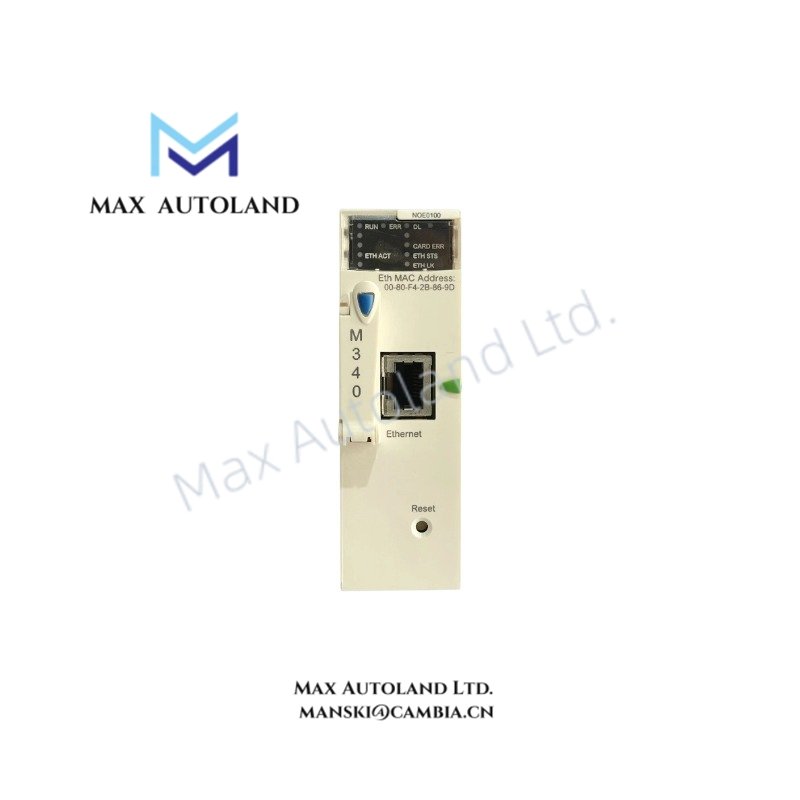

A: Status is indicated via dedicated LEDs for ETH ACT, ETH STS, ETH 100, CARD ERR, RUN, and ERR, reflecting link activity, speed negotiation, and fault states.
Field Installation Guidelines
The module shall be inserted into a compatible Modicon M340 rack slot with backplane alignment ensured before mechanical locking. RJ45 cabling must comply with standard Ethernet twisted pair routing practices, maintaining separation from high-voltage conductors to reduce electromagnetic coupling. Shield termination should be referenced to cabinet ground at a single-point earth scheme. Flash memory card insertion must occur with power removed to prevent data corruption during initialization. Maintain ventilation clearance within enclosure limits to keep ambient temperature within 0 to 60 deg C range.
